- Name：

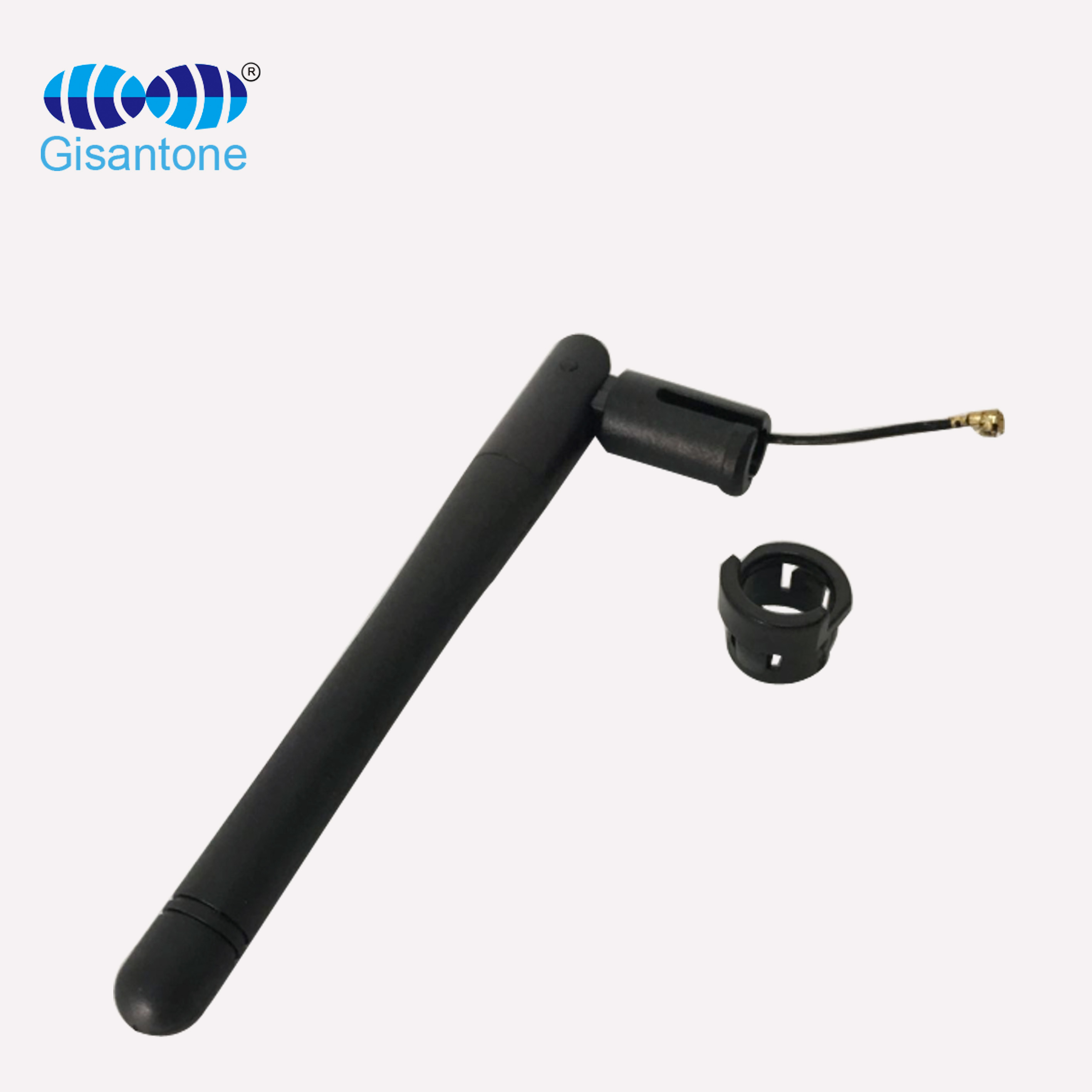

2.4G antenna with ipex connector
- Model No.：
G15544B
- Frequency Range ：
2400-2500MHz
- Gain：
2.15DBI
- Cable Length：
20CM 1.13 cable

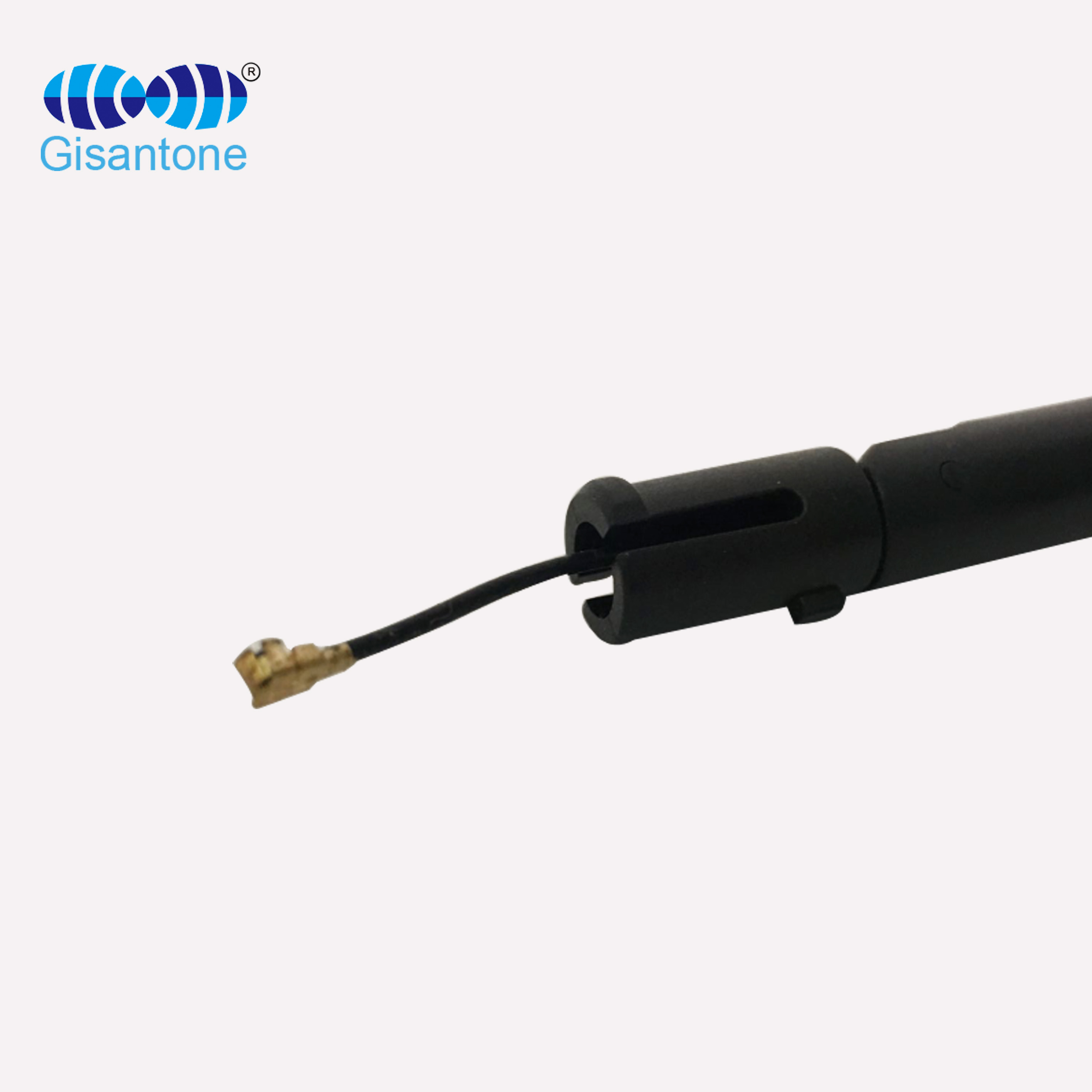

- Connector：
UFL
|
Electrical Specifications |
|
|
Model No. |
G15544B |
|
Frequency Range |
2400-2500MHz |
|
Gain |
2.15Dbi |
|
VSWR |
≤1.5 |
|
Input Impedance |
50Ω |
|
Polarization |
Vertical |
|
Horizontal Half Power Angle |
360° |
|
Max Input Power |
50W |
|
Lightning Protection |
DC Ground |
|
Mechanical Specifications |
|
|
Connector Type |
UFL |
|
Cable Type |
1.13 |
|
Cable Length |
20CM |
|
Working Temperature |
-40℃~﹢65℃ |
|
Antenna Weight |
20g |
|
Size |
Φ10 x (105±5) (mm) |
|
Antenna color |
Black |

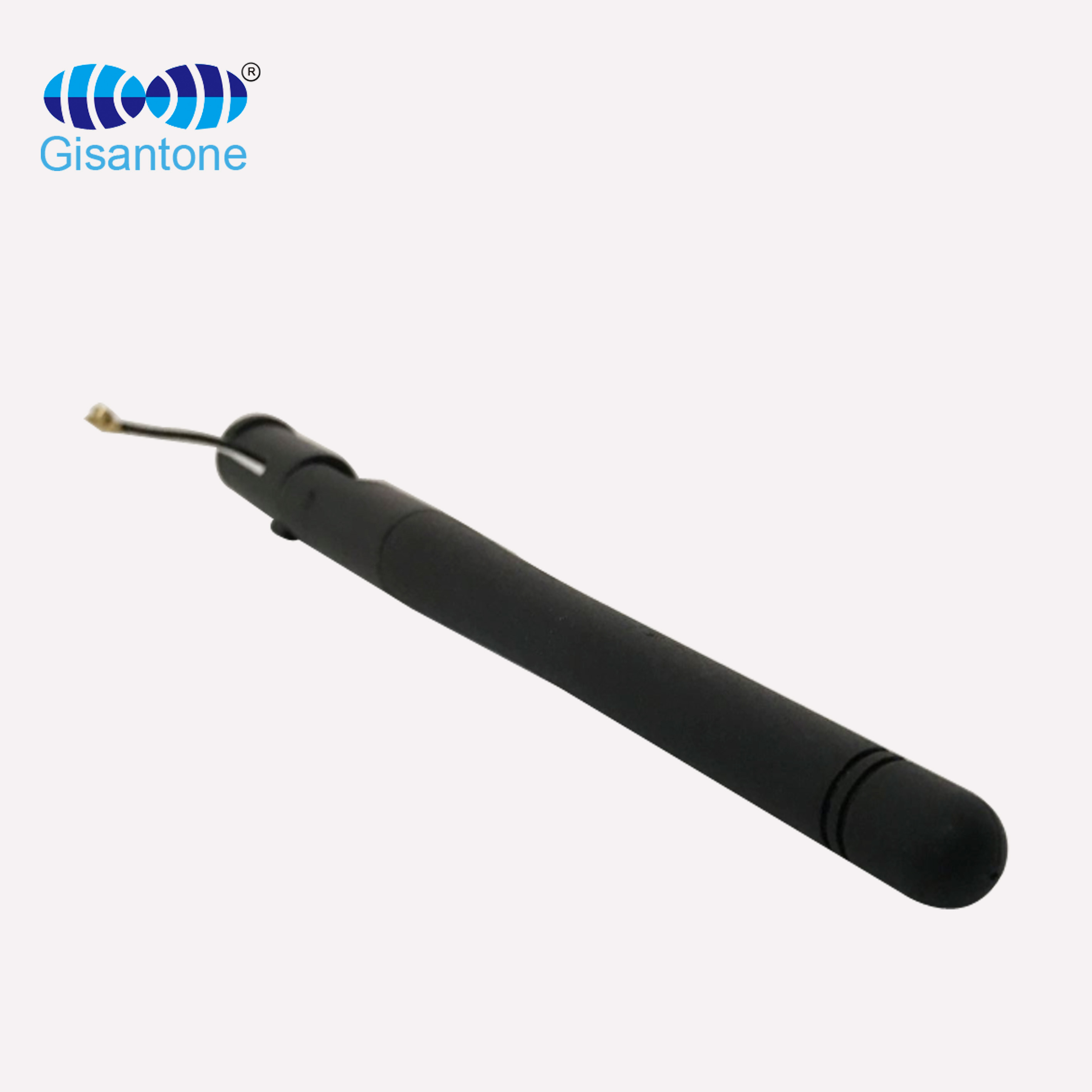

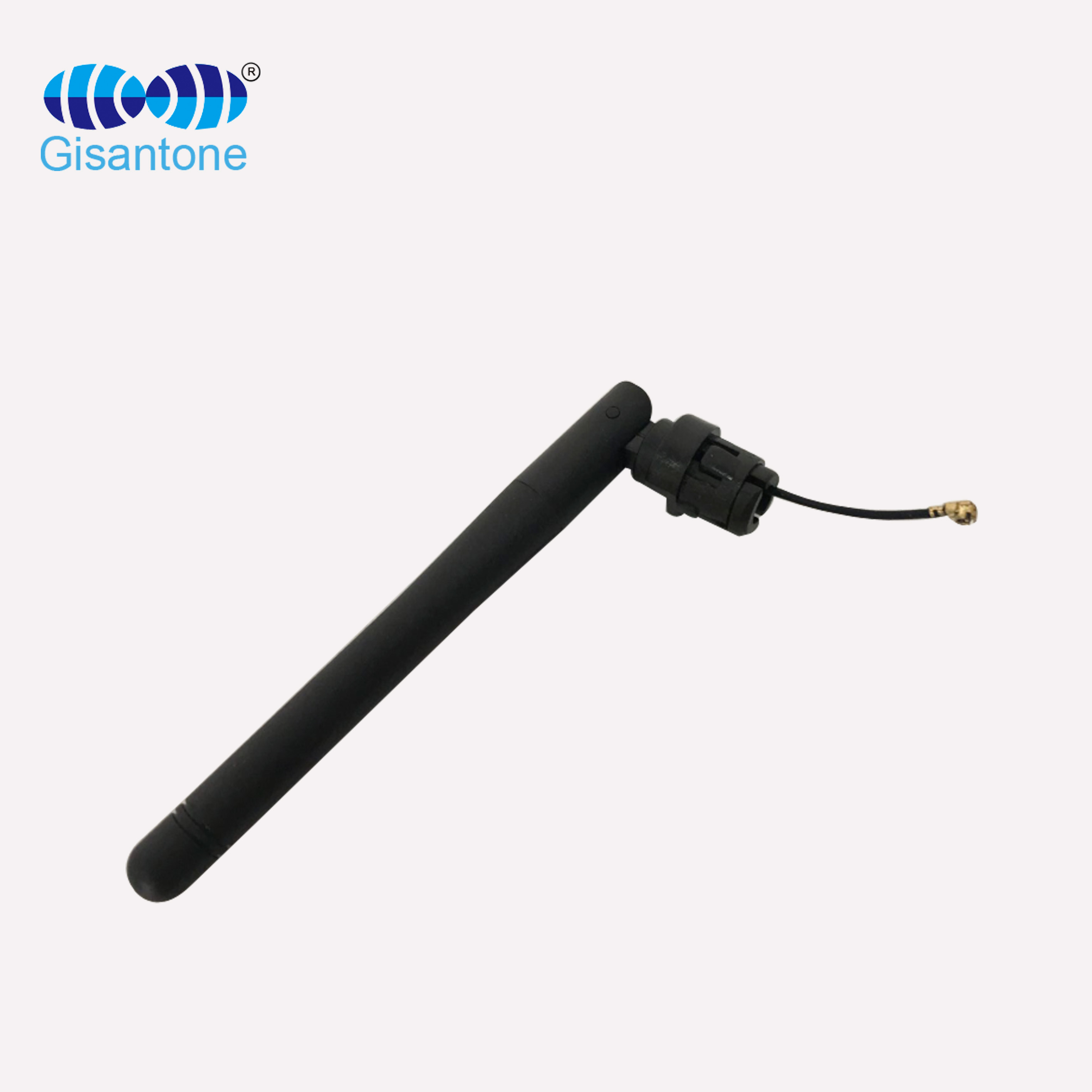

2.4G antenna with ipex connector
