- Name：

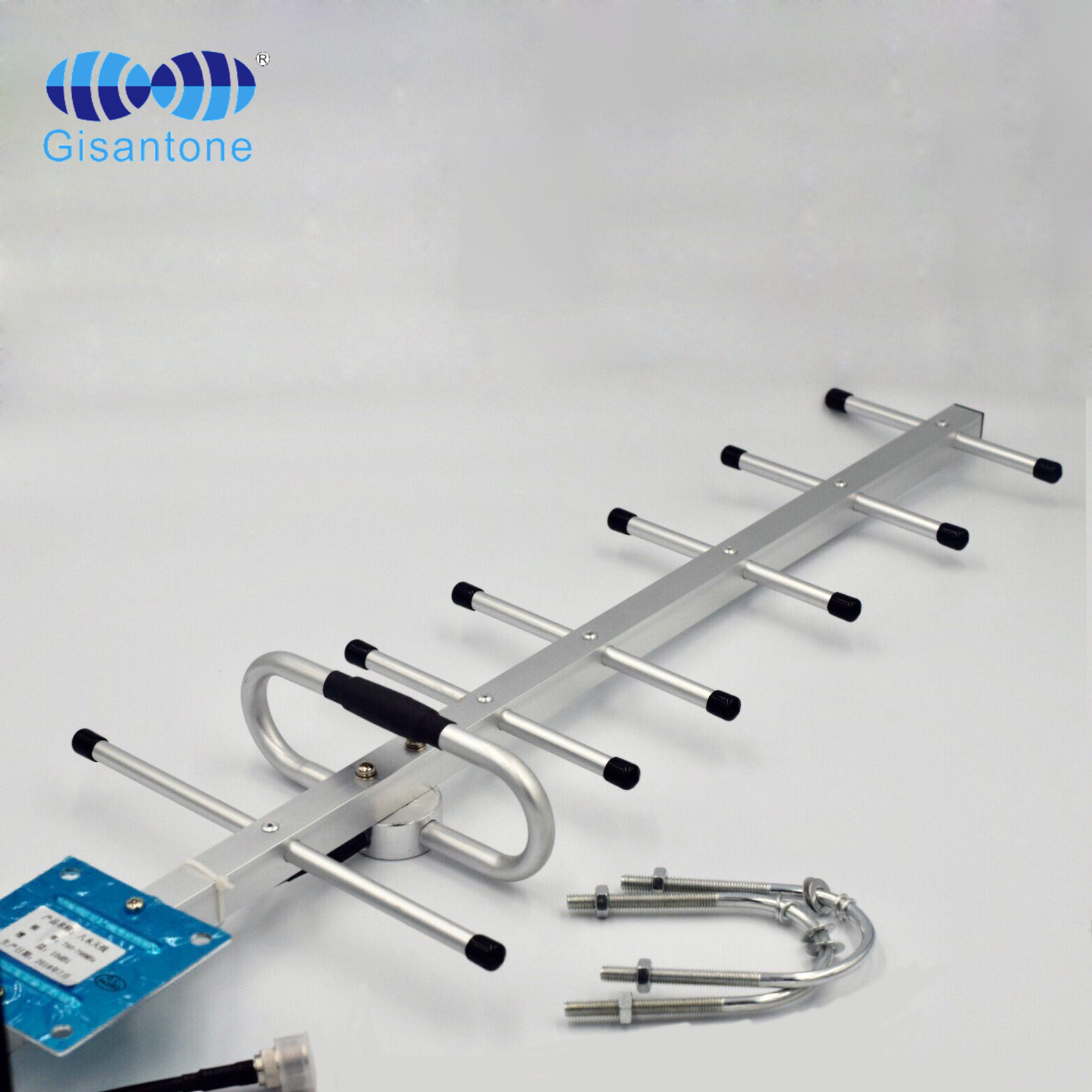

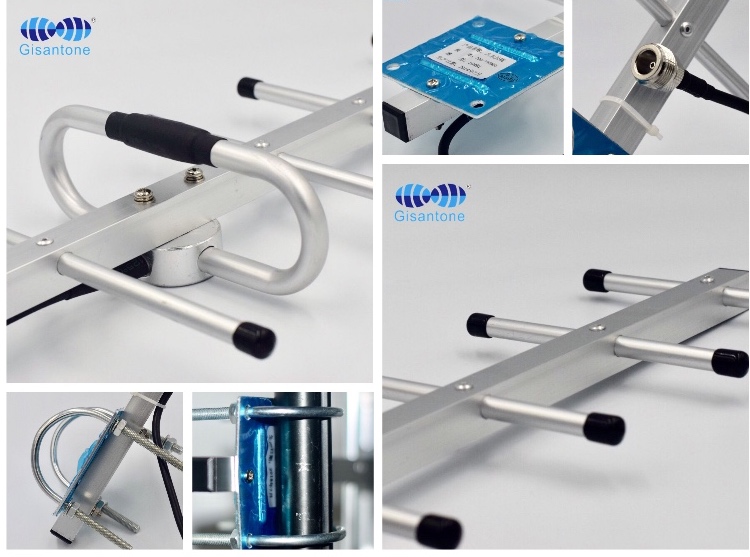

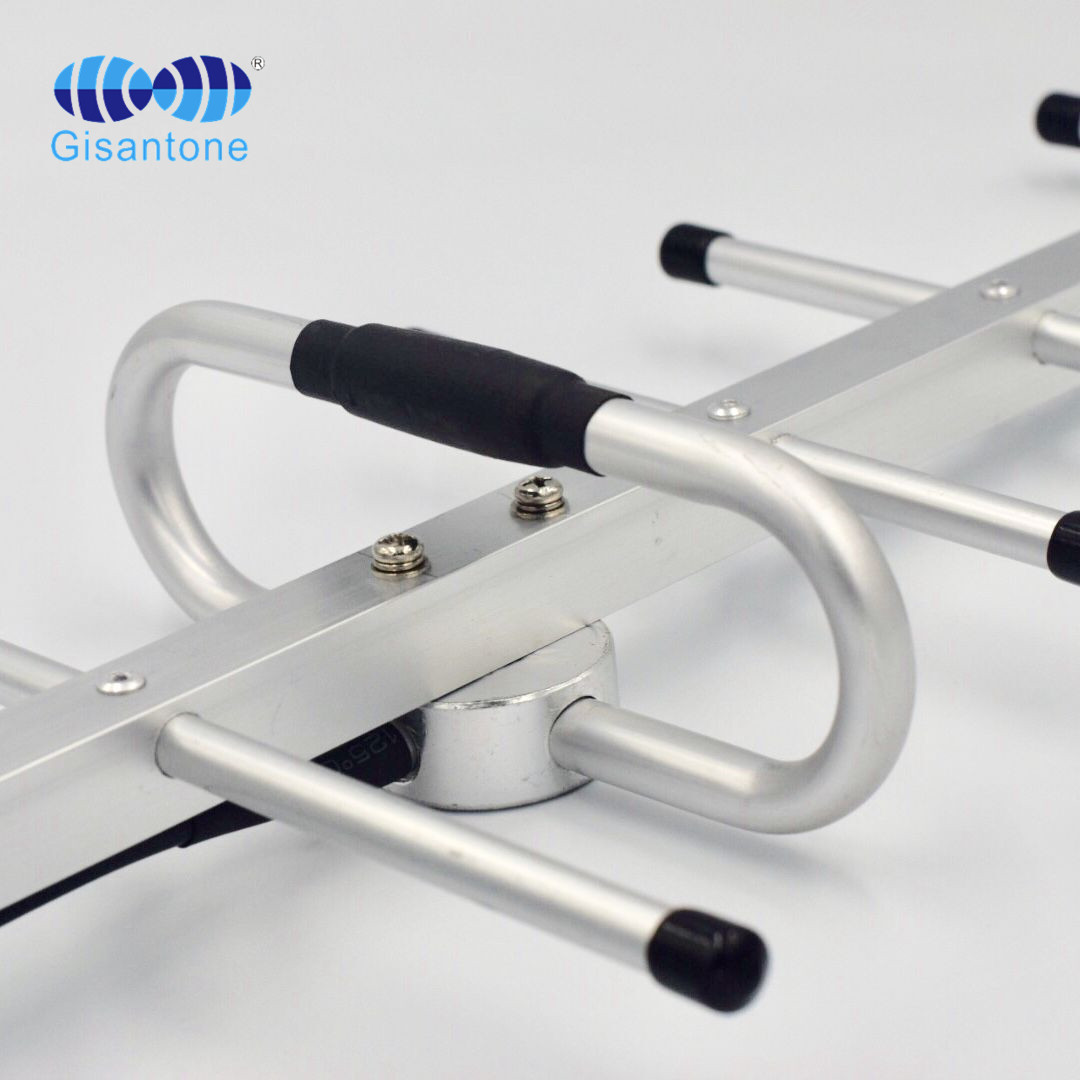

790-798MHz 10DBI Yagi antenna
- Model No.：
G13207N
- Frequency Range ：
790-798MHz
- Gain：
10DBI
- Cable Length：
30CM RG58U
- Connector：
N female
|
Electrical Specifications |
|
|
Model No. |
G13207N |
|
Frequency Range |
790-798MHz |
|
Gain |
10Dbi |
|
VSWR |
≤1.5 |
|
Input Impedance |
50Ω |
|
Polarization |
Vertical &Horizontal |
|
Front to Back Ratio |
≥15dB |
|
Horizontal Half Power Angle |
50° |
|
Vertical Half Power Angle |
50° |
|
Max Input Power |
50W |
|
Lightning Protection |
DC Ground |
|
Mechanical Specifications |
|
|
Connector Type |
N-female |
|
Working Temperature |
-40℃~﹢65℃ |
|
Cable Type |
RG58U black |
|
Cable Length |
0.3M |
|
Antenna Weight |
0.4kg |
|

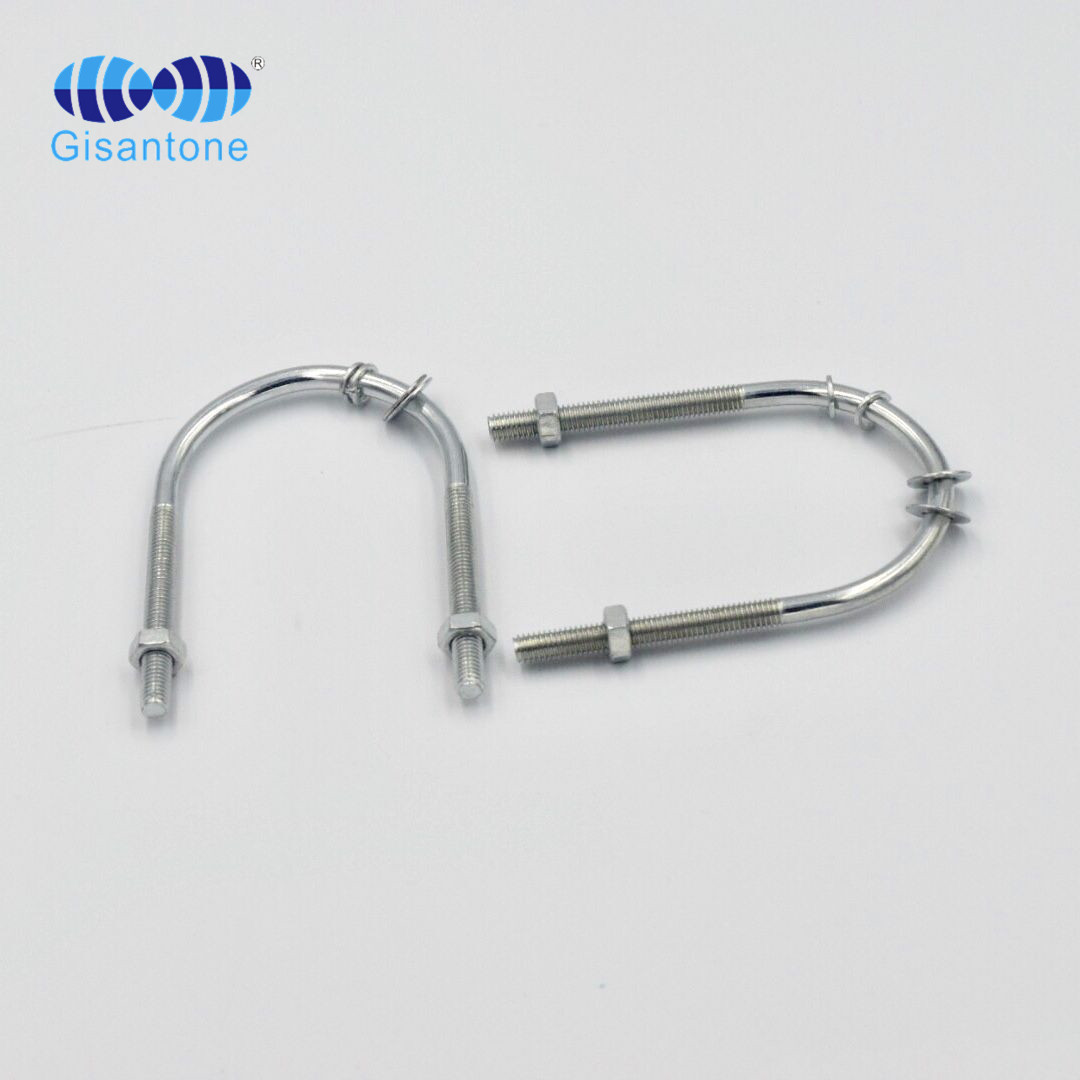

Pole Diameter |
Φ35~φ55mm |
|
Size |
595*205*55mm |
|
Rated Wind Velocity |
210km/h |
|

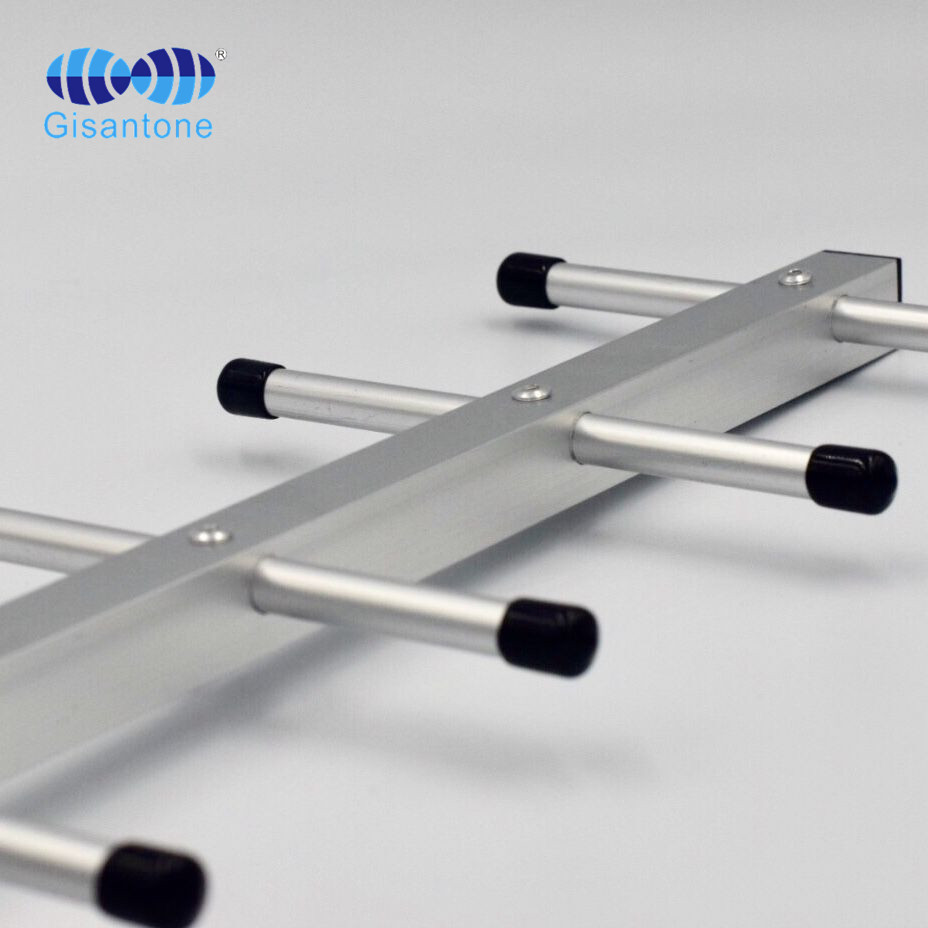

Radiating Element |
7 |
|
Package Size |
630*430*310mm/20pcs |
|
Package Weight |
9.86KG |
790-798MHz 10DBI Yagi antenna
