- Name：

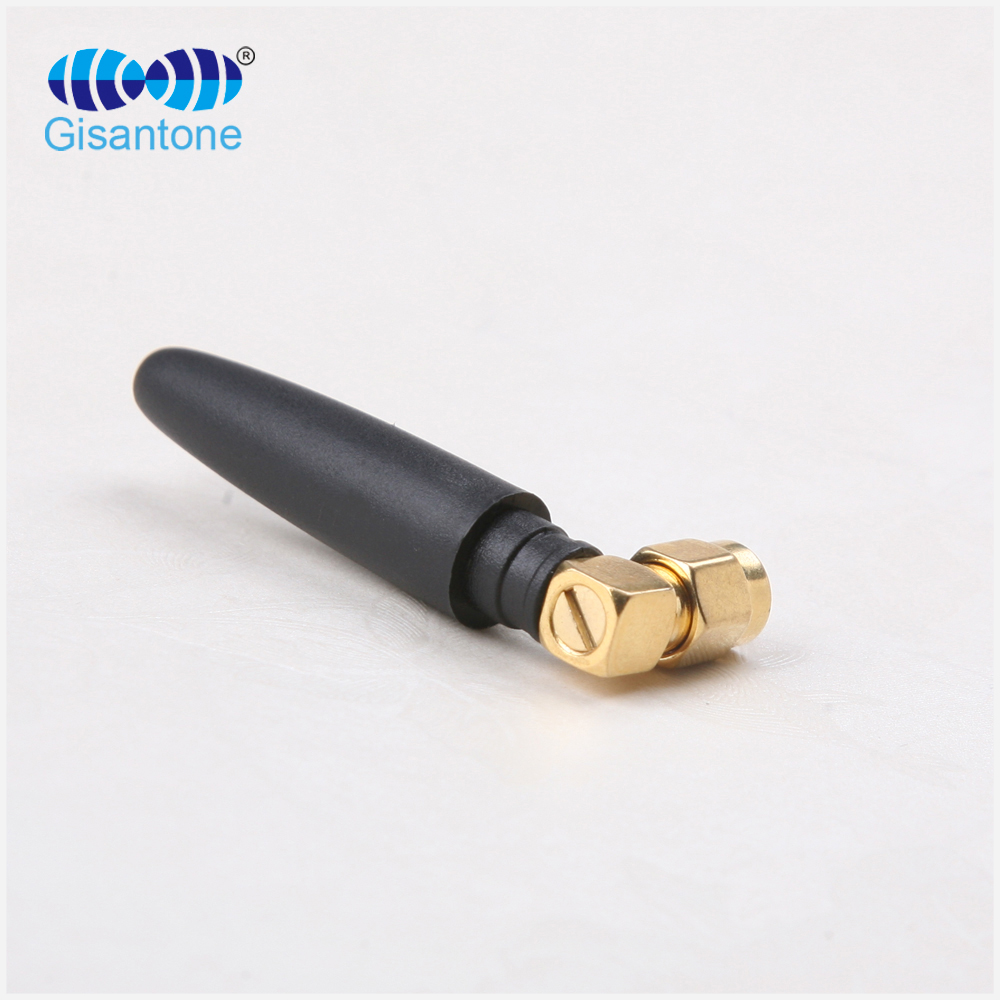

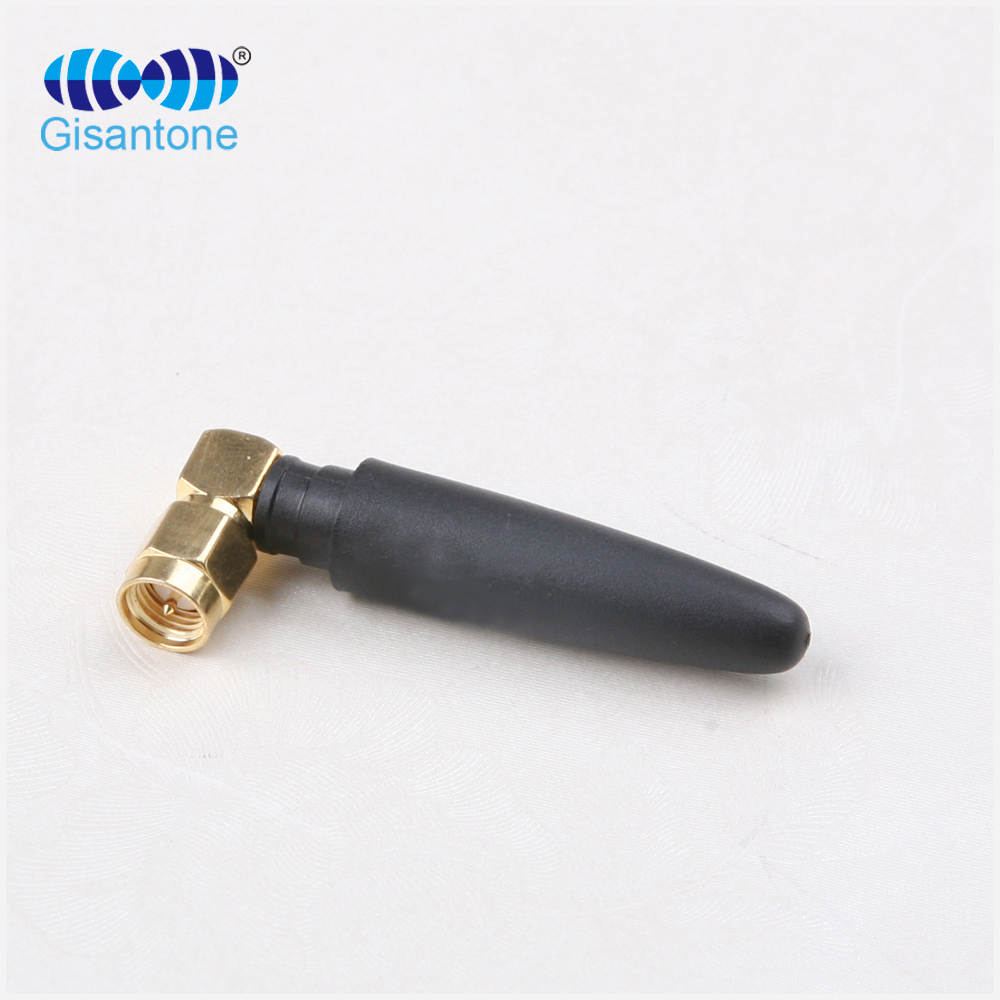

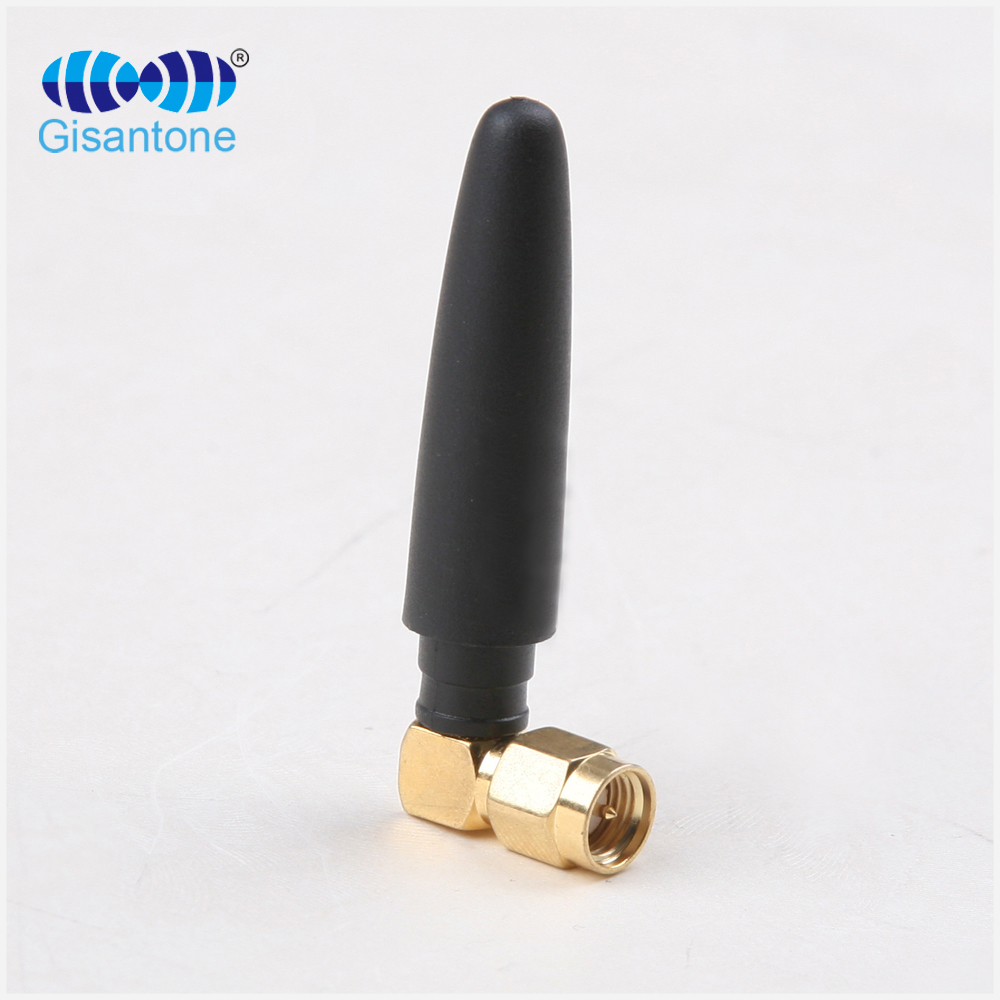

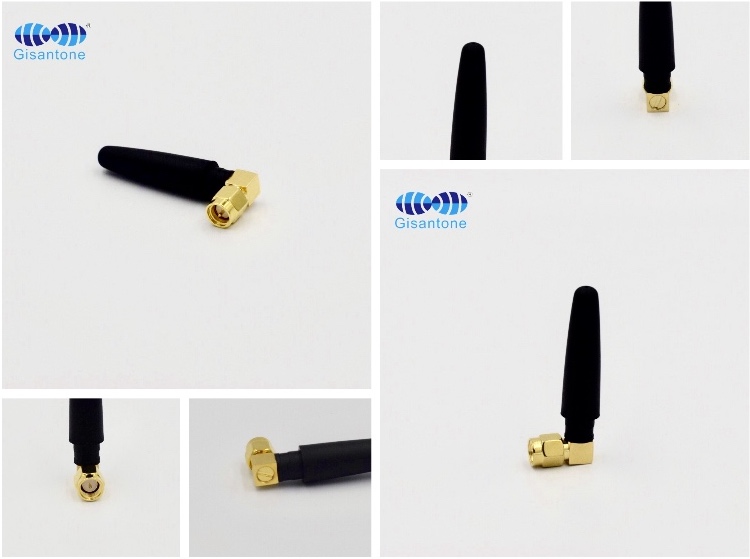

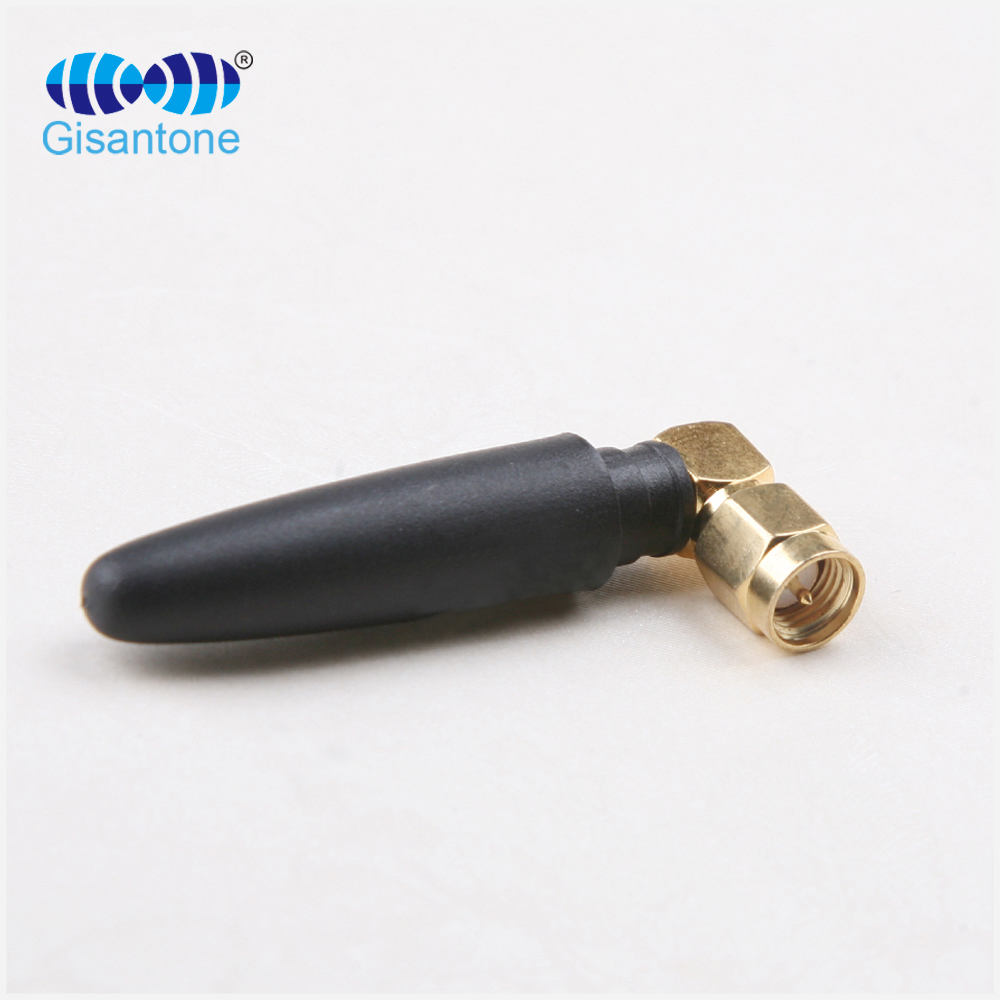

791-960MHz 1.5DBi rubber antenna
- Model No.：
G15533F
- Frequency Range ：
791-960MHz
- Gain：
1.5DBI
- Cable Length：
/
- Connector：
SMA male
|
Electrical Specifications |
|
|
Model No. |
G15533F |
|
Frequency Range |
791-960MHz |
|
Gain |
1.5Dbi |
|
VSWR |
≤3.0 |
|
Input Impedance |
50Ω |
|
Polarization |
Vertical |
|
Horizontal Half Power Angle |
360° |
|
Max Input Power |
20W |
|
Lightning Protection |
DC Ground |
|
Mechanical Specifications |
|
|
Connector Type |
SMA-J |
|
Working Temperature |
-40℃~﹢65℃ |
|
Antenna Weight |
9g |
|
Size |
Φ10.5*(50±1)mm |
|
Color |
Black |
791-960MHz 1.5DBi rubber antenna
