- Name：

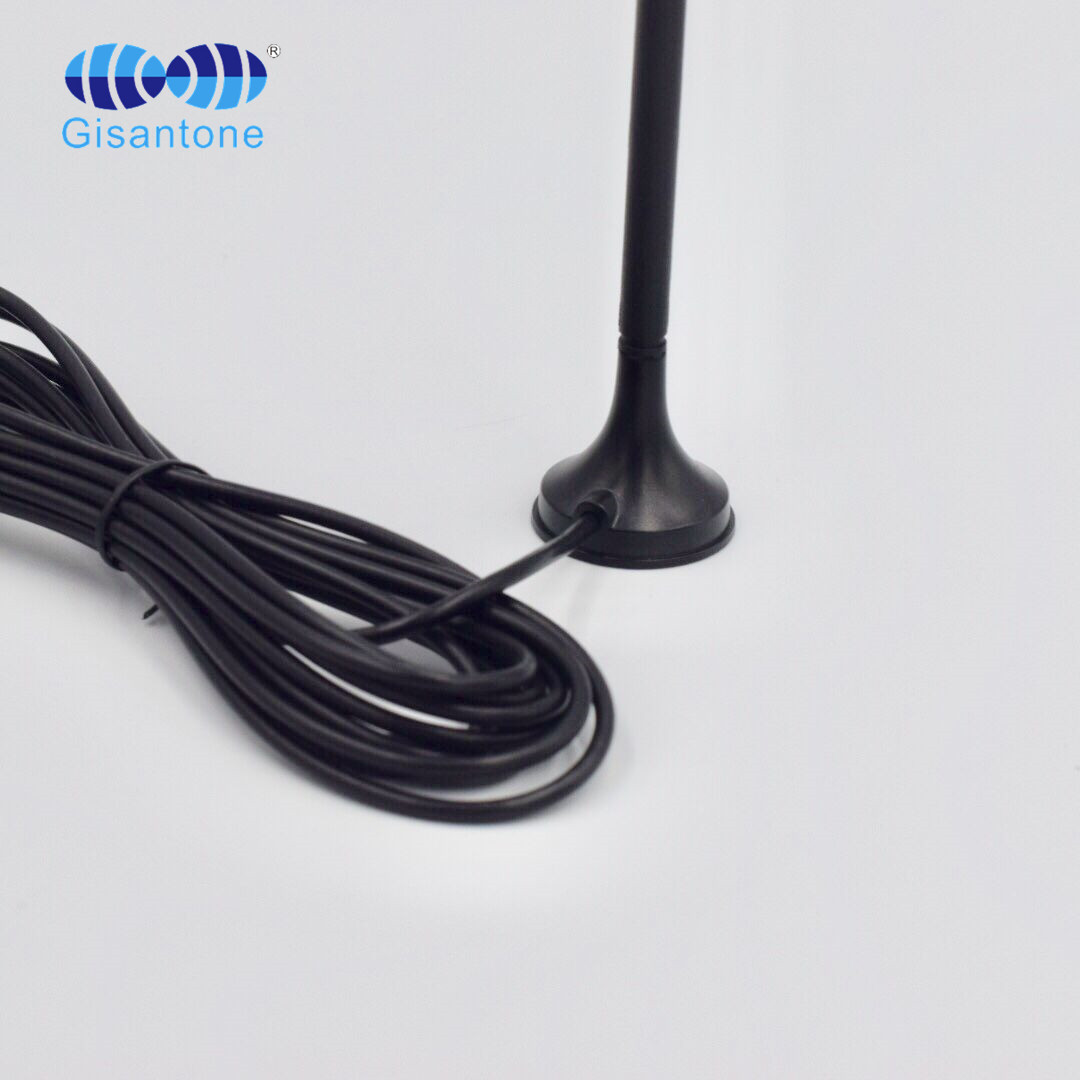

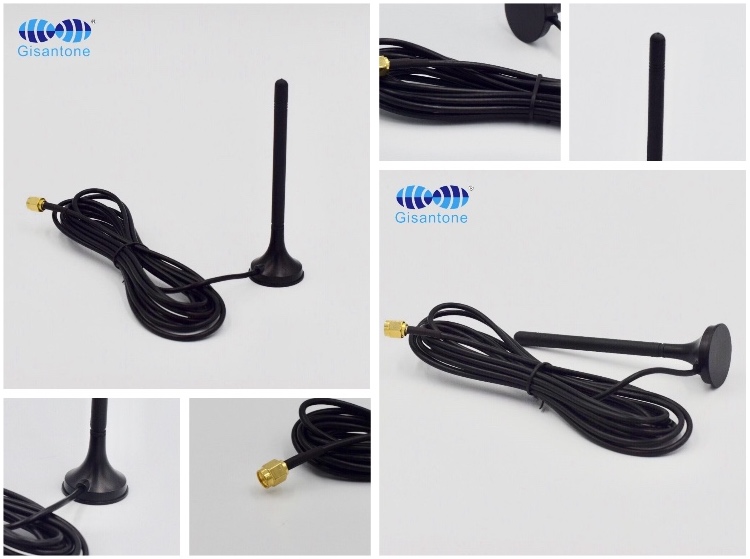

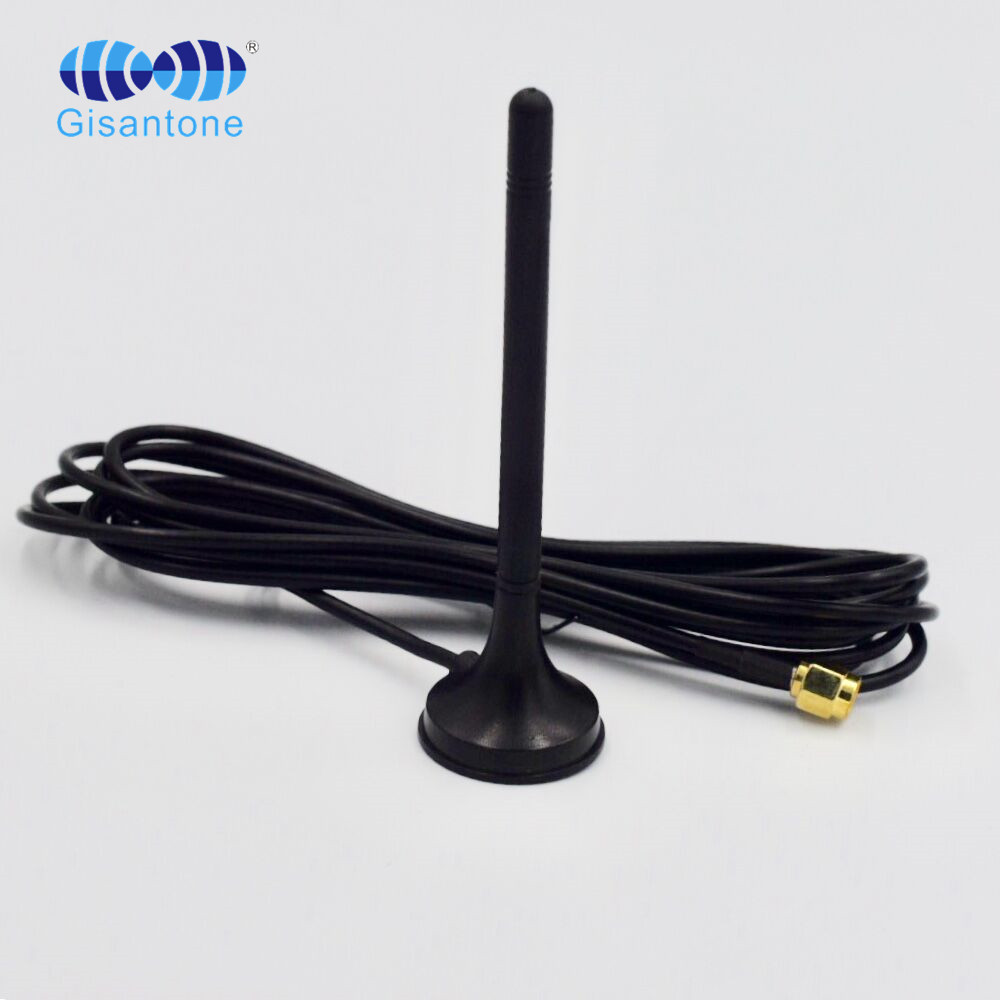

806-960MHz small Magnetic Antenna
- Model No.：
G15366A
- Frequency Range ：
806-960MHz
- Gain：
3DBi
- Cable Length：
3M RG174

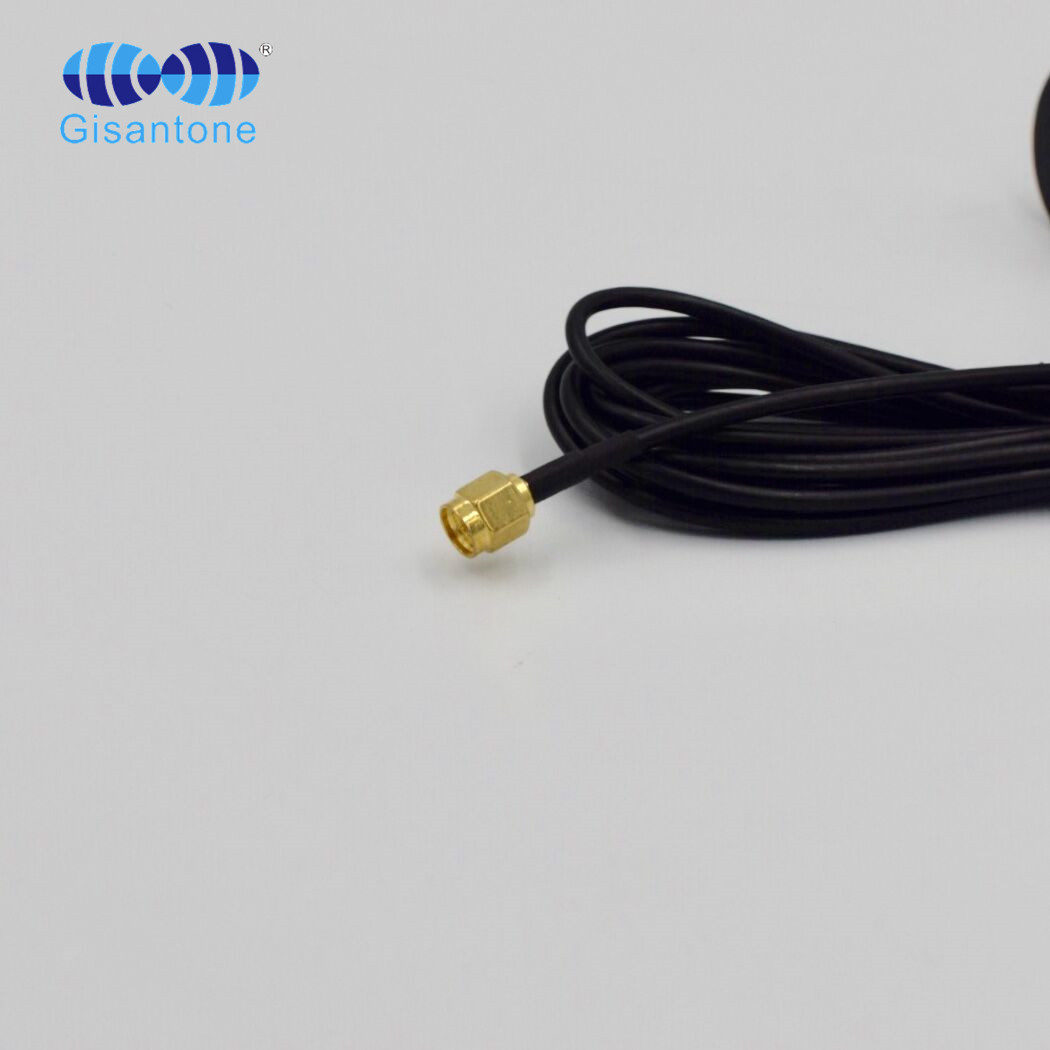

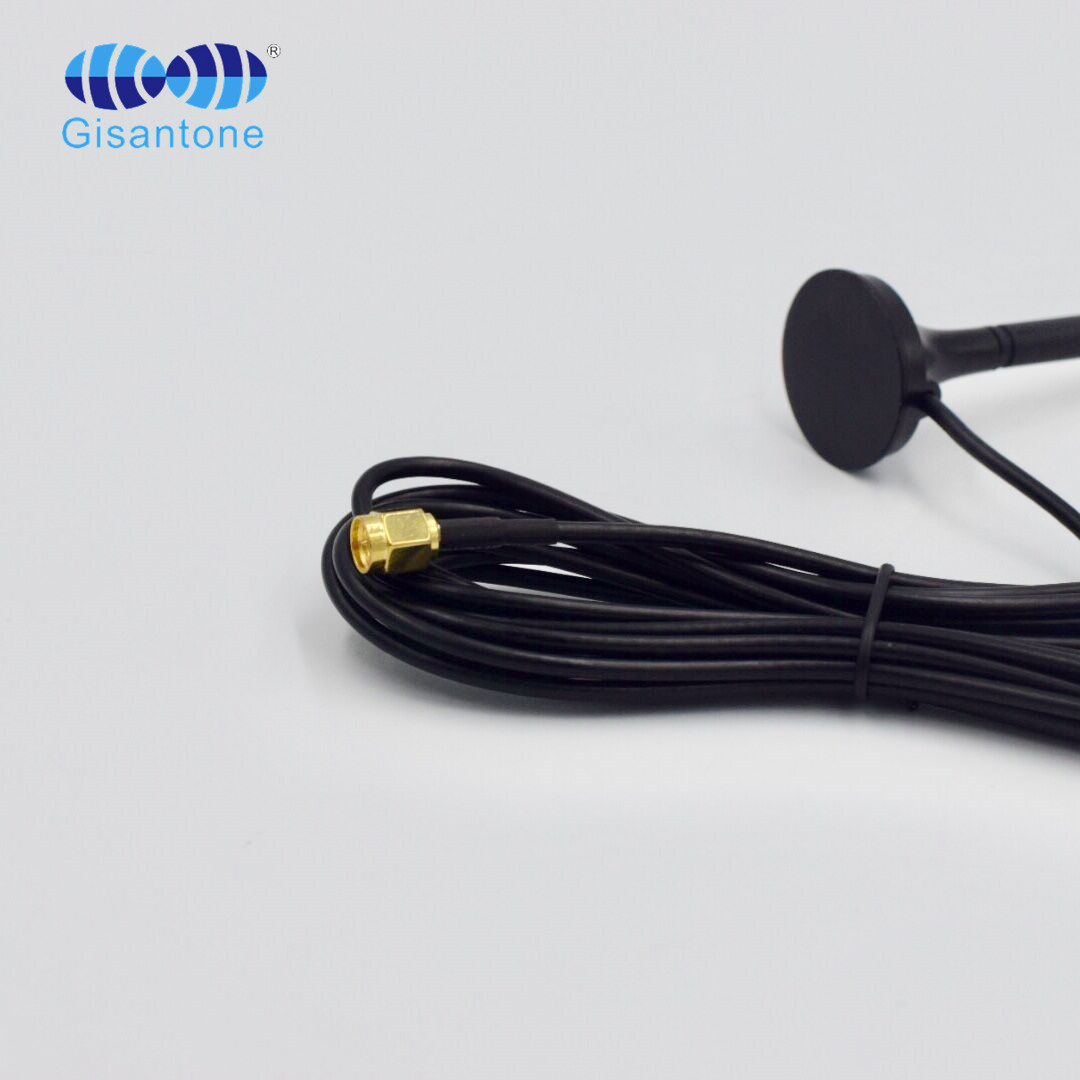

- Connector：
SMA male
|
Electrical Specifications |
|
|
Model No. |
G15366A |
|
Frequency Range |
806-960MHz |
|
Gain |
3Dbi |
|
VSWR |
≤2.5 |
|
Input Impedance |
50Ω |
|
Polarization |
Vertical |
|
Horizontal Half Power Angle |
360° |
|
Max Input Power |
50 |
|
Lightning Protection |
DC Ground |
|
Mechanical Specifications |
|
|
Connector Type |
SMA-J |
|
Working Temperature |
-40℃~﹢65℃ |
|
Cable Type |
RG174 |
|
Cable Length |
3.0±0.02m |
|
Antenna Weight |
38g |
|
Size |
Φ30*(110±5)mm |
|
Mounting |
Magnetic Base |
|
Color |
Black |
|
Package size |
50*43*30CM/400pcs |
|
Weight |
20KG |
806-960MHz small Magnetic Antenna
