3G WCDMA Terminal Antenna
2010-2025MHz 8DBI whip antenna
  • Name:

    2010-2025MHz 8DBI whip antenna

  • Model No.:

    G15518G

  • Frequency Range :

    2010-2025MHz

  • Gain:

    8DBI

  • Cable Length:

    /

  • Connector:

    SMA male

Share:
Product parameters

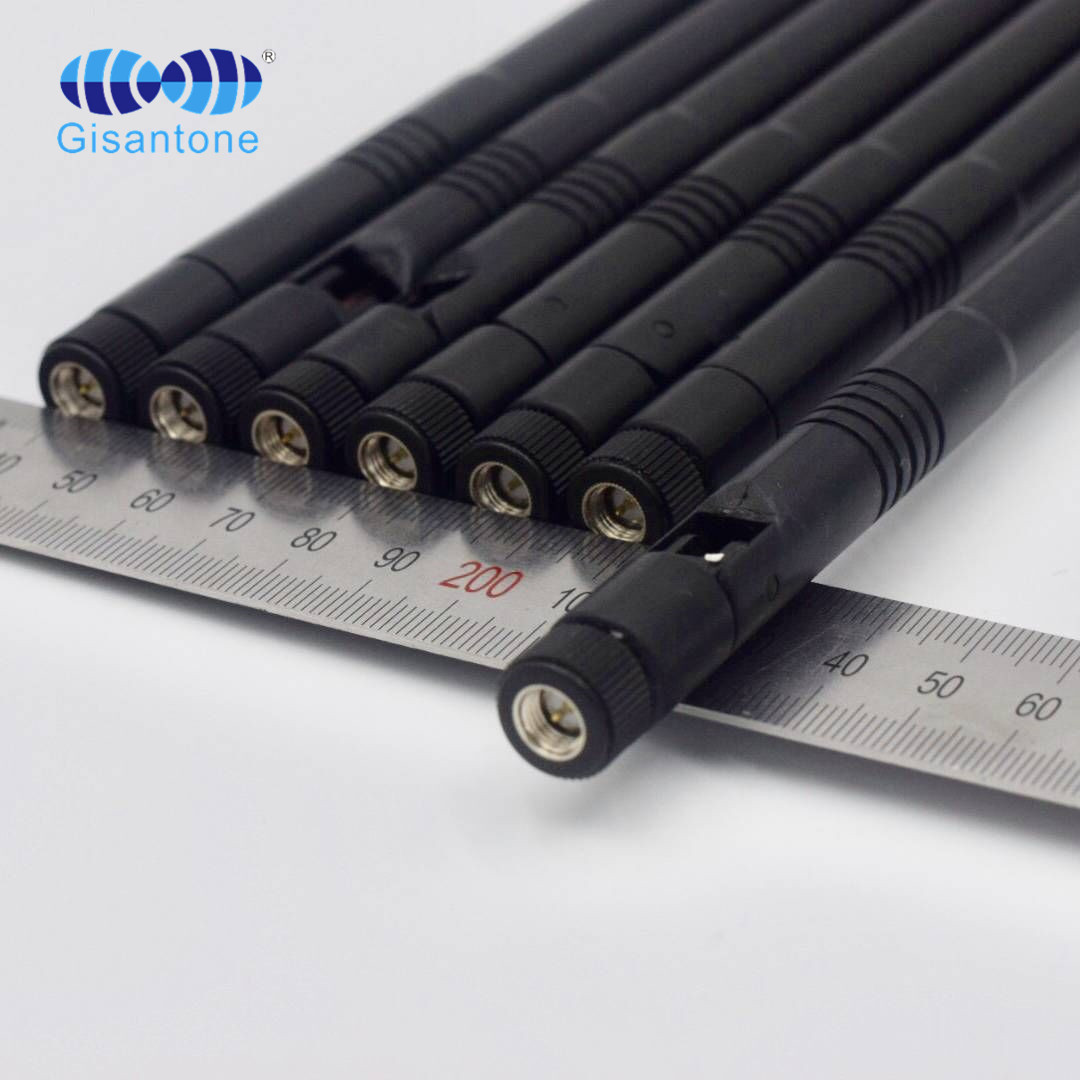

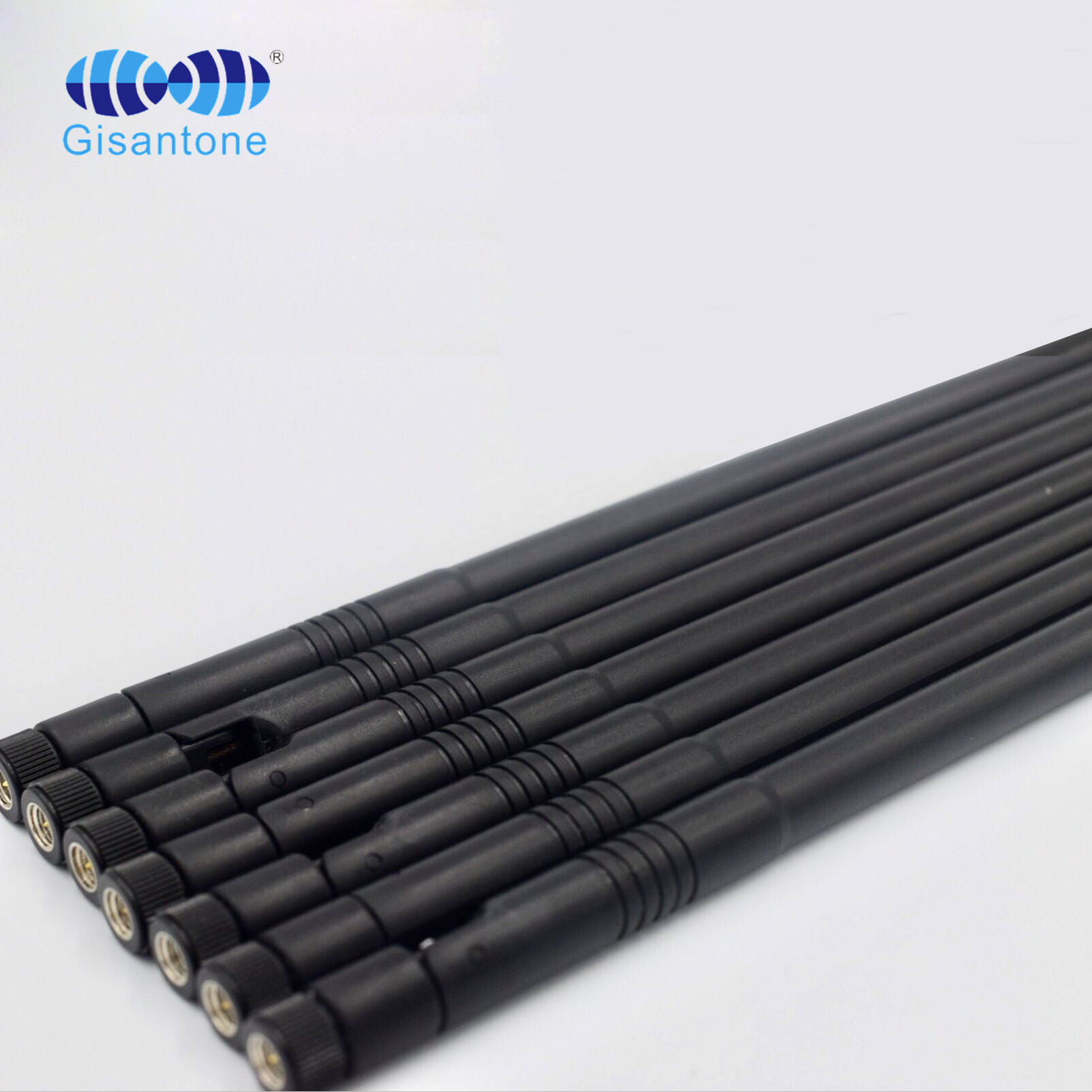

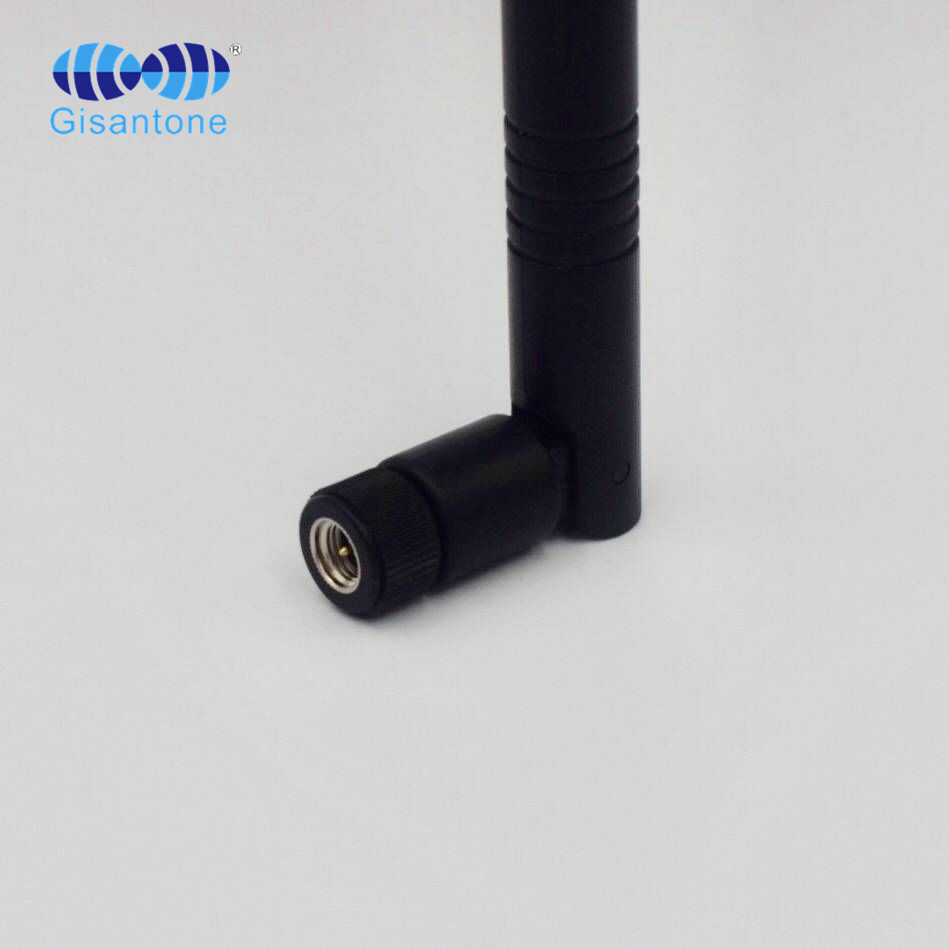

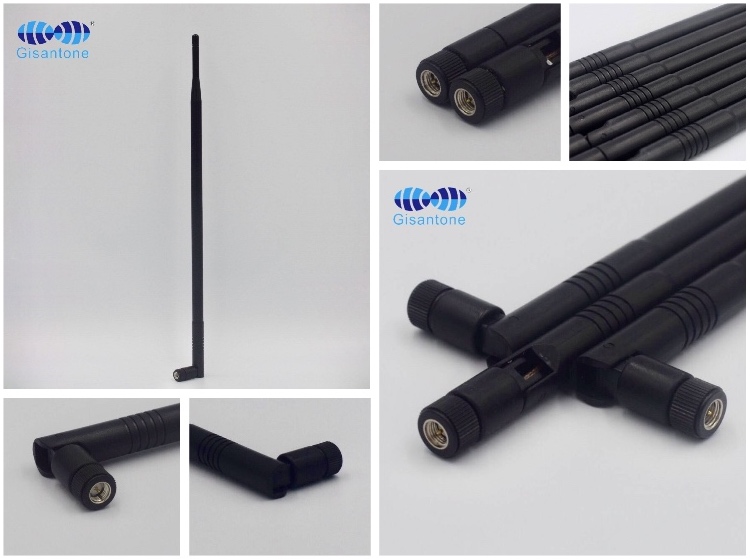

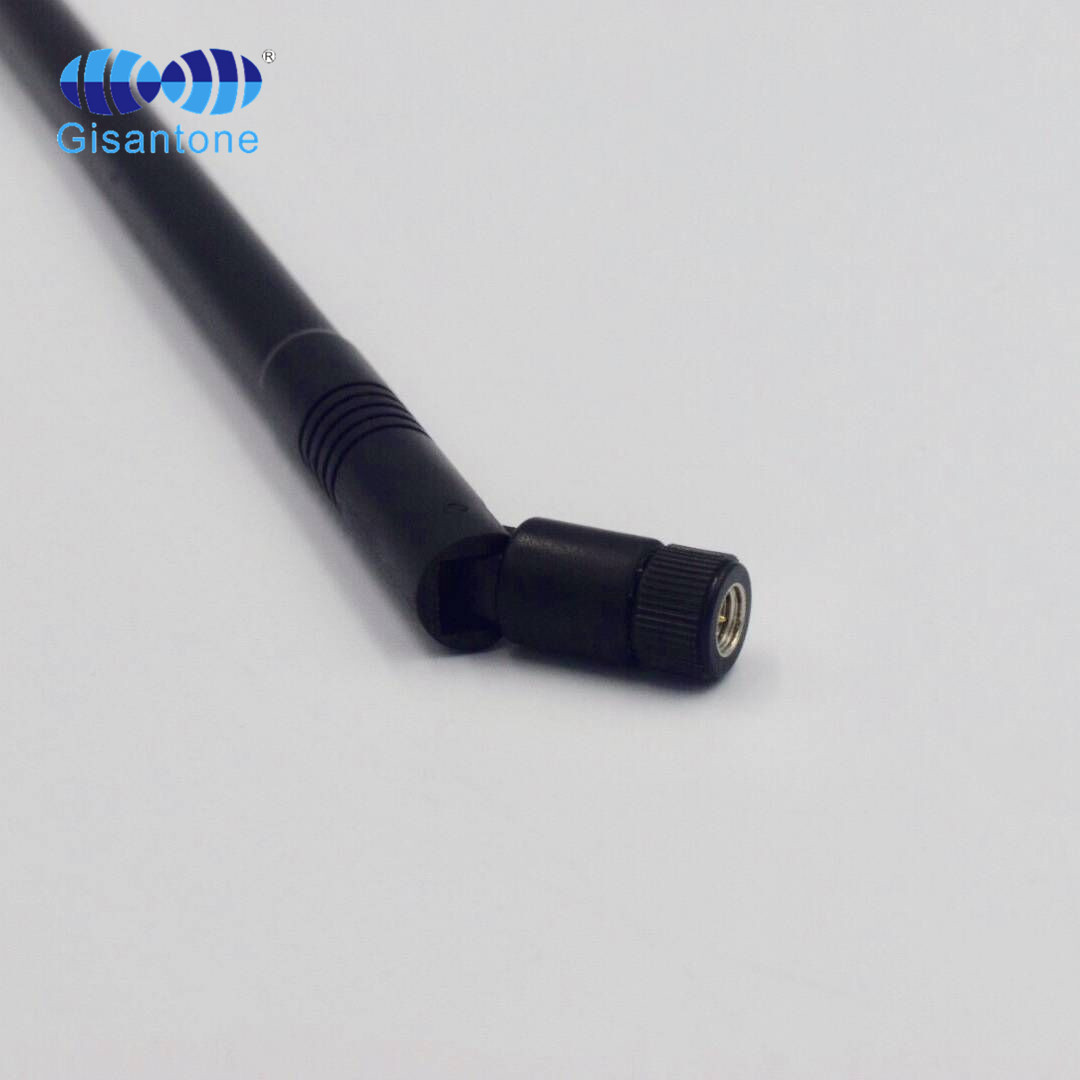

Production photos
Download

Electrical Specifications

Model No.

G15518G

Frequency Range

2010-2025MHz

Gain

8Dbi

VSWR

≤1.5

Input Impedance

50Ω

Polarization

Vertical

Horizontal Half Power Angle

360°

Max Input Power

50W

Lightning Protection

DC Ground

Mechanical Specifications

Connector Type

SMA-J

Working Temperature

-40~65

Antenna Weight

33g

Size

Φ13*(390±2)mm

Color

Black
