- Name：
2.4/5.8G 7DBI Fiberglass antenna
- Model No.：
G14423B
- Frequency Range ：
2400-2500MHz/5150-5850MHz
- Gain：
7DBI
- Cable Length：
/
- Connector：
N female
|
Electrical Specifications |
||
|
Model No. |
G14423B |
|
|
Frequency Range |
2400-2500MHz |
5150-5850MHz |
|
Gain |
7dBi |
|
|
VSWR |
≤2.5 |
|
|
Input Impedance |
50Ω |
|
|
Polarization |
Vertical |
|
|
Horizontal Half Power Angle |
360° |
|
|
Vertical Half Power Angle |
30° |
|
|
Max Input Power |
100W |
|
|
Lightning Protection |
DC Ground |
|
|
Mechanical Specifications |
||
|
Working Temperature |
-40℃~﹢65℃ |
|
|

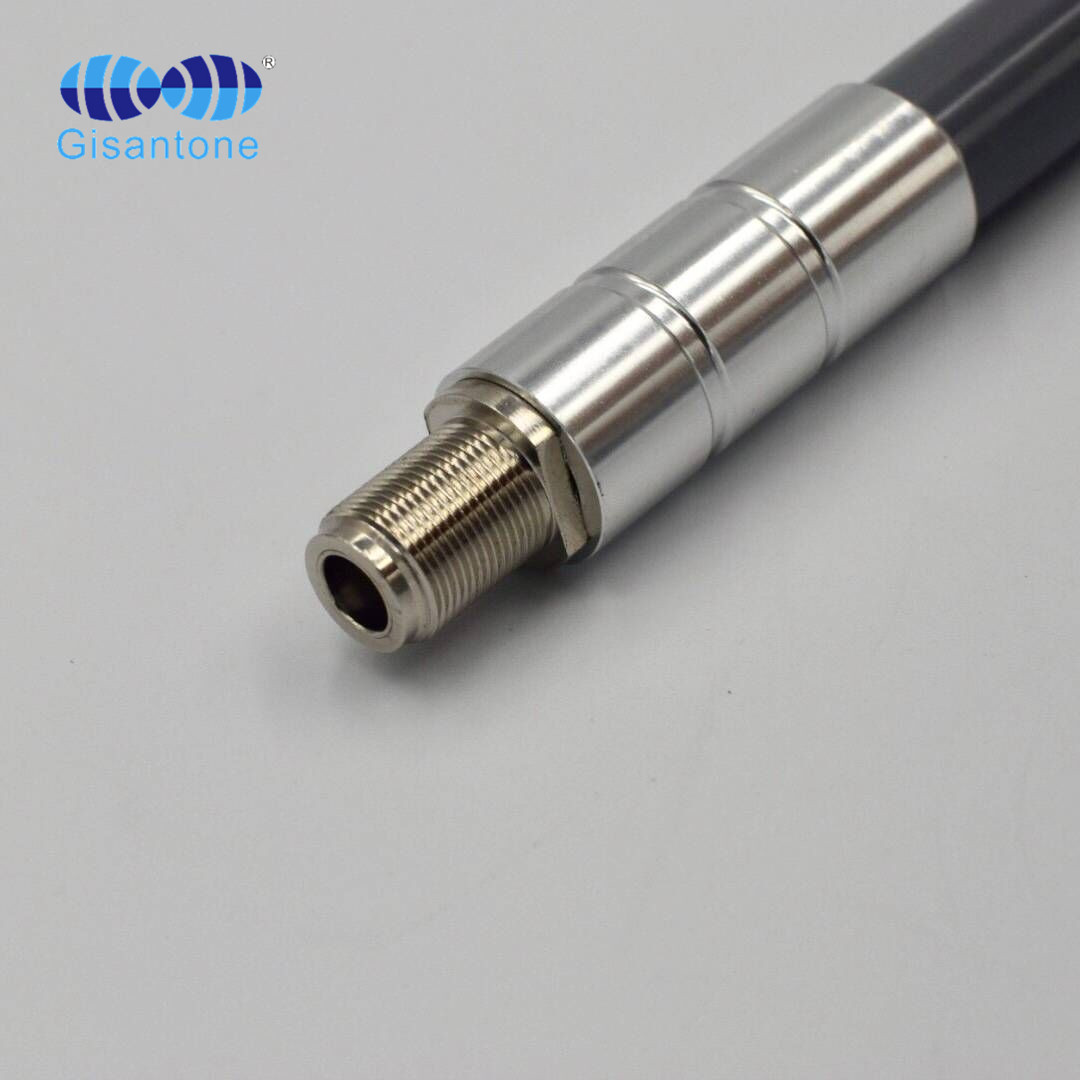

Connector Type |
N female |
|
|
Antenna Weight |
0.33kg |
|
|
Size |
Φ 20x600mm |
|
|

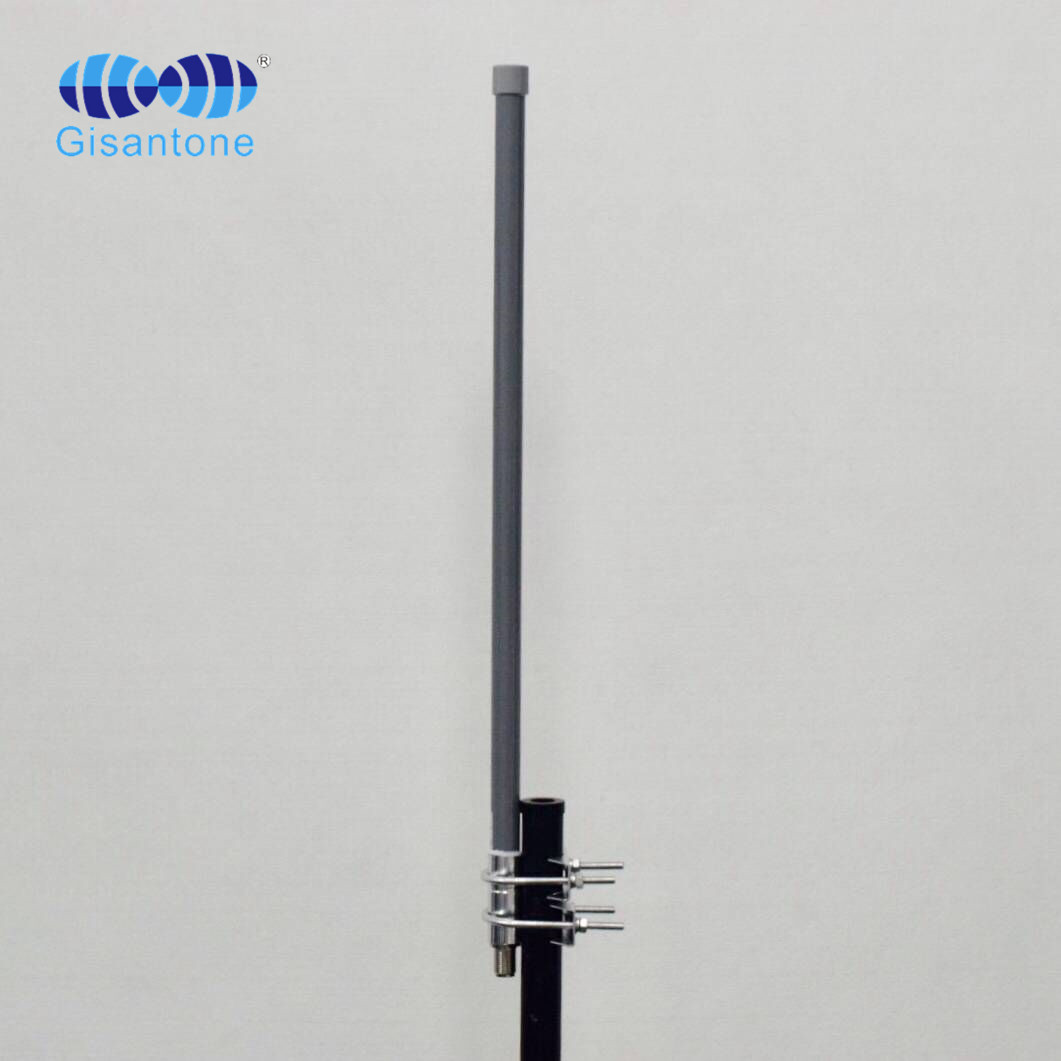

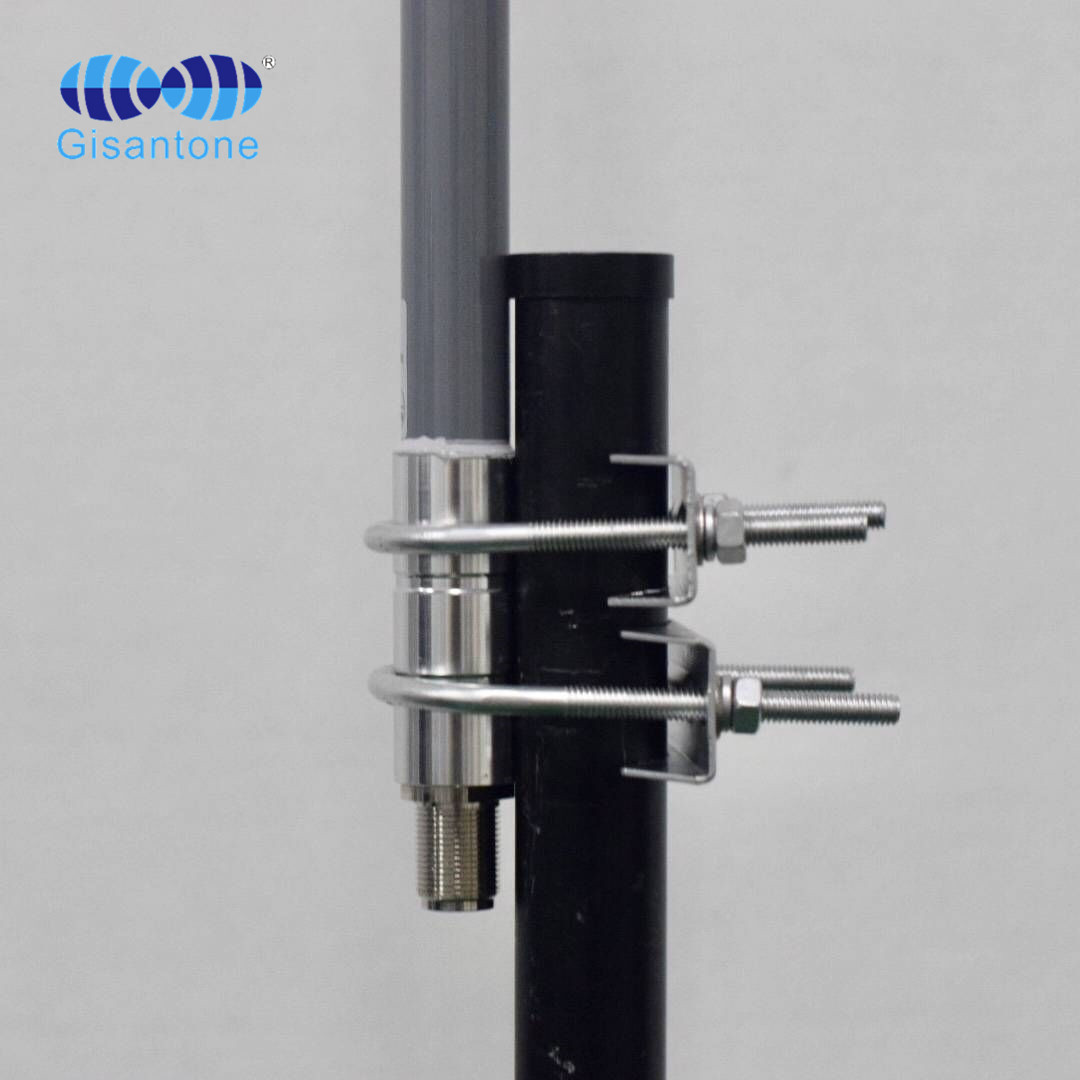

Pole Diameter |
Φ35~55mm |
|
|
Rated Wind Velocity |
210km/h |
|
|

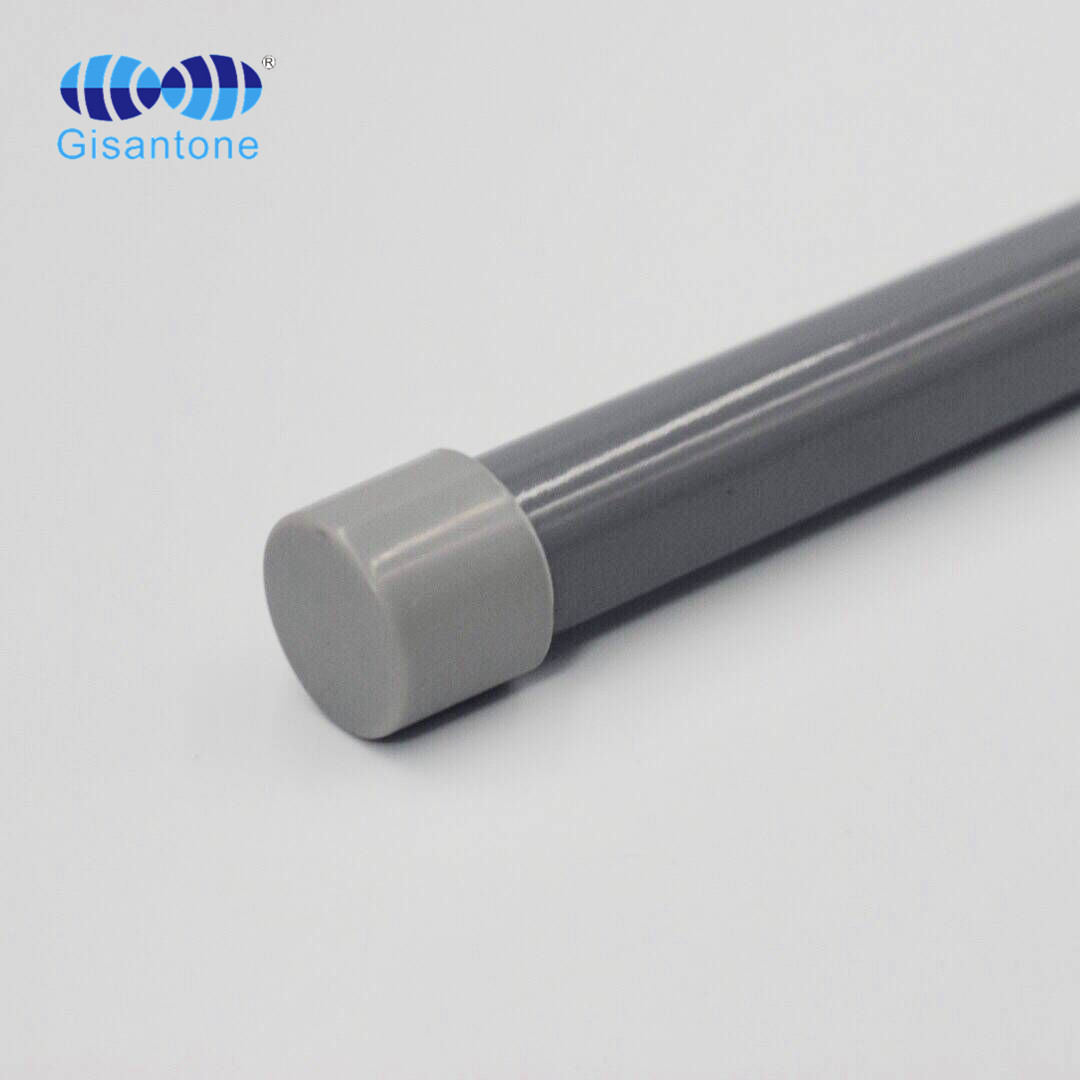

Antenna Cover Material |
Fiberglass |
|
|
Color |
Cold gray |
|
