- Name：

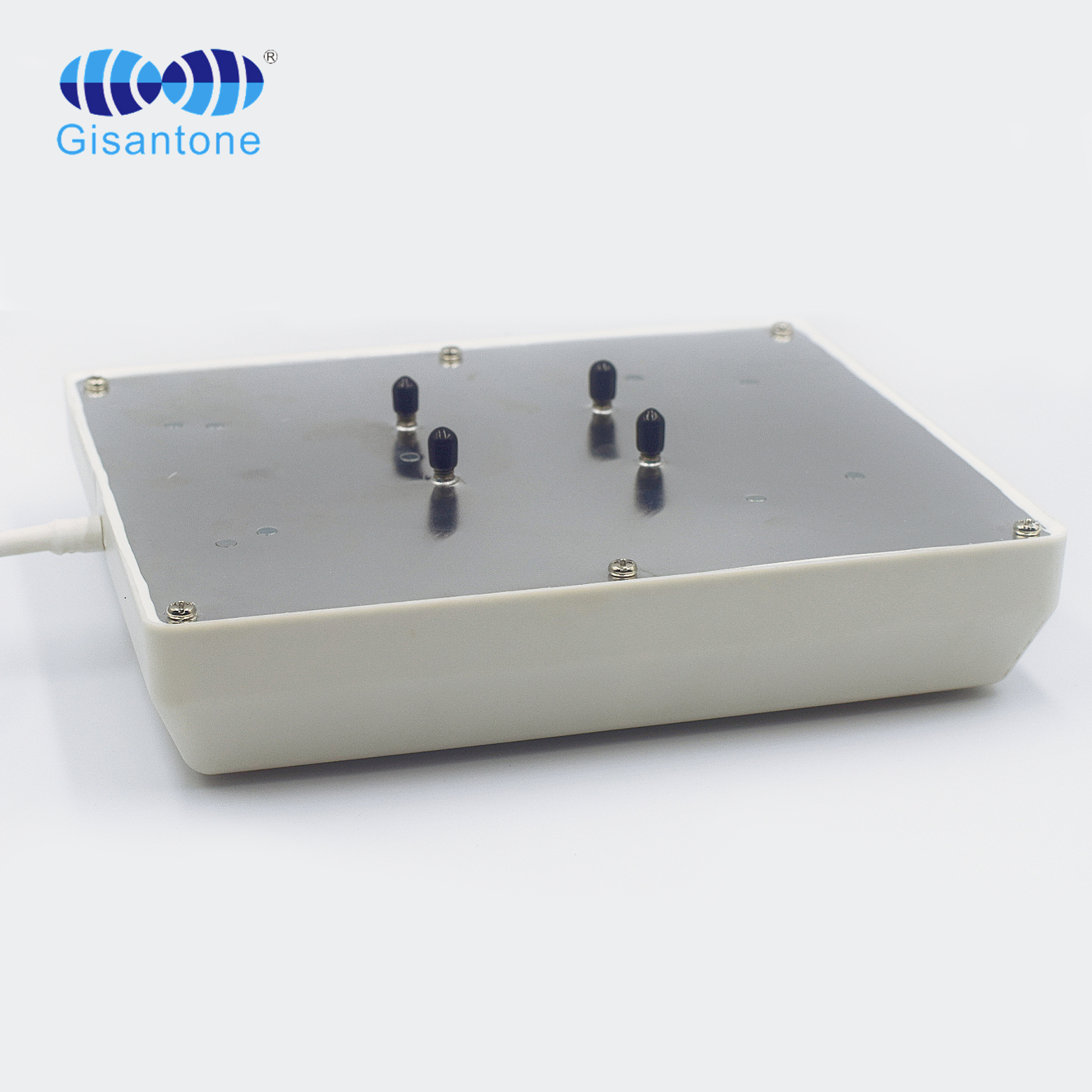

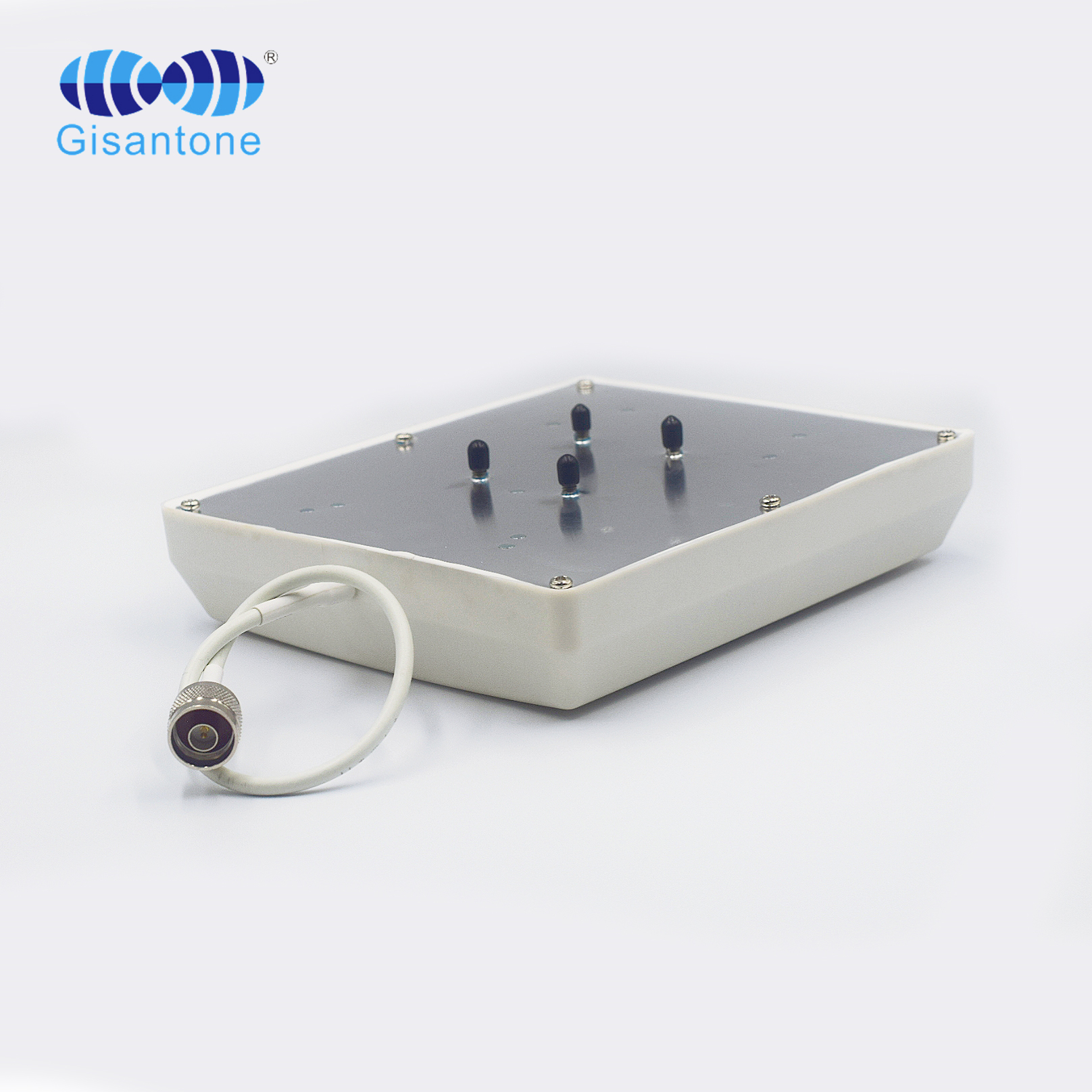

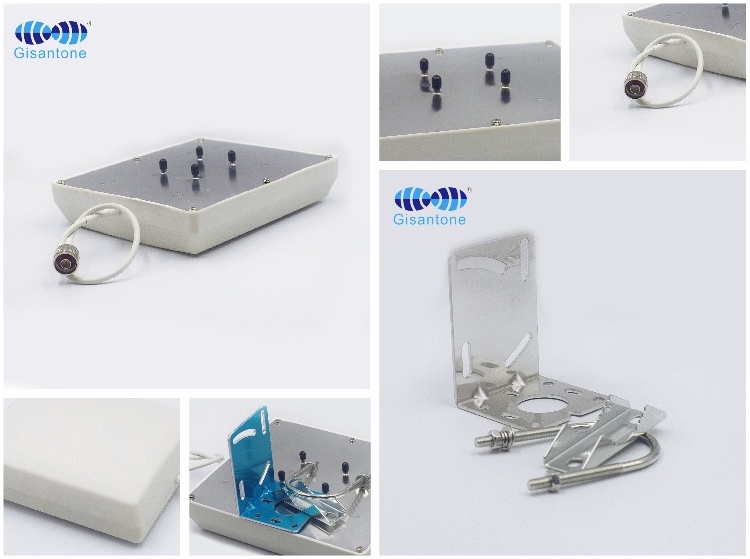

433MHz 7DBI N male panel antenna
- Model No.：
G11510B
- Frequency Range ：
433±5MHz
- Gain：
7DBI
- Cable Length：
30CM RG58U
- Connector：
N male
|
Electrical Specifications |
|
|
Model No. |
G11510B |
|
Frequency Range |
433±5MHz |
|
Gain |
7Dbi |
|
VSWR |
≤1.5 |
|
Input Impedance |
50Ω |
|
Polarization |
Vertical |
|
Front to Back Ratio |
≥23dB |
|
Horizontal Half Power Angle |
78°±2 |
|
Vertical Half Power Angle |
68°±2 |
|
Max Input Power |
100W |
|
Lightning Protection |
DC Ground |
|
Mechanical Specifications |
|
|
Connector Type |
N-male |
|
Cable Type |
RG58/U |
|
Cable Length |
30CM |
|
Working Temperature |
-40℃~﹢65℃ |
|
Antenna Weight |
0.75kg |
|

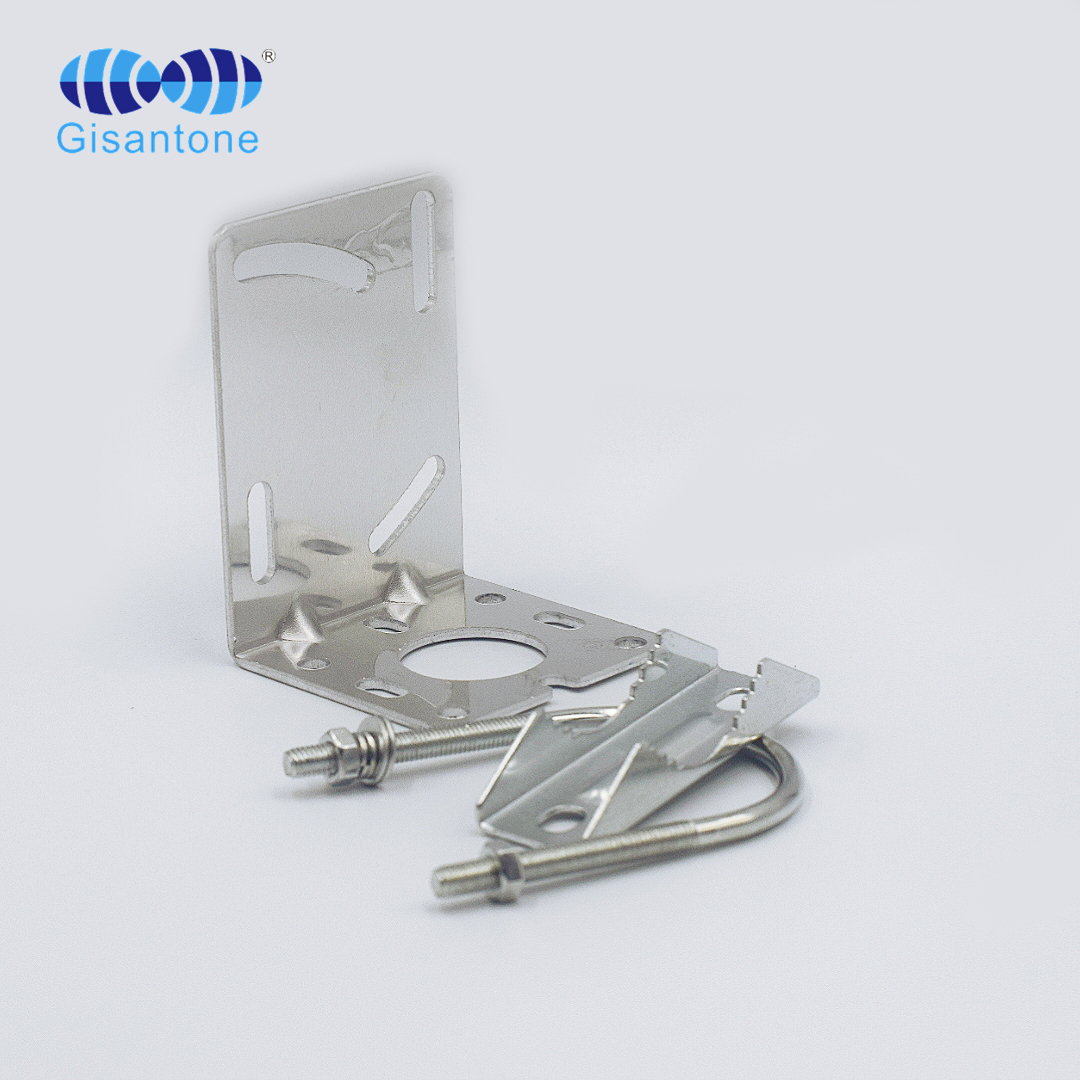

Pole Diameter |
Φ35~φ55mm |
|
Size |
210*180*45mm |
|
Rated Wind Velocity |
210km/h |
|
Antenna cover material |
ABS |
|
Package |
52*34*22CM/10pcs |
|
Package Weight |
5.5KG |
433MHz 7DBI N male panel antenna
