- Name：

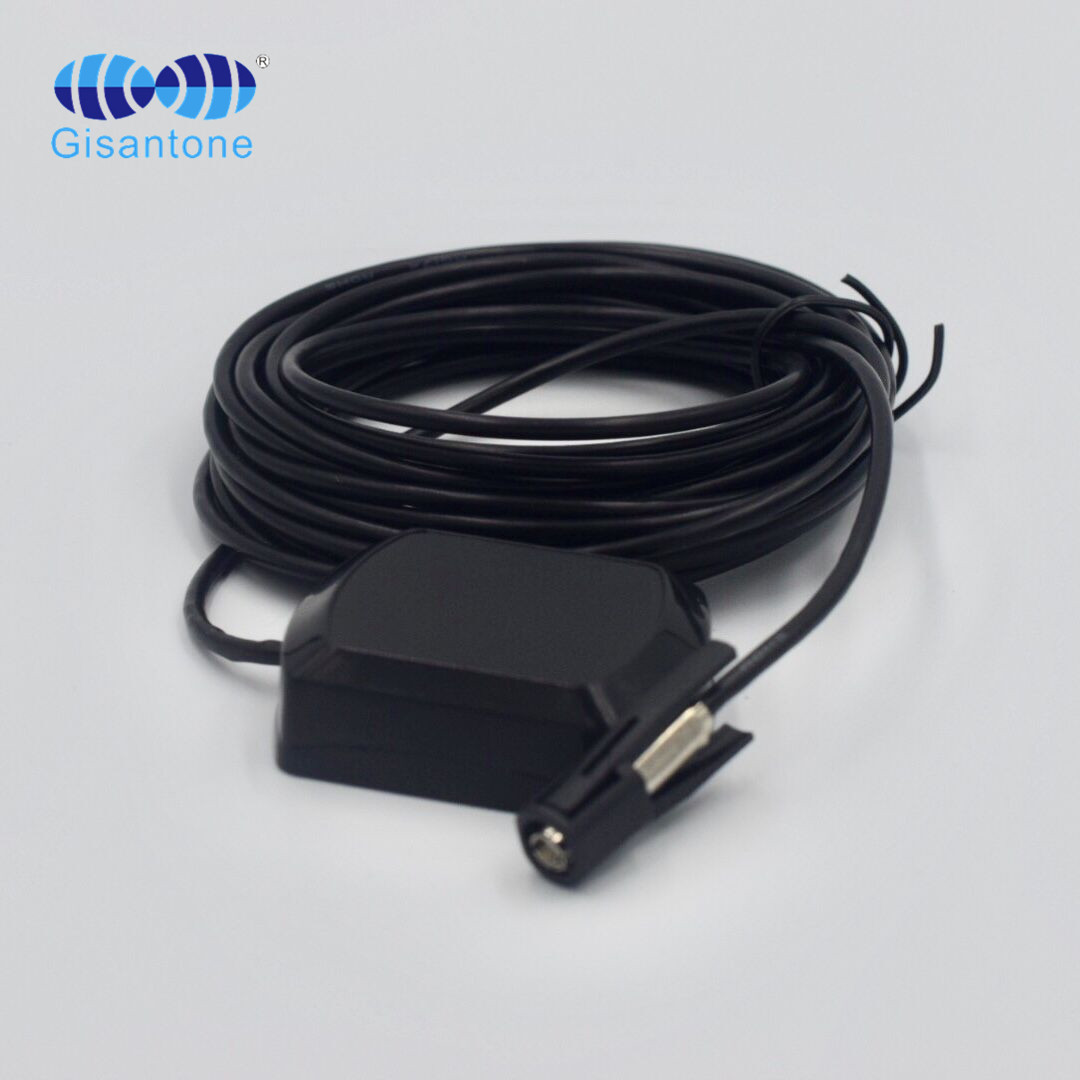

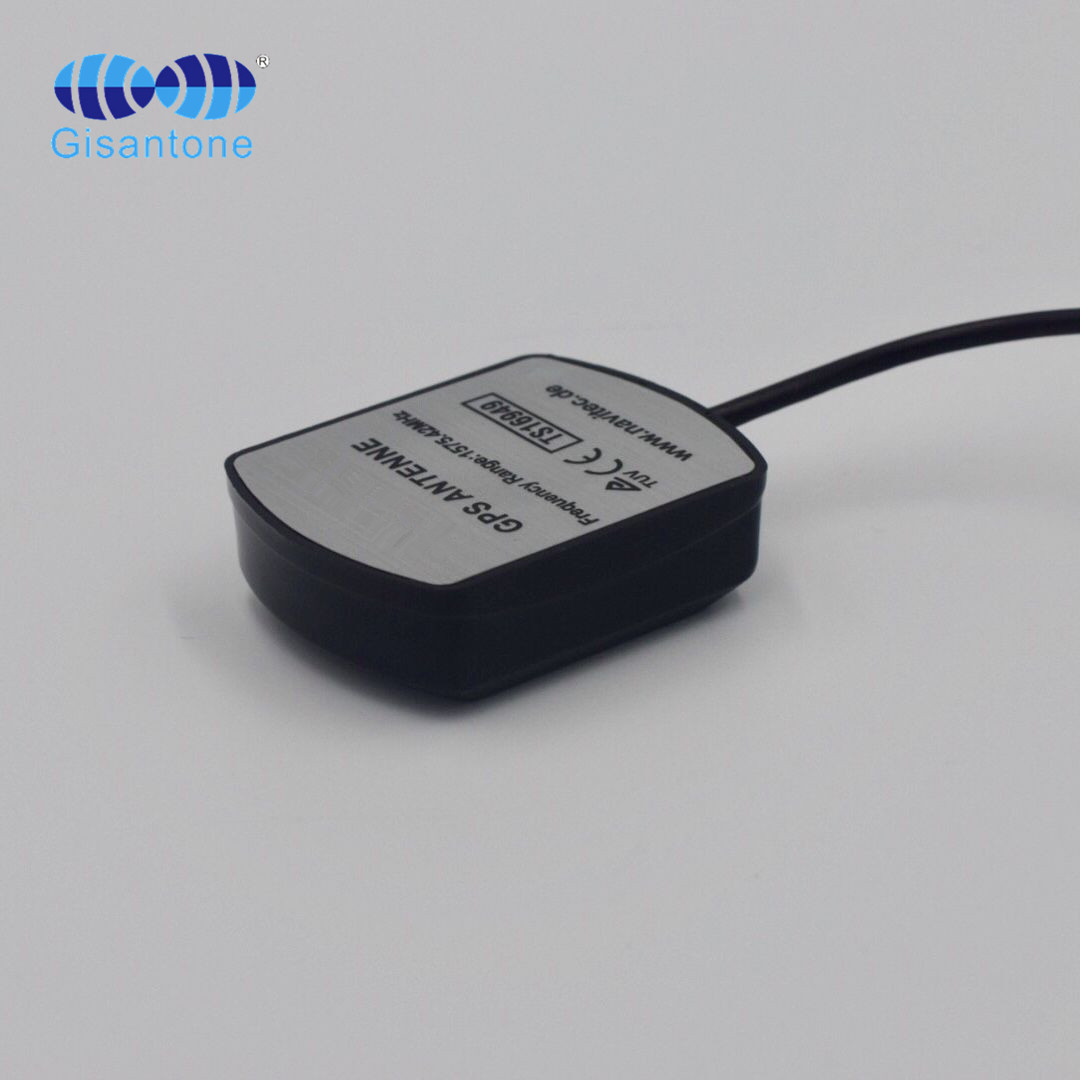

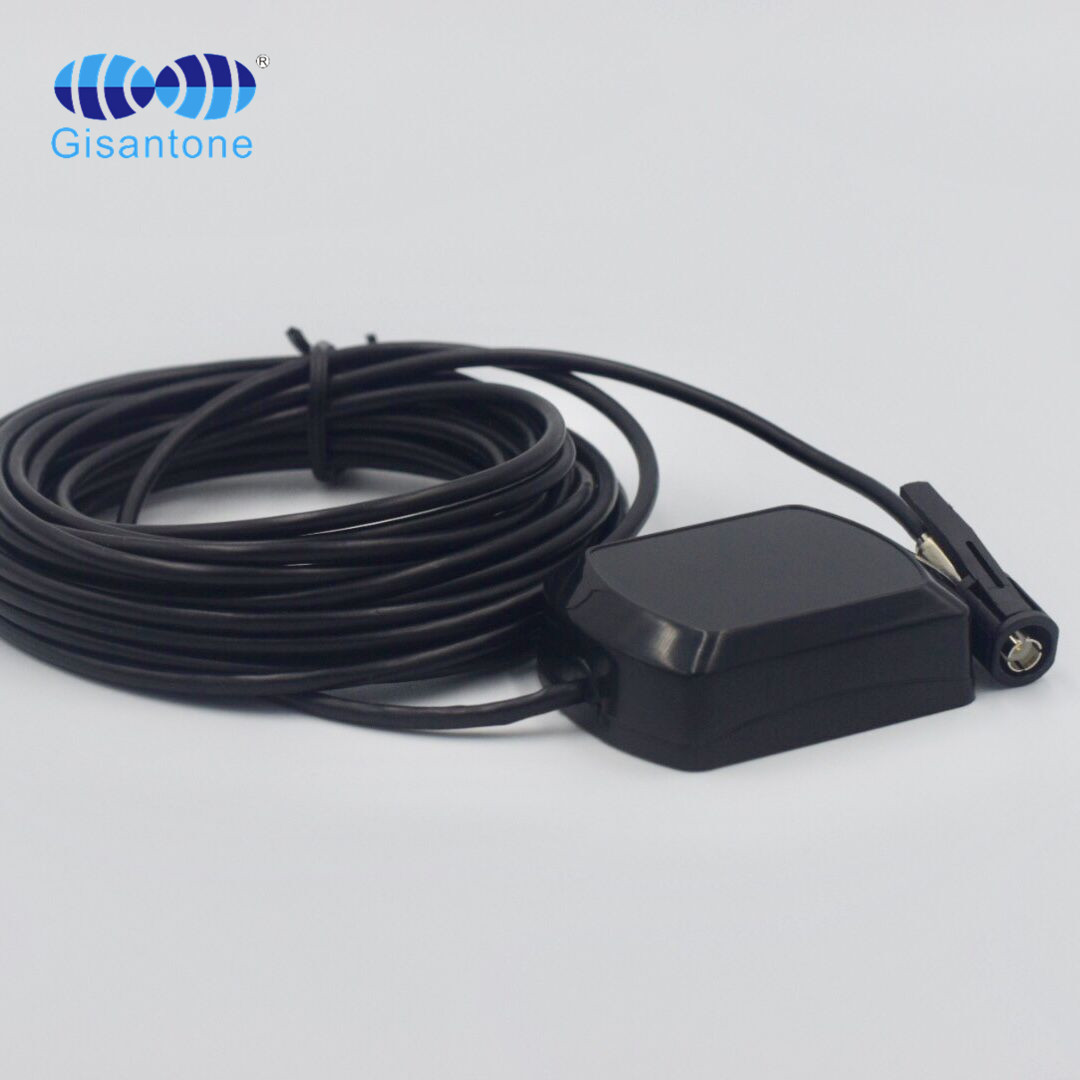

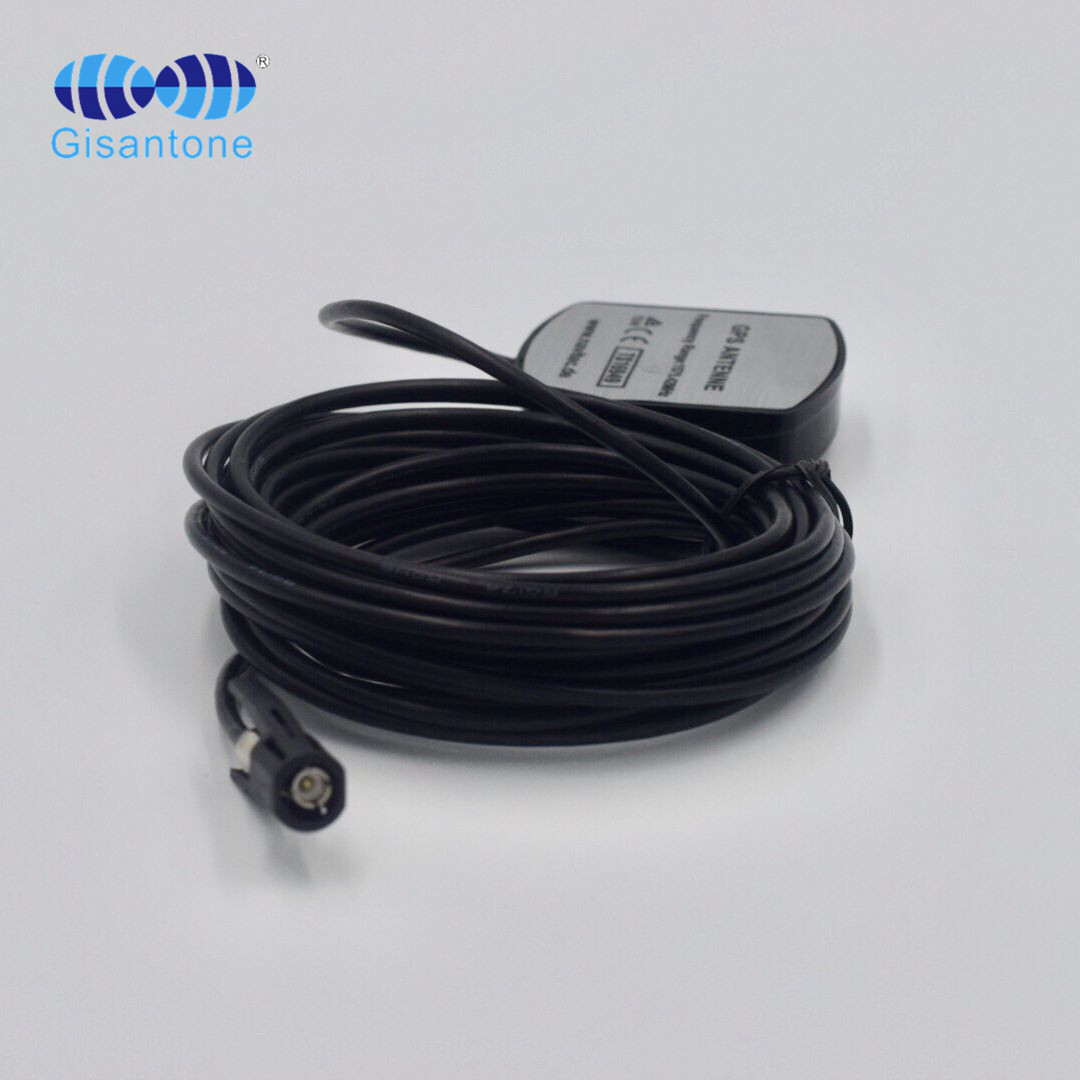

1575±5MHz 28DBI GPS Antenna
- Model No.：
G15201B
- Frequency Range ：
1575±5MHz
- Gain：
28DBI
- Cable Length：
3M
- Connector：
Wiclic
|
Electrical Specifications |
|
|
Model No. |
G15201B |
|
Frequency Range |
1575±5MHz |
|
Gain |
28Dbi |
|
VSWR |
≤2.0 |
|
Input Impedance |
50Ω |
|
Polarization |
Right-handed circularly polarized |
|
DC Voltage |
3.3V±0.3V |
|
Lightning Protection |
DC Ground |
|
Mechanical Specifications |
|
|
Connector Type |
Wiclic Connector |
|
Cable Type |
RG174 Black |
|
Cable Length |
3M |
|
Working Temperature |
-40℃~﹢65℃ |
|
Antenna Weight |
85g |
|
Size |
50*38*15mm |
|
Installation |
Magnetic adsorption |
|
Color |
Black |
1575±5MHz 28DBI GPS Antenna
