- Name：

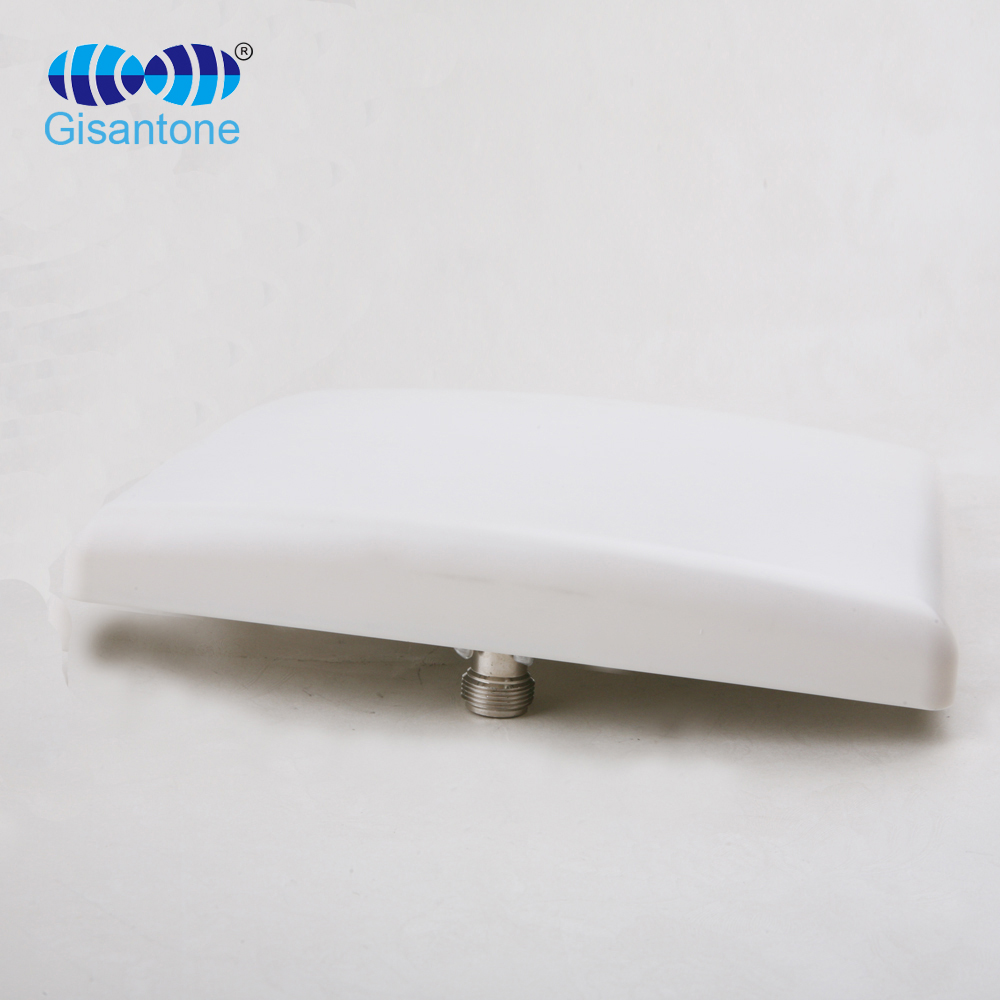

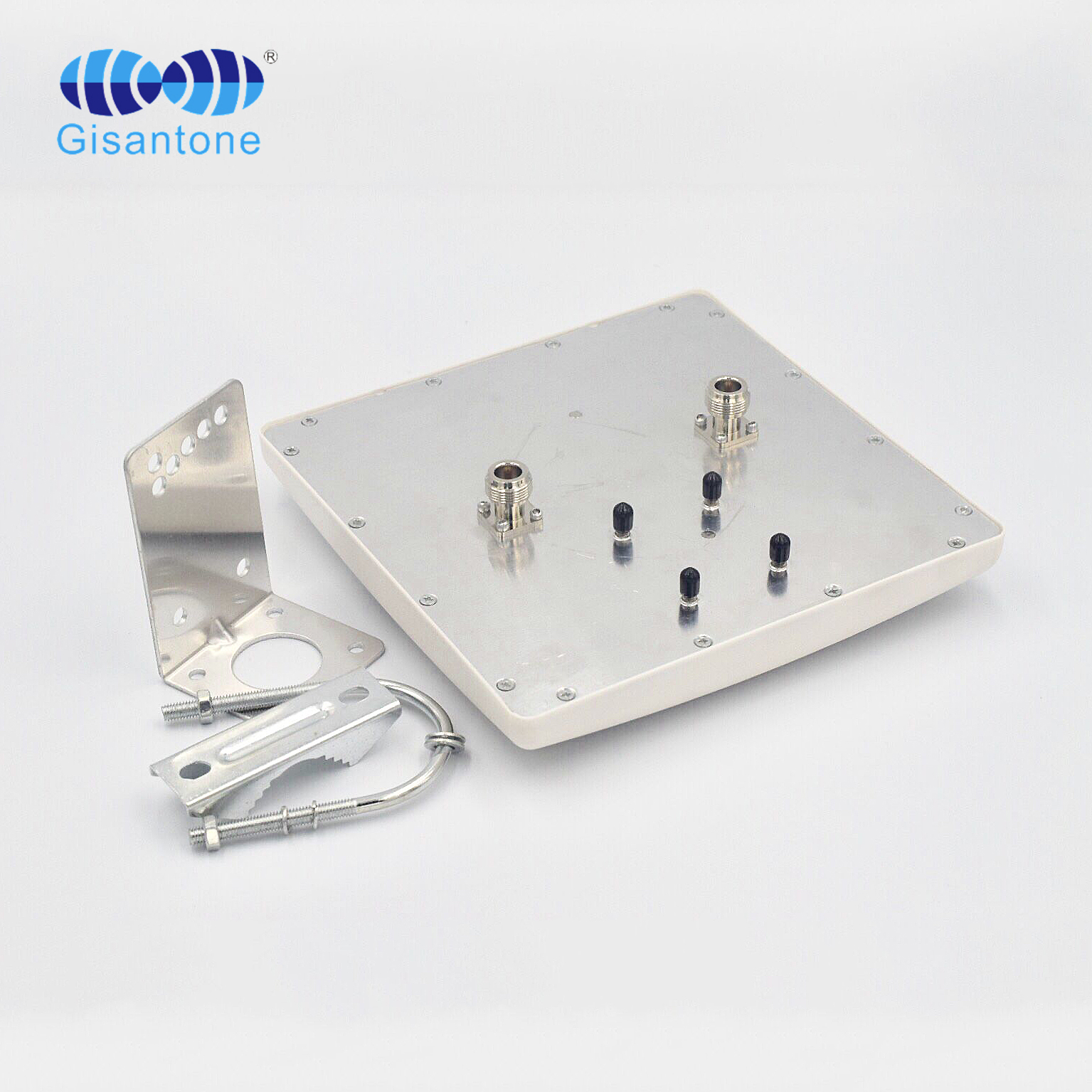

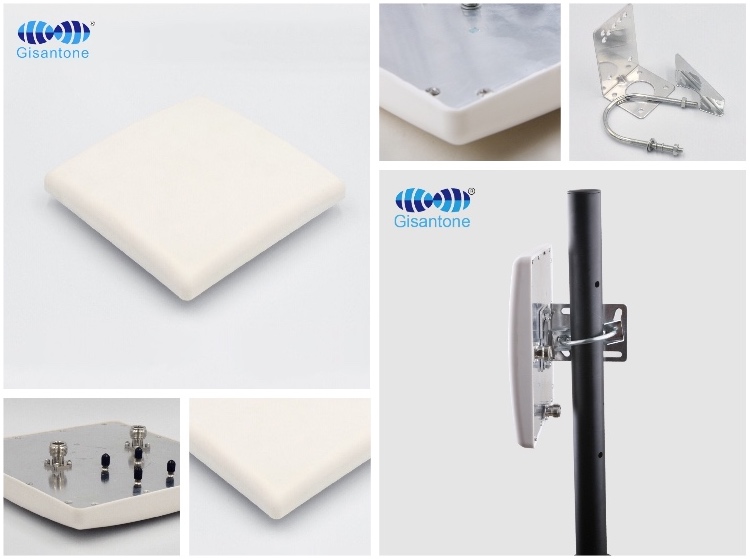

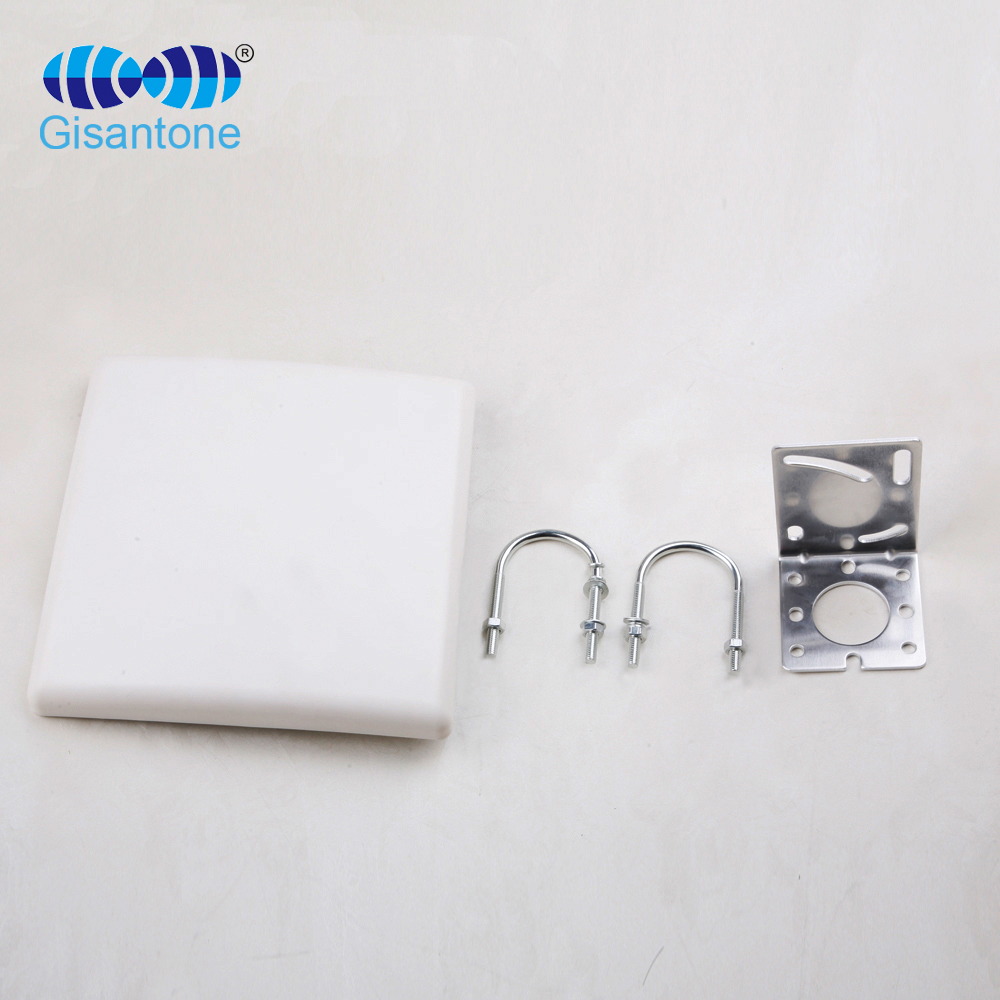

3400-3600MHz 14DBI MIMO antenna
- Model No.：
G11301A
- Frequency Range ：
3400-3600MHz
- Gain：
2*14DBi
- Cable Length：
/
- Connector：
2*N female
|
Electrical Specifications |
|
|
Model No. |
G11301A |
|
Frequency Range |
3400-3600MHz |
|
Gain |
2*14DBI |
|
VSWR |
≤1.8 |
|
Input Impedance |
50Ω |
|
Polarization |
Vertical and Horizontal |
|
Front to Back Ratio |
≥28dB |
|
Isolation |
≥-28dB |
|
Horizontal Half Power Angle |
35° |
|
Vertical Half Power Angle |
30° |
|
Max Input Power |
50W |
|
Lightning Protection |
DC Ground |
|
Mechanical Specifications |
|
|
Connector Type |
2*N female |
|
Working Temperature |
-40℃~﹢65℃ |
|
Antenna Weight |
0.47kg |
|
Pole Diameter |
Φ35~φ55mm |
|
Size |
190*190*35mm |
|
Rated Wind Velocity |
210km/h |
|
Antenna cover material |
ABS |
|
Color |
White |
3400-3600MHz 14DBI MIMO antenna
