- Name：

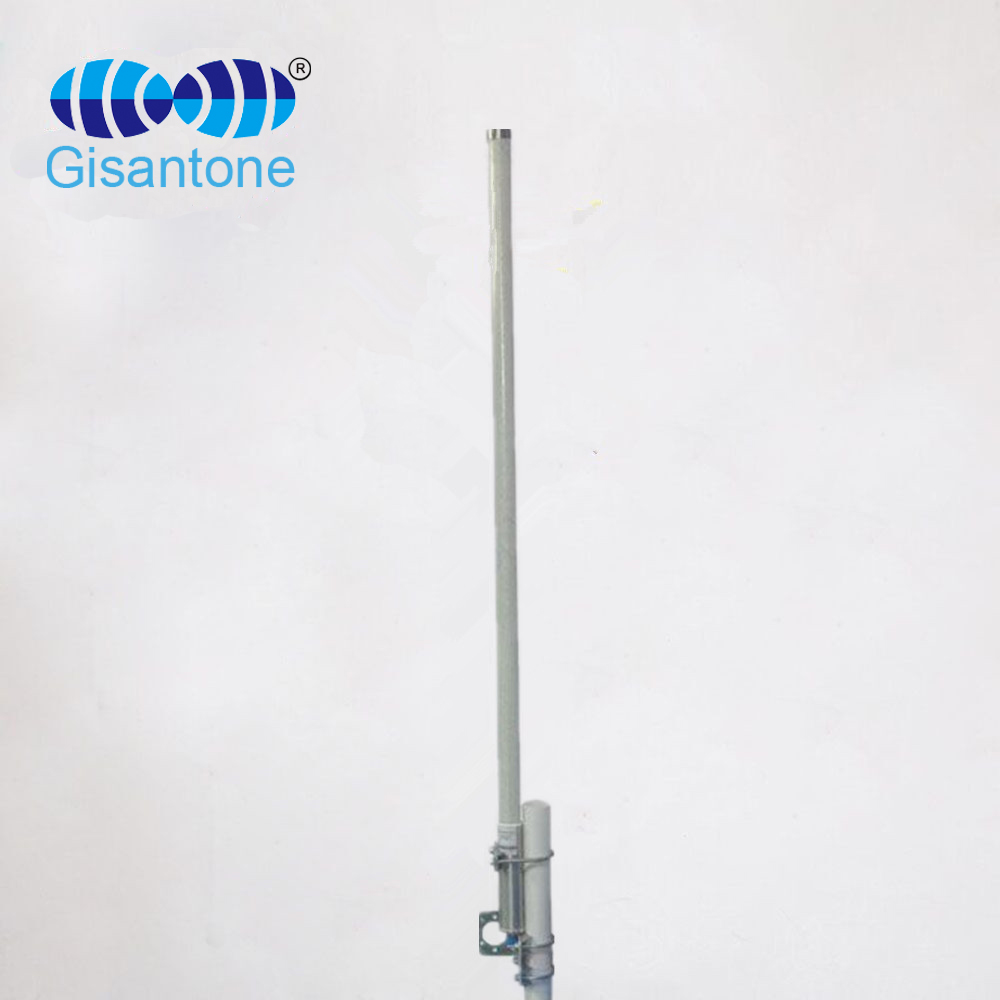

3990MHz 6DBI fiberglass antenna
- Model No.：
G14701A
- Frequency Range ：
3990MHz
- Gain：
6DBI
- Cable Length：
/
- Connector：
N female
|
Electrical Specifications |
|
|
Model No. |
G14701A |
|
Frequency Range |
3990MHz |
|
Gain |
6dBi |
|
VSWR |
≤1.5 |
|
Input Impedance |
50Ω |
|
Polarization |
Vertical |
|
Horizontal Half Power Angle |
360° |
|
Vertical Half Power Angle |
35° |
|
Max Input Power |
100W |
|
Lightning Protection |
DC Ground |
|
Mechanical Specifications |
|
|
Working Temperature |
-40℃~﹢65℃ |
|

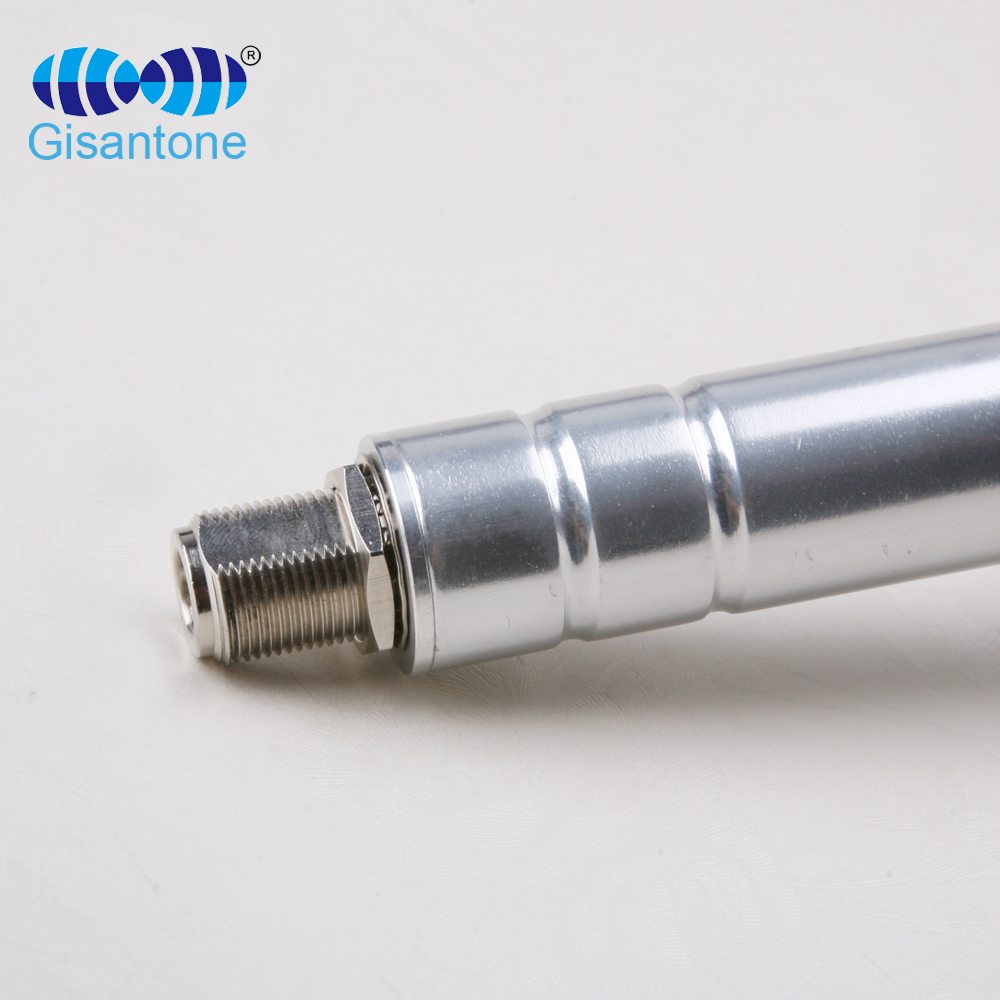

Connector Type |
N female |
|
Antenna Weight |
0.4kg |
|
Size |
Φ 20x800mm |
|

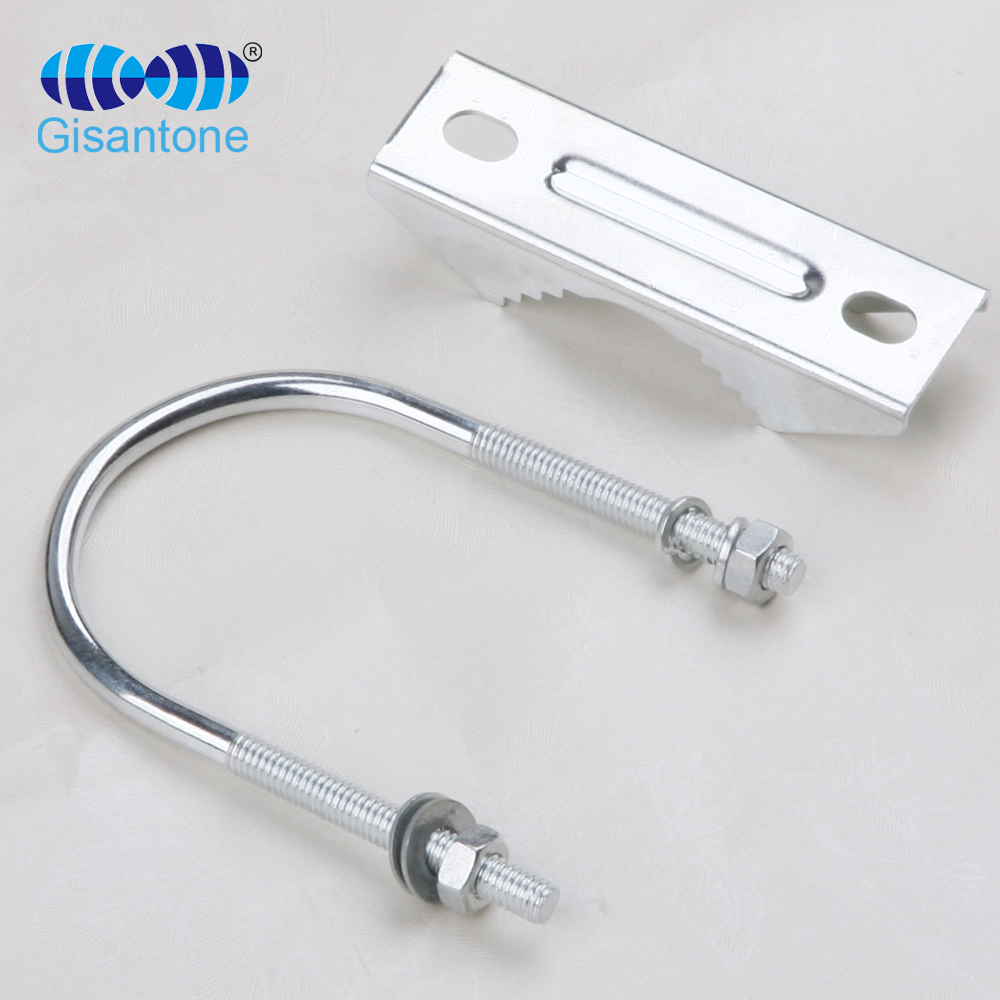

Pole Diameter |
Φ35~55mm |
|
Rated Wind Velocity |
210km/h |
|
Antenna Cover Material |
Fiberglass |
|
Color |
White |
3990MHz 6DBI fiberglass antenna
