- Name：

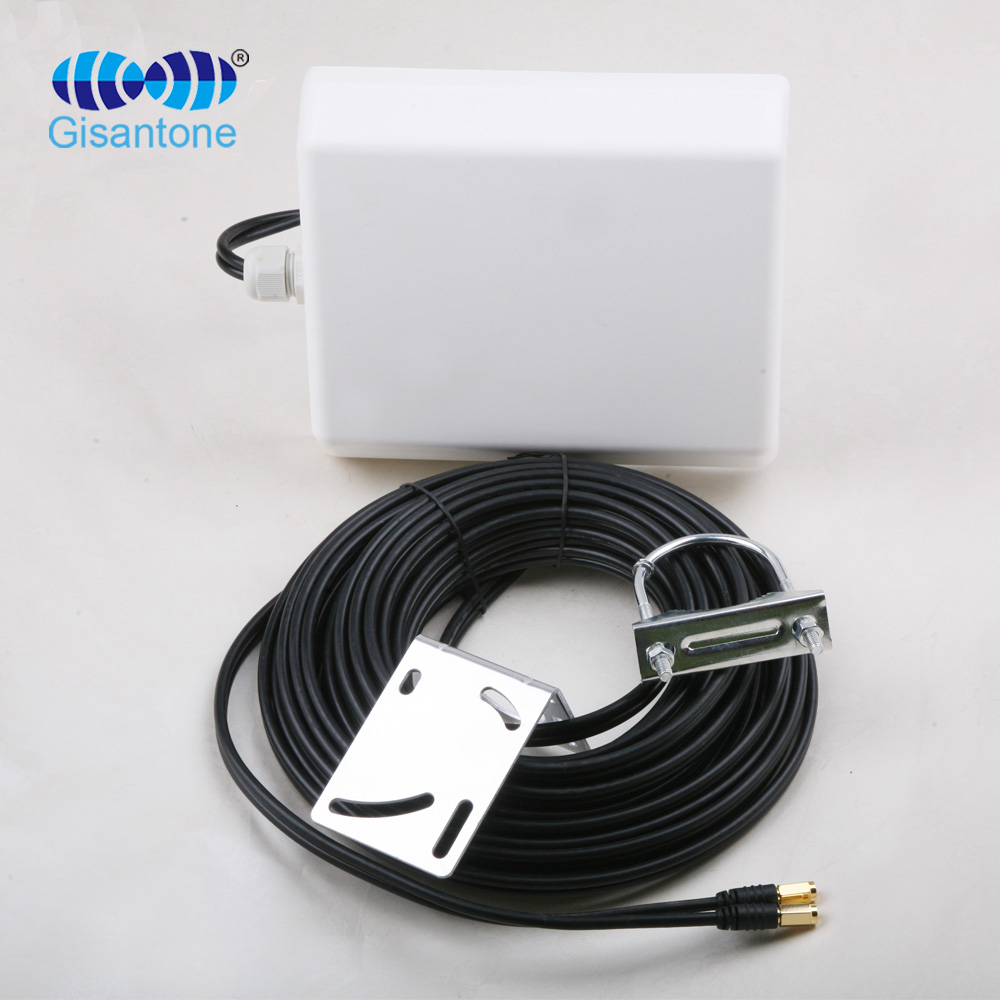

1710-2700MHz 9DBI MIMO panel antenna
- Model No.：
G15119B
- Frequency Range ：
1700-2700MHz
- Gain：
2*9DBI
- Cable Length：
2*15M

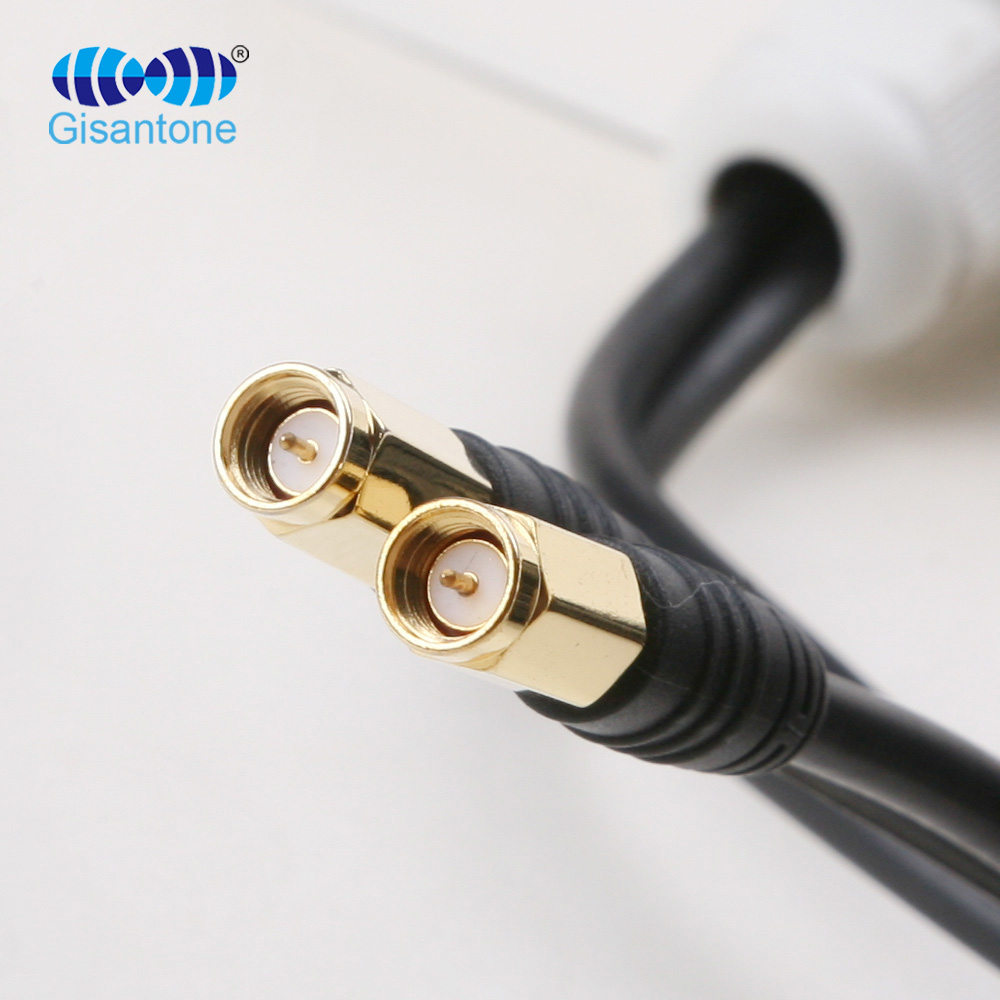

- Connector：
2*SMA male
|
Electrical Specifications |
|
|
Model No. |
G15119B |
|
Frequency Range |
1710-2700MHz |
|
Gain |
2*9Dbi |
|
VSWR |
≤1.5 |
|
Input Impedance |
50Ω |
|
Polarization |
± 450 |
|
Front to Back Ratio |
≥23dB |
|
Isolation |
≥-28dB |
|
Horizontal Half Power Angle |
75°±5 |
|
Vertical Half Power Angle |
65°±2 |
|
Max Input Power |
50W |
|
Lightning Protection |
DC Ground |
|
Mechanical Specifications |
|
|
Connector Type |
2*SMA male |
|
Cable Type |
RG58/U |
|
Cable Length |
15M |
|
Working Temperature |
-40℃~﹢65℃ |
|
Antenna Weight |
1kg |
|
Pole Diameter |
Φ35~φ55mm |
|
Size |
210*180*45mm |
|
Rated Wind Velocity |
210km/h |
|
Antenna cover material |
ABS |

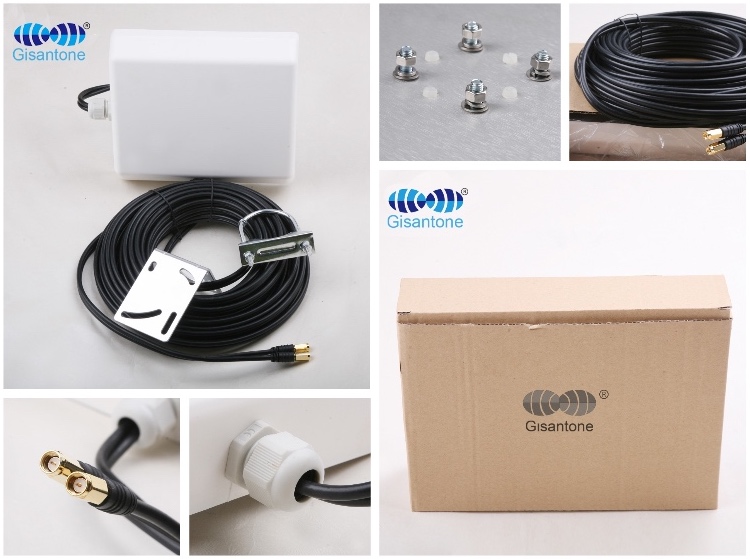

1710-2700MHz 9DBI MIMO panel antenna
