- Name：

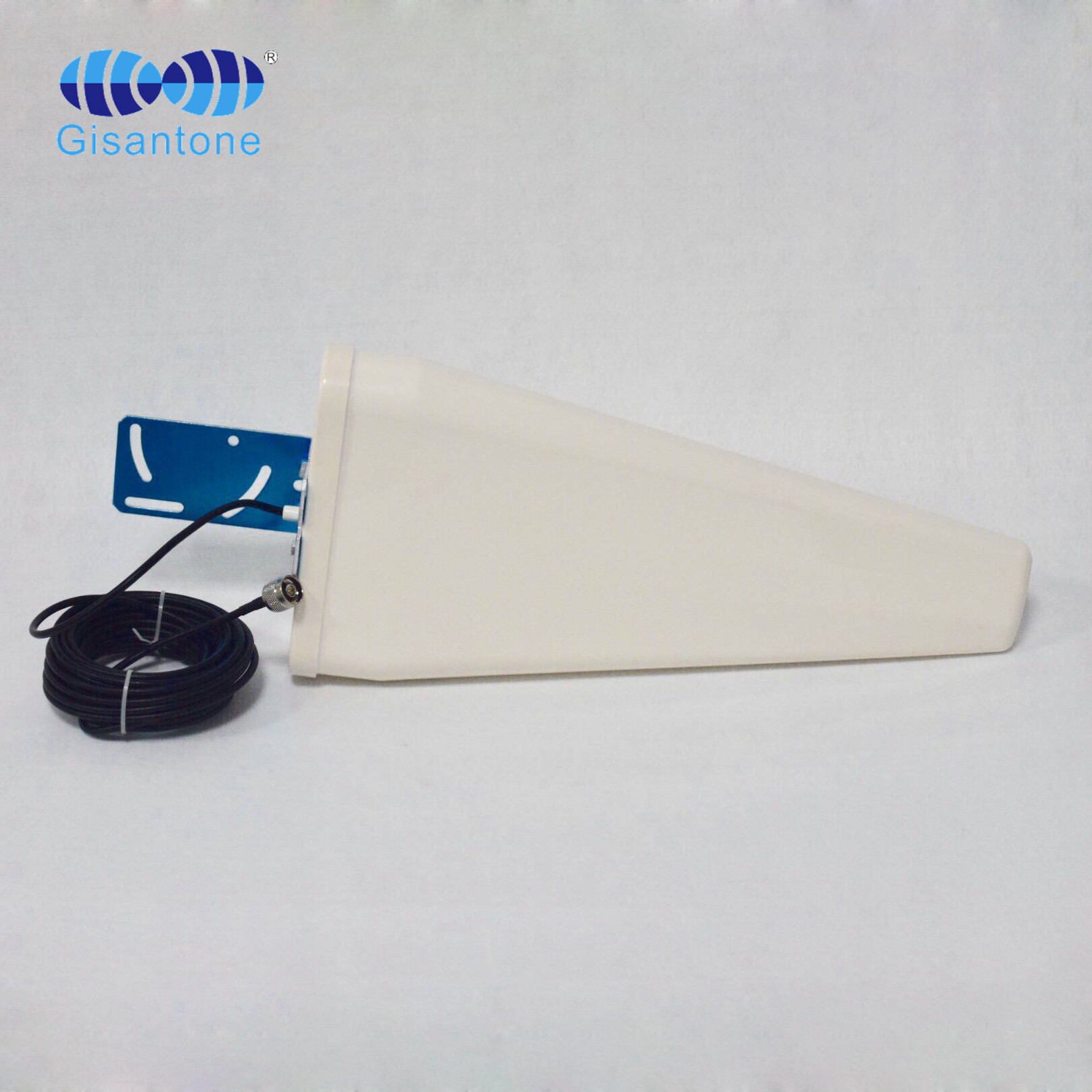

698/2700MHz 11/12DBI LPDA antenna
- Model No.：
G13104C
- Frequency Range ：
698-960/1710-2700MHz
- Gain：
11/12DBI
- Cable Length：
30CM RG58U

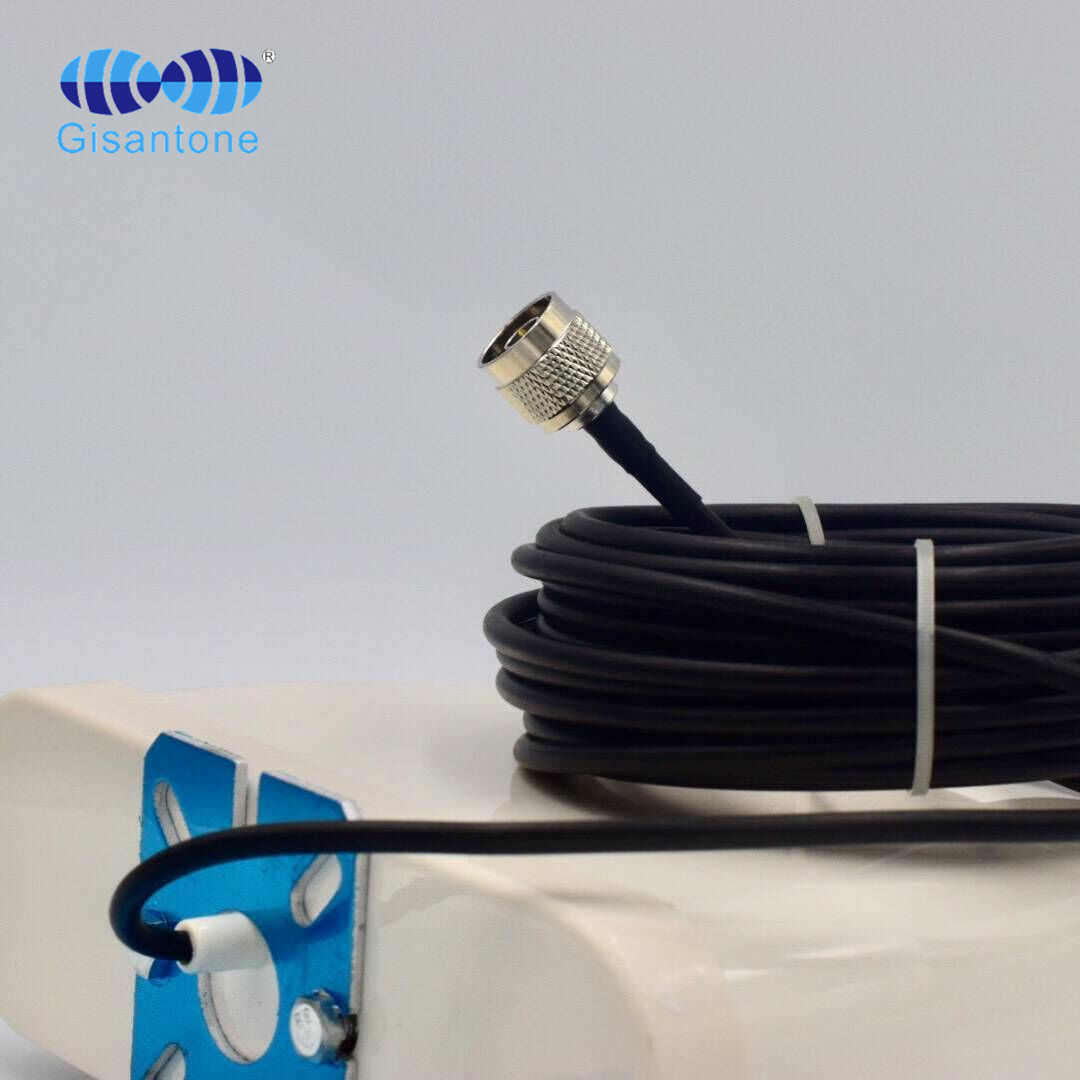

- Connector：
N male
|
Electrical Specifications |
|
|
Model No. |
G13104C |
|
Frequency Range |
698-960/1710-2700MHz |
|
Gain |
11/12dBi |
|
VSWR |
≤1.5 |
|
Input Impedance |
50Ω |
|
Polarization |
Vertical |
|
Horizontal Half Power Angle |
65/50° |
|
Vertical Half Power Angle |
45/35° |
|
PIMD 3th |
≤-85dBm（@2W） |
|
Max Input Power |
50W |
|
Lightning Protection |
DC Ground |
|
Mechanical Specifications |
|
|
Connector Type |
N-K |
|

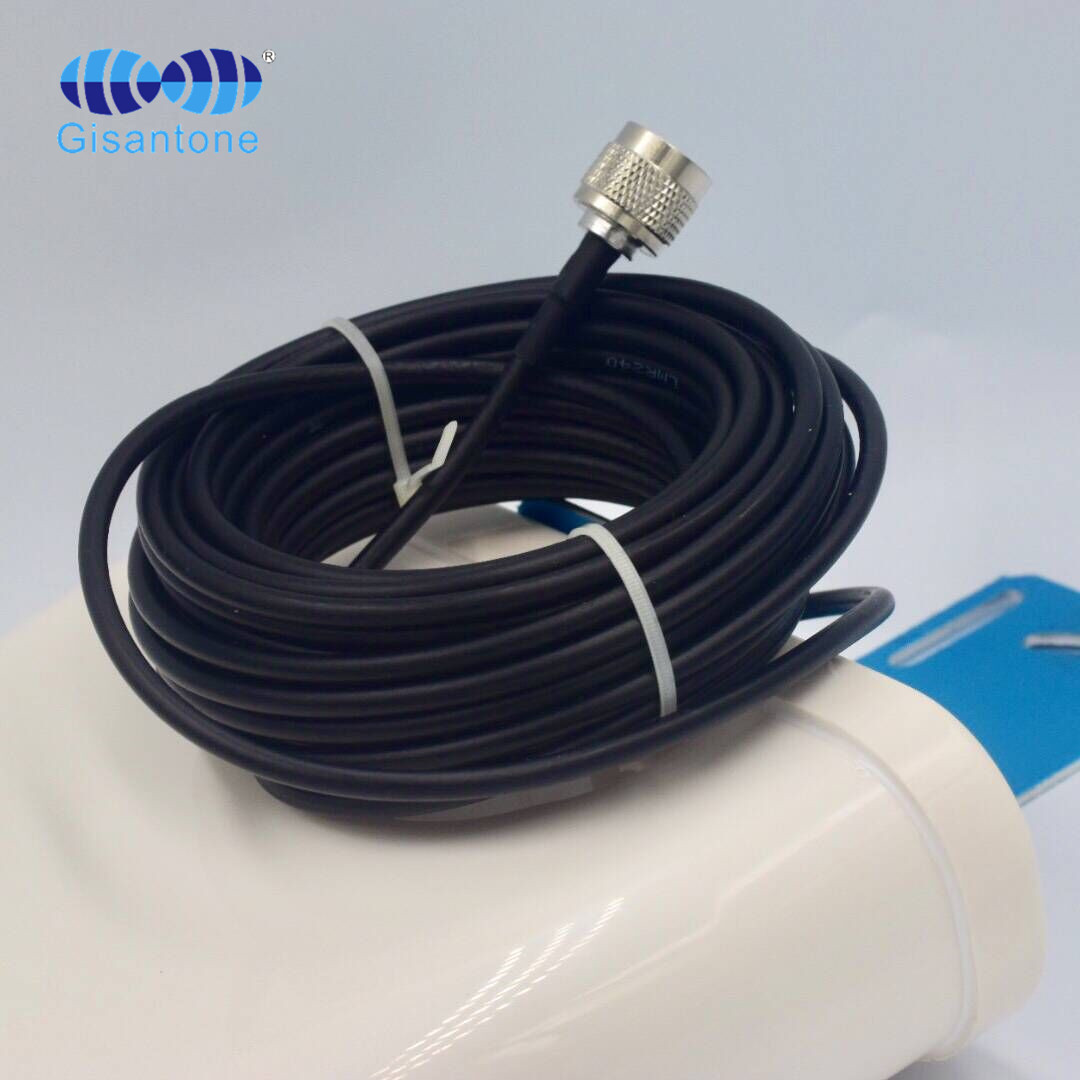

Cable Type |
RG58/U White |
|
Cable Length |
1M |
|
Working Temperature |
-40℃~﹢65℃ |
|
Antenna Weight |
600g |
|
Size |
440x205x60mm |
|

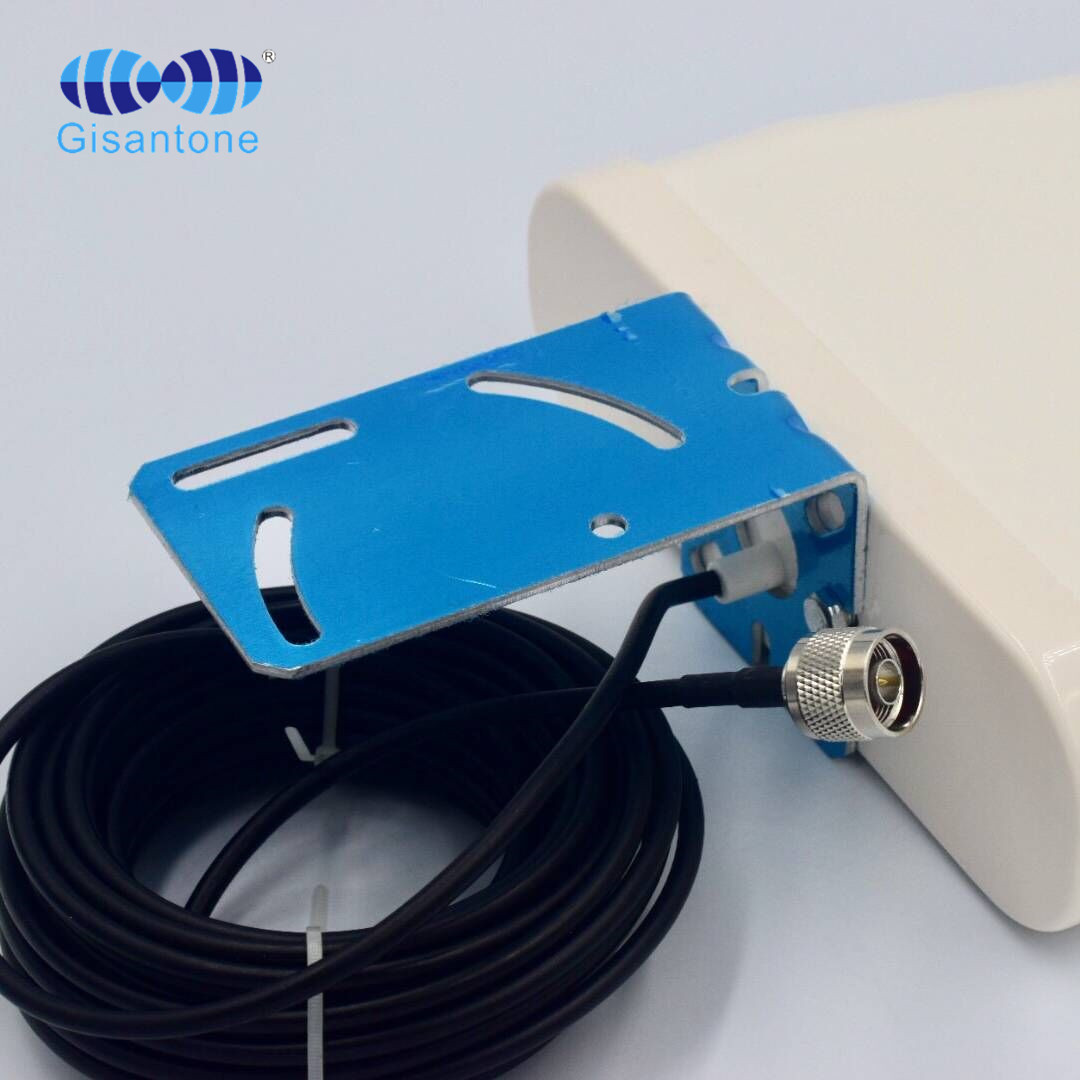

Pole Diameter |
Φ38~55mm |
|
Rated Wind Velocity |
210km/h |
|
Antenna Cover Material |
ABS |
|
Color |
White |
|
Package Size |
79*59*45.5CM / 20PCS |
|
Weight |
16.8KG |
698/2700MHz 11/12DBI LPDA antenna
