- Name：

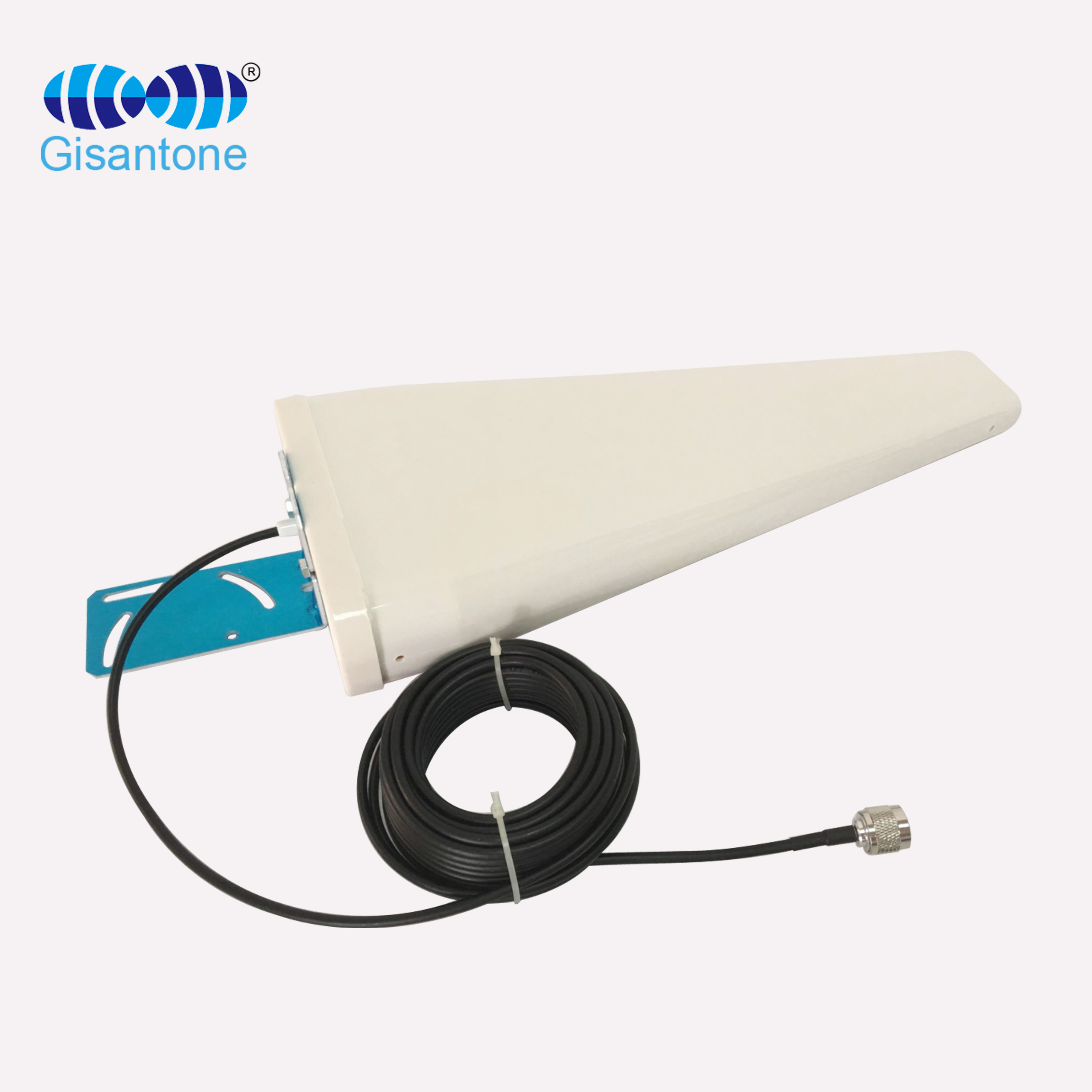

806-2700 10/11DBI LPDA antenna
- Model No.：
G13109B
- Frequency Range ：
806-960/1710-2700MHz
- Gain：
10/11DBI
- Cable Length：
30CM RG58U
- Connector：
N male
|
Electrical Specifications |
|
|
Model No. |
G13109B |
|
Frequency Range |
806-960/1710-2700MHz |
|
Gain |
10/11dBi |
|
VSWR |
≤1.5 |
|
Input Impedance |
50Ω |
|
Polarization |
Vertical |
|
Horizontal Half Power Angle |
65/50° |
|
Vertical Half Power Angle |
45/35° |
|
PIMD 3th |
≤-85dBm（@2W） |
|
Max Input Power |
50W |
|
Lightning Protection |
DC Ground |
|
Mechanical Specifications |
|
|
Connector Type |
N-K |
|
Cable Type |
RG58/U White |
|
Cable Length |
30CM |
|
Working Temperature |
-40℃~﹢65℃ |
|
Antenna Weight |
490g |
|
Size |
450x215x65mm |
|
Pole Diameter |
Φ38~55mm |
|
Rated Wind Velocity |
210km/h |
|
Antenna Cover Material |
ABS |
|
Color |
White |
|
Package Size |
79*59*45.5CM / 20PCS |
|
Weight |
16.8KG |
806-2700 10/11DBI LPDA antenna
