- Name：

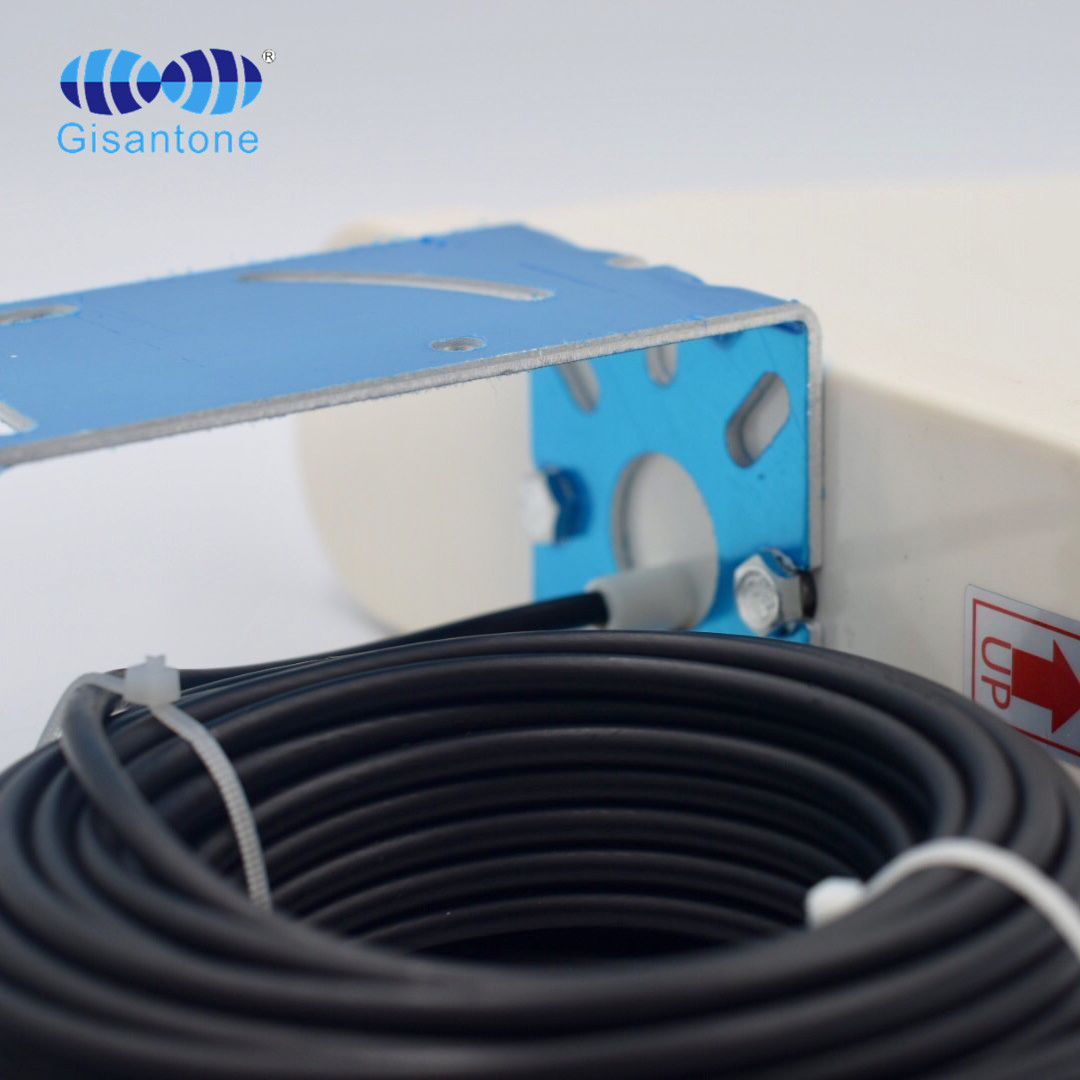

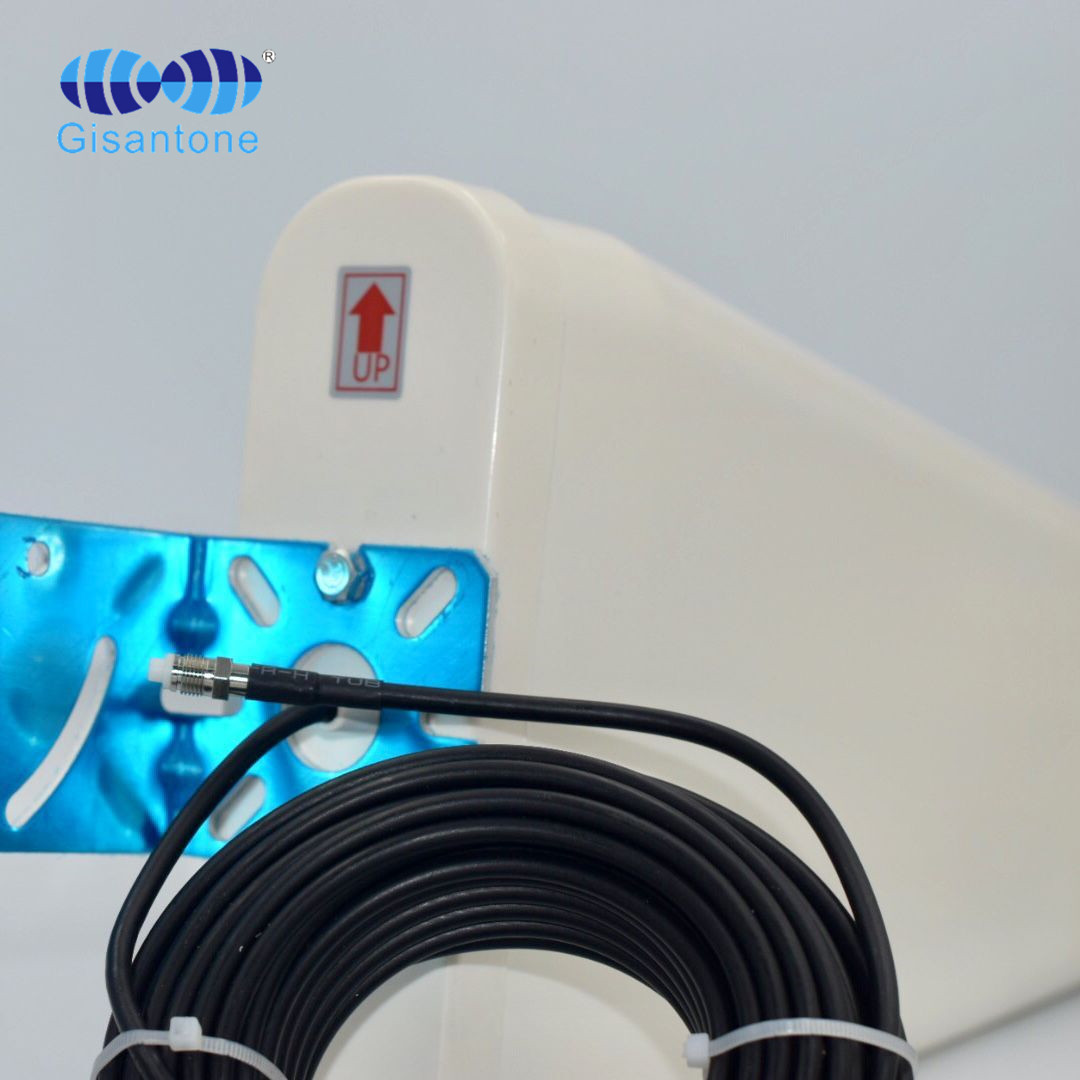

806-2700MHz 11/12DBI FME LPDS antenna
- Model No.：
G13102H
- Frequency Range ：
806-960/1710-2700MHz
- Gain：
11/12DBI
- Cable Length：
10M LMR200

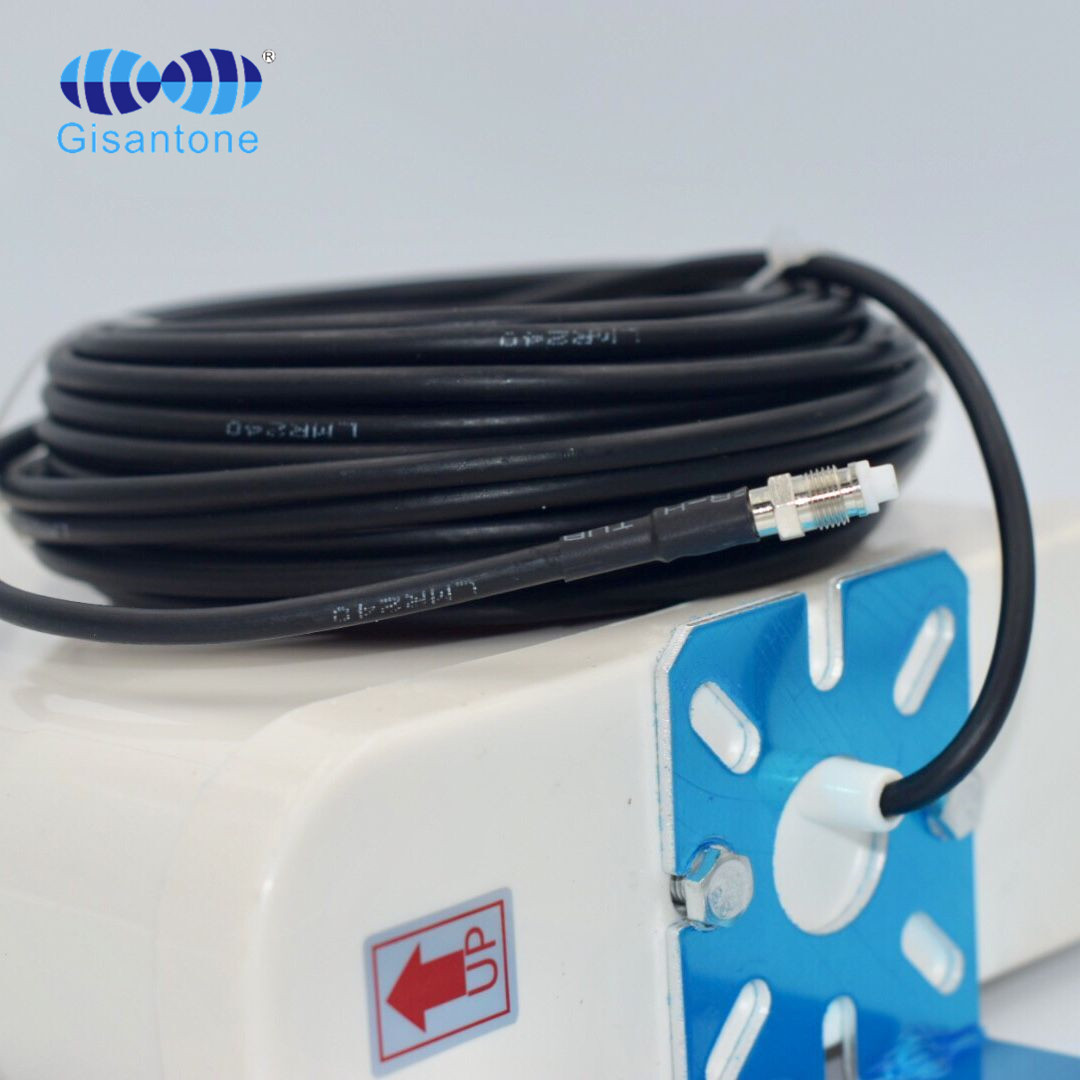

- Connector：
FME female
|
Electrical Specifications |
||
|
Model No. |
G13102H |
|
|
Frequency Range |
806-960/1710-2700MHz |
|
|
Gain |
11/12dBi |
|
|
VSWR |
≤1.5 |
|
|
Input Impedance |
50Ω |
|
|
Polarization |
Vertical |
|
|
Horizontal Half Power Angle |
60° |
50° |
|
Vertical Half Power Angle |
45° |
35° |
|
PIMD 3th |
≤-85dBm（@2W） |
|
|
Max Input Power |
100W |
|
|
Lightning Protection |
DC Ground |
|
|
Mechanical Specifications |
||
|
Connector Type |
FME female |
|
|
Cable Type |
LMR200 Black |
|
|
Cable Length |
10M |
|
|
Working Temperature |
-40℃~﹢65℃ |
|
|
Antenna Weight |
750g |
|
|
Size |
440x205x60mm |
|
|
Pole Diameter |
Φ38~55mm |
|
|
Rated Wind Velocity |
210km/h |
|
|
Antenna Cover Material |
ABS |
|
|
Package Size |
79*59*45.5CM / 20PCS |
|
|
Weight |
16.8KG |
|
