- Name：

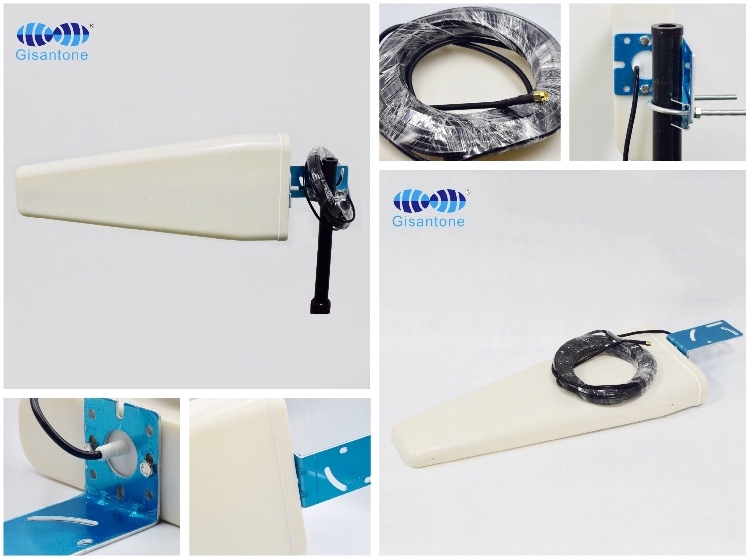

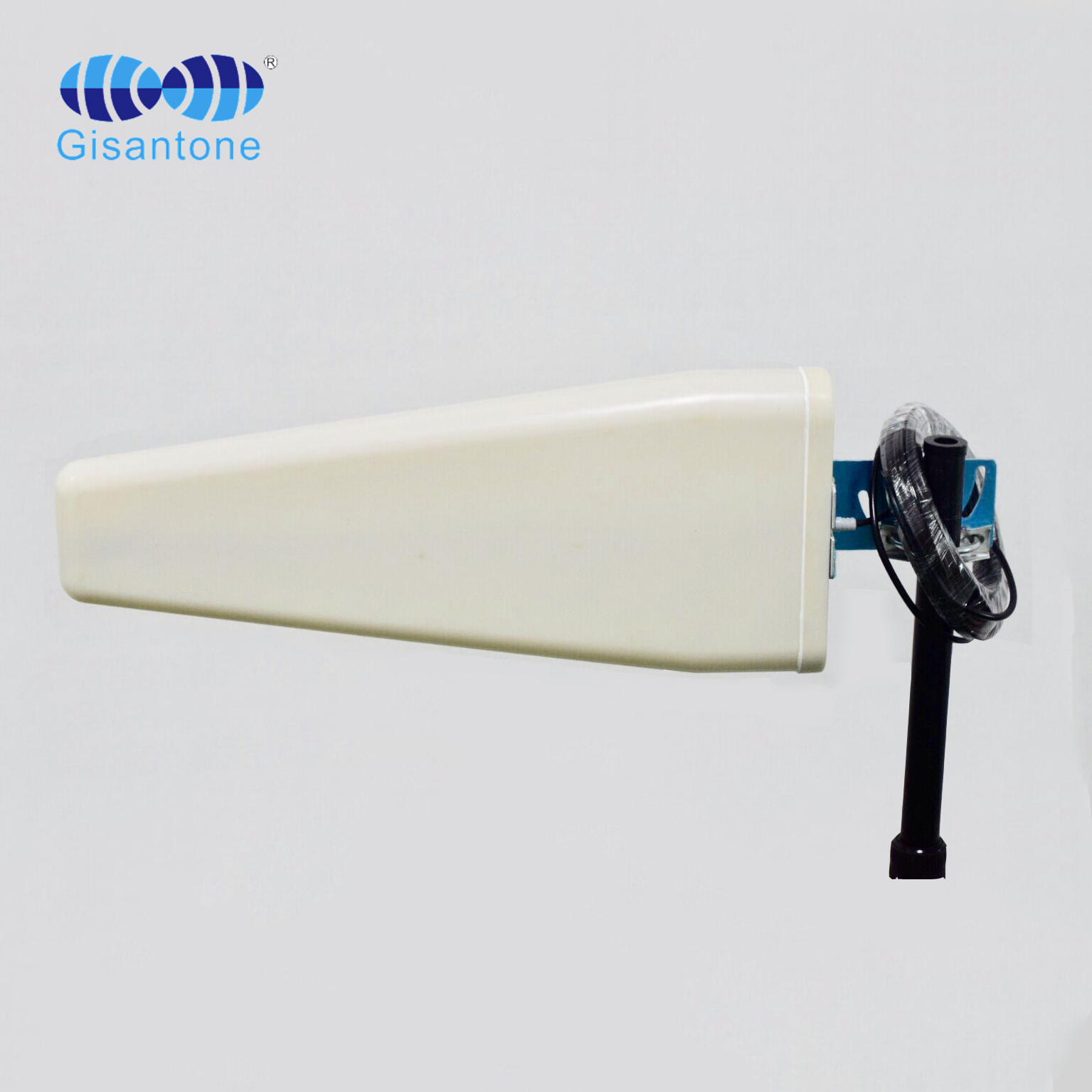

4G 12DBI LPDA antenna 10M SMA port
- Model No.：
G13103F
- Frequency Range ：
698-960/1710-2700MHz
- Gain：
12DBI
- Cable Length：
10M RG58U Black
- Connector：
SMA male
|
Electrical Specifications |
||
|
Model No. |
G13103F |
|
|
Frequency Range |
698-960MHz |
1710-2700MHz |
|
Gain |
12dBi |
|
|
VSWR |
≤1.5 |
|
|
Input Impedance |
50Ω |
|
|
Polarization |
Vertical |
|
|
Horizontal Half Power Angle |
60° |
50° |
|
Vertical Half Power Angle |
45° |
35° |
|
Max Input Power |
50W |
|
|
Lightning Protection |
DC Ground |
|
|
Mechanical Specifications |
||
|
Working Temperature |
-40℃~﹢65℃ |
|
|
Connector Type |
SMA male |
|
|

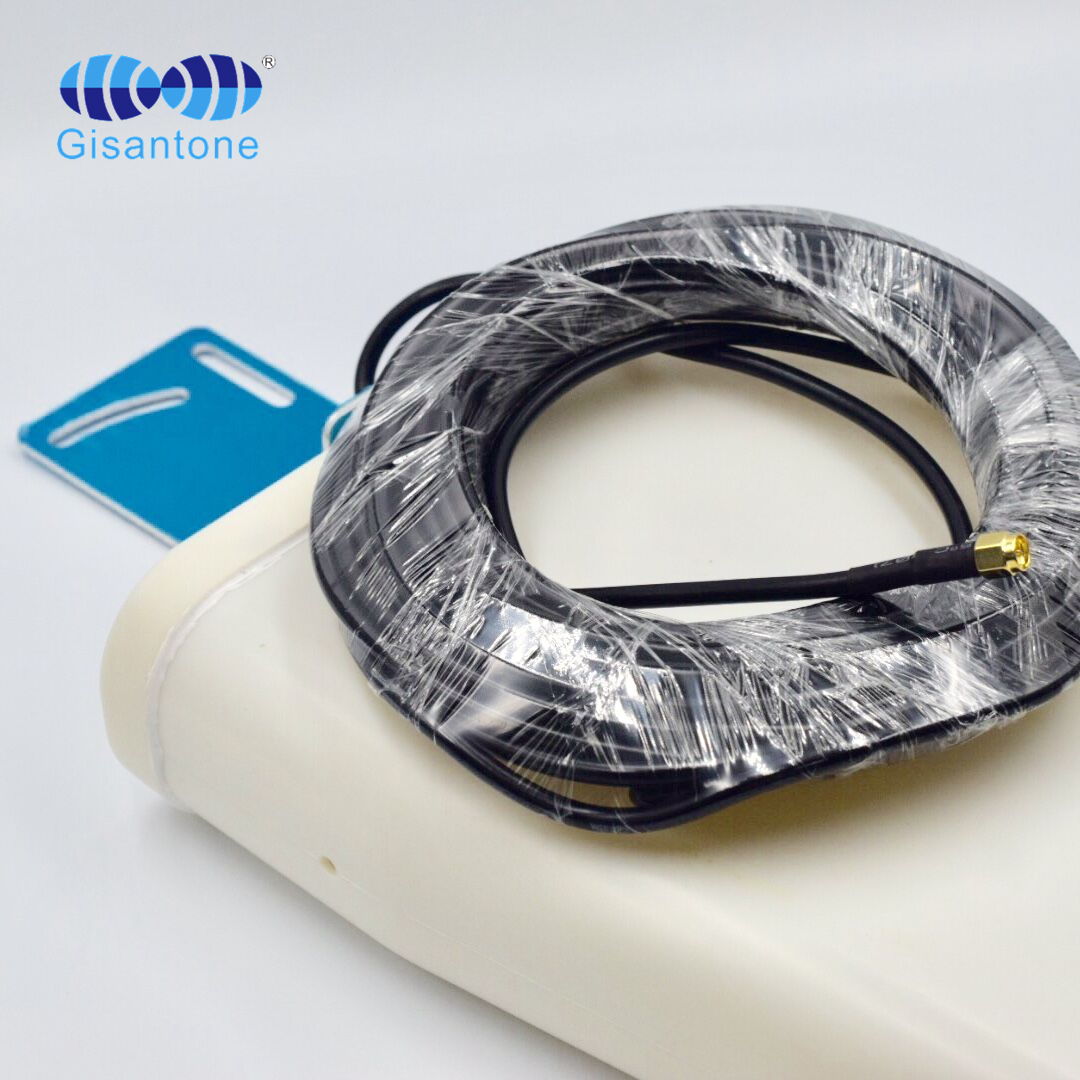

Cable Type |
RG58U Black |
|
|
Cable Length |
10M |
|
|
Antenna Weight |
1.1kg |
|
|
Size |
510x210x70mm |
|
|

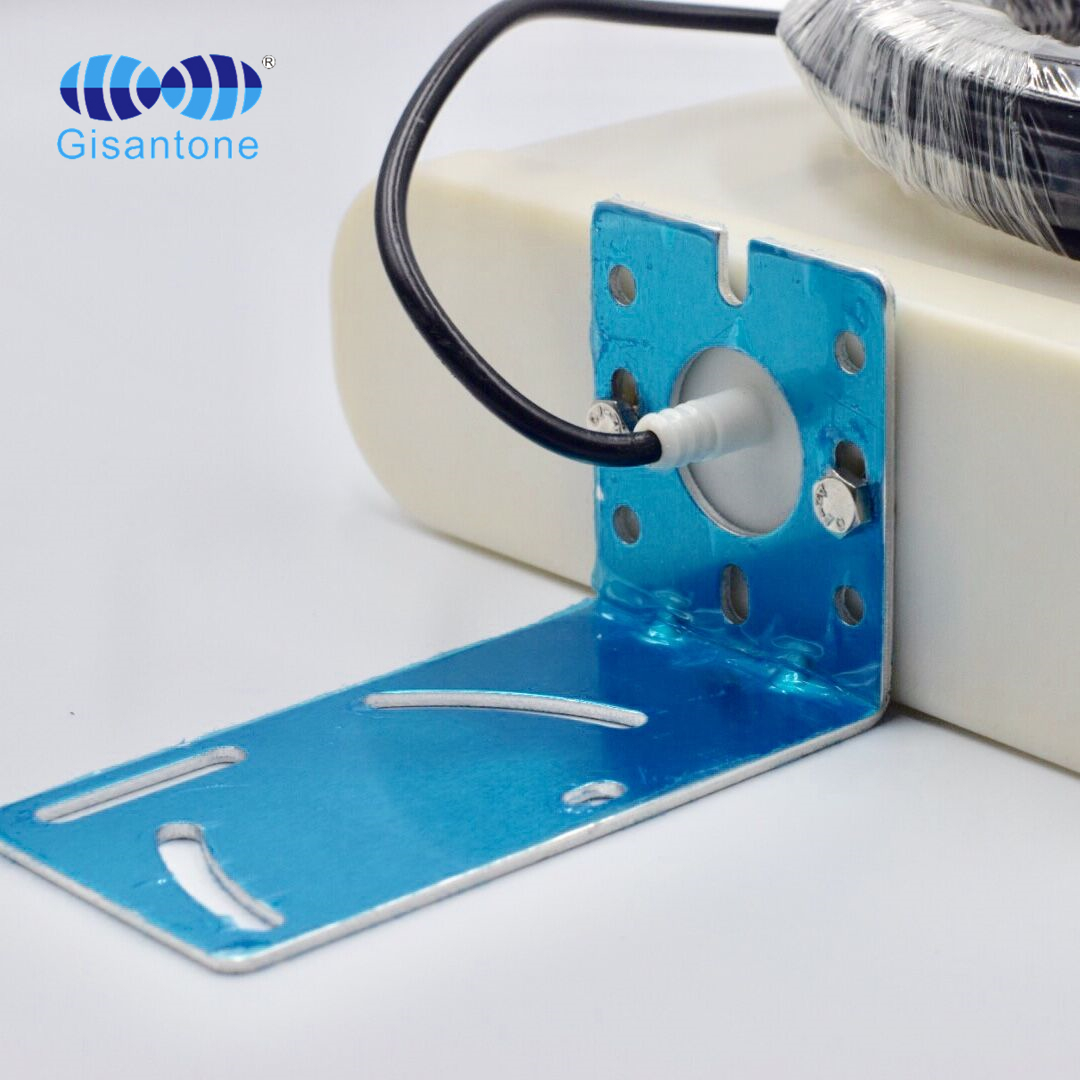

Pole Diameter |
Φ35~55mm |
|
|
Rated Wind Velocity |
210km/h |
|
|

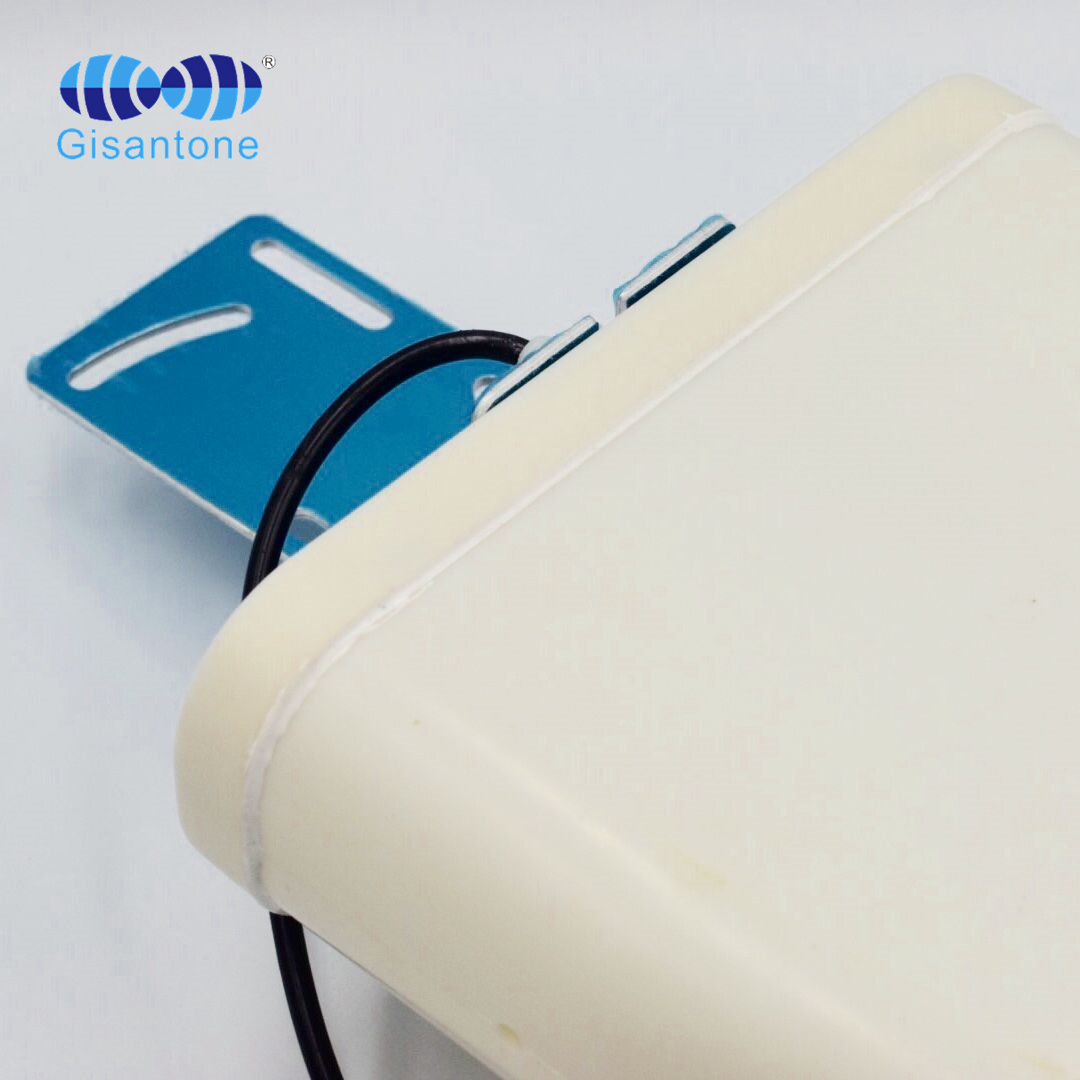

Antenna Cover Material |
ABS |
|
|
Color |
White |
|
|
Package Size |
80*67*46CM / 20PCS |
|
|
Weight |
23.8KG |
|
4G 12DBI LPDA antenna 10M SMA port
