- Name：

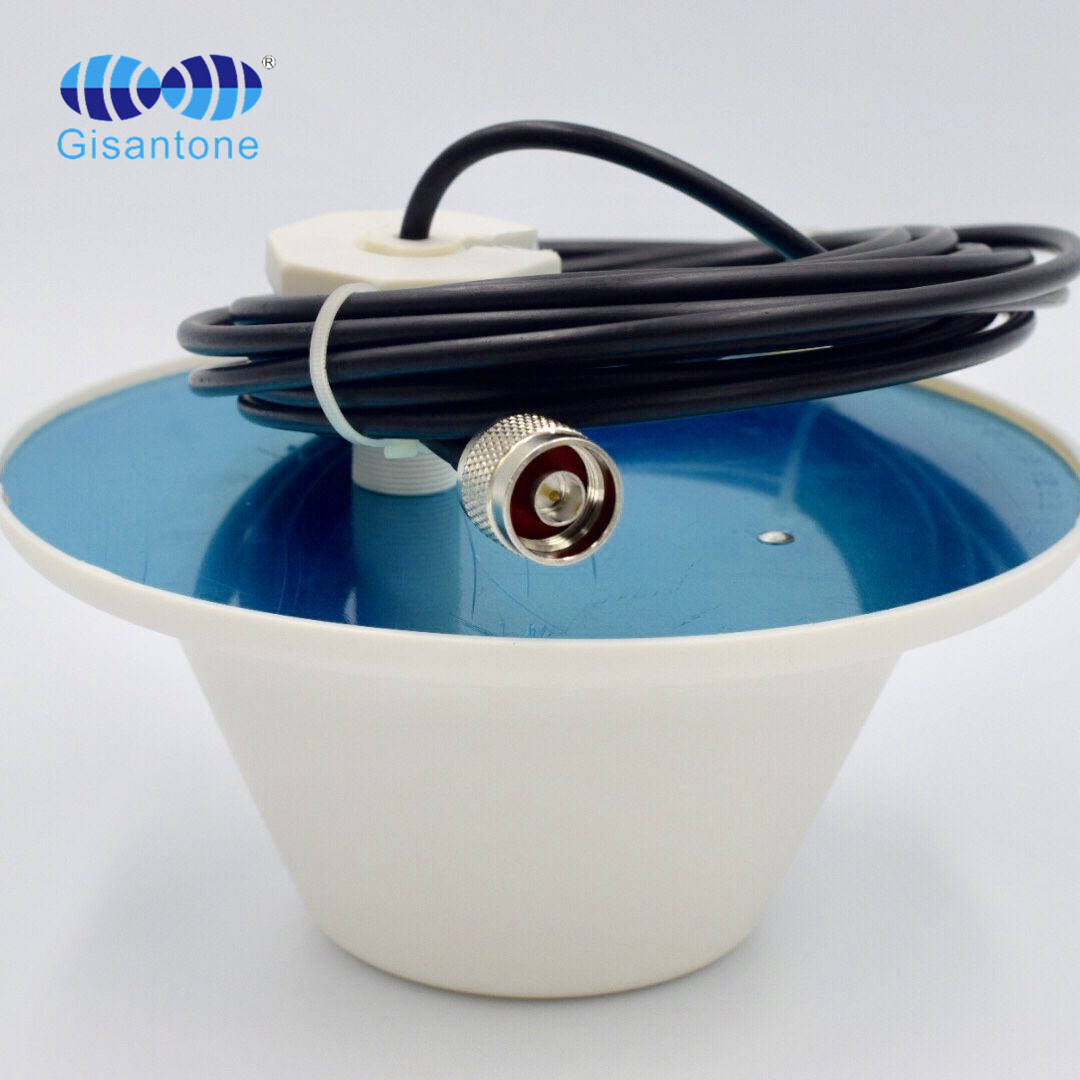

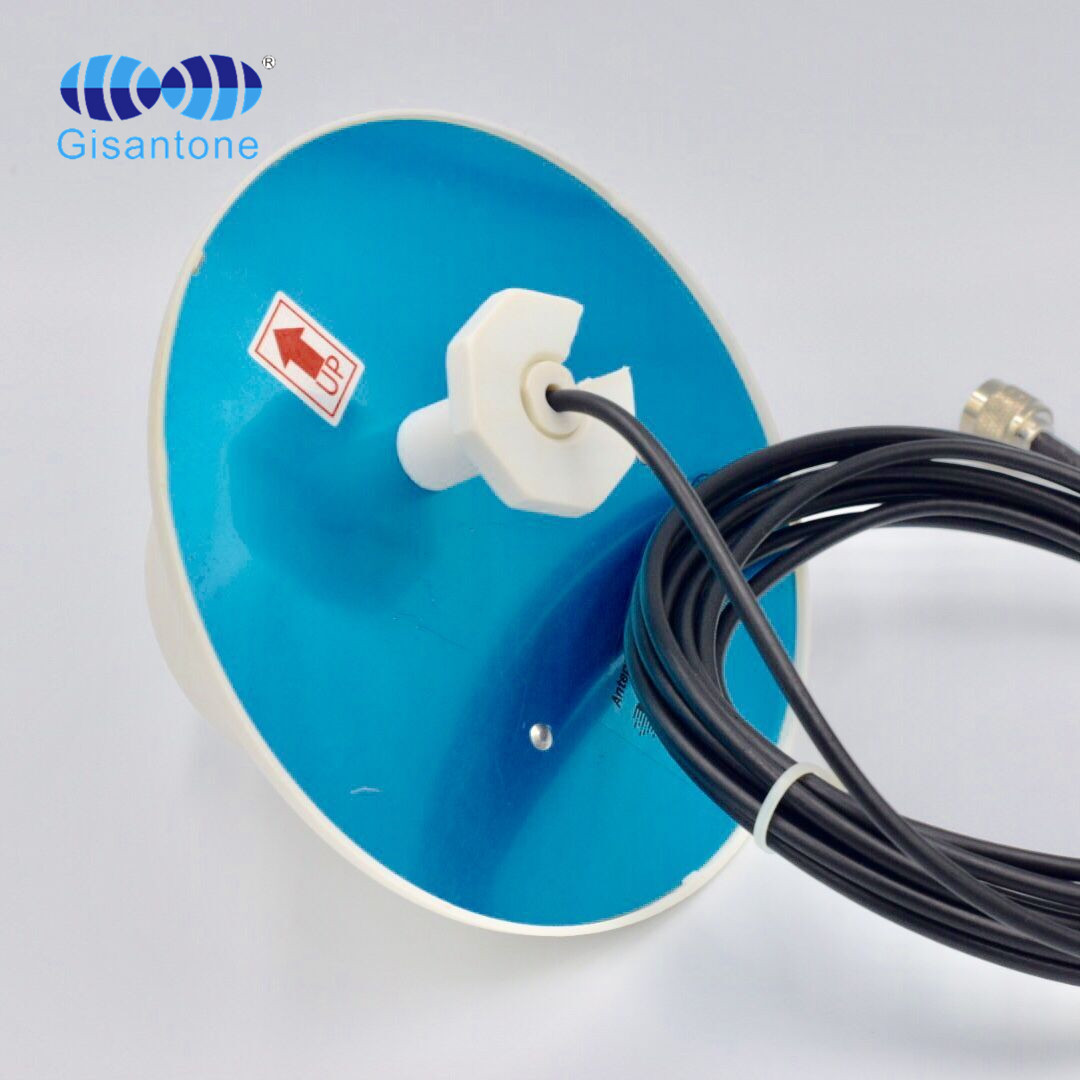

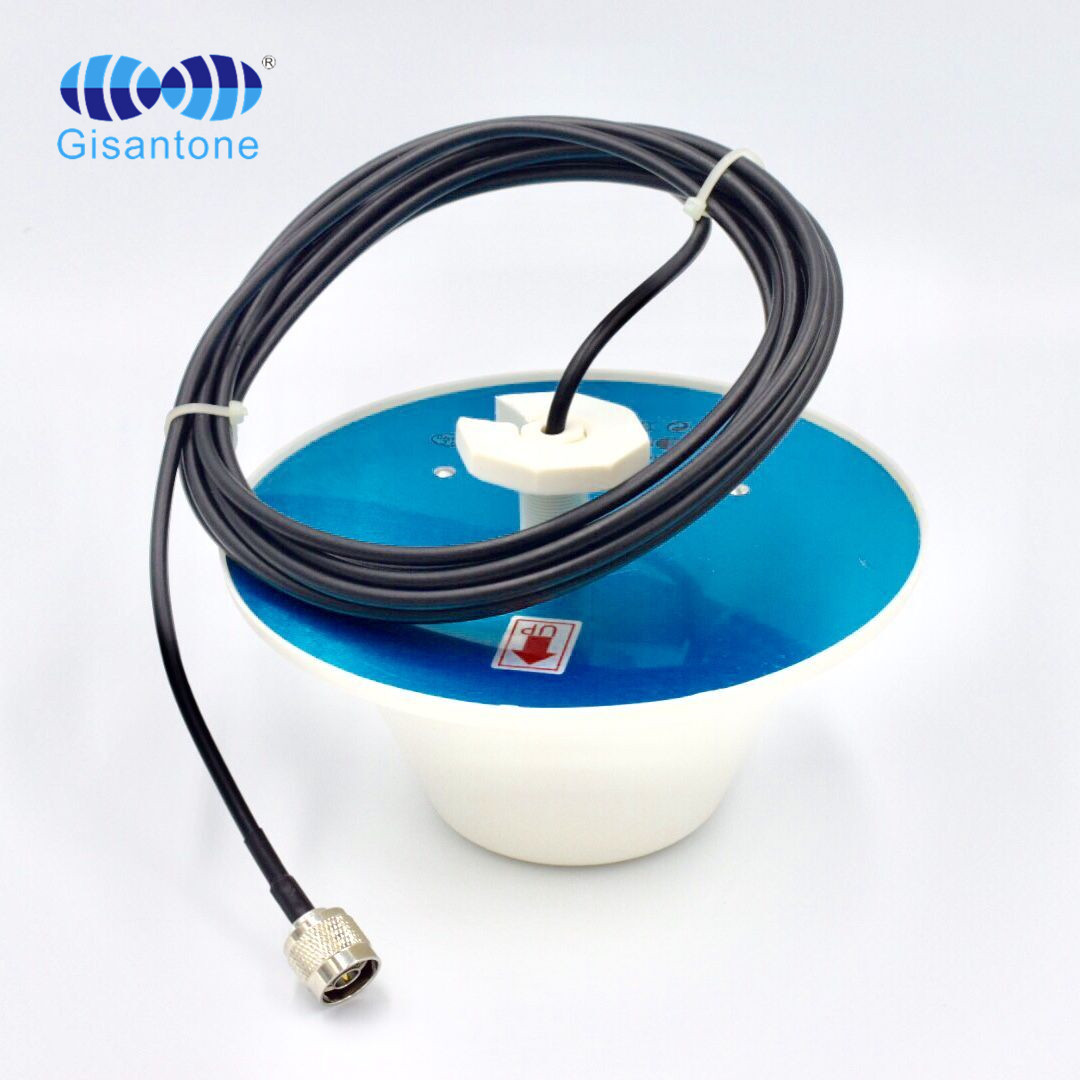

806-2700MHz 5/7DBI ceiling antenna
- Model No.：
G15605C
- Frequency Range ：
806-960/1710-2700MHz
- Gain：
5/7DBI
- Cable Length：
5M LMR200 Black

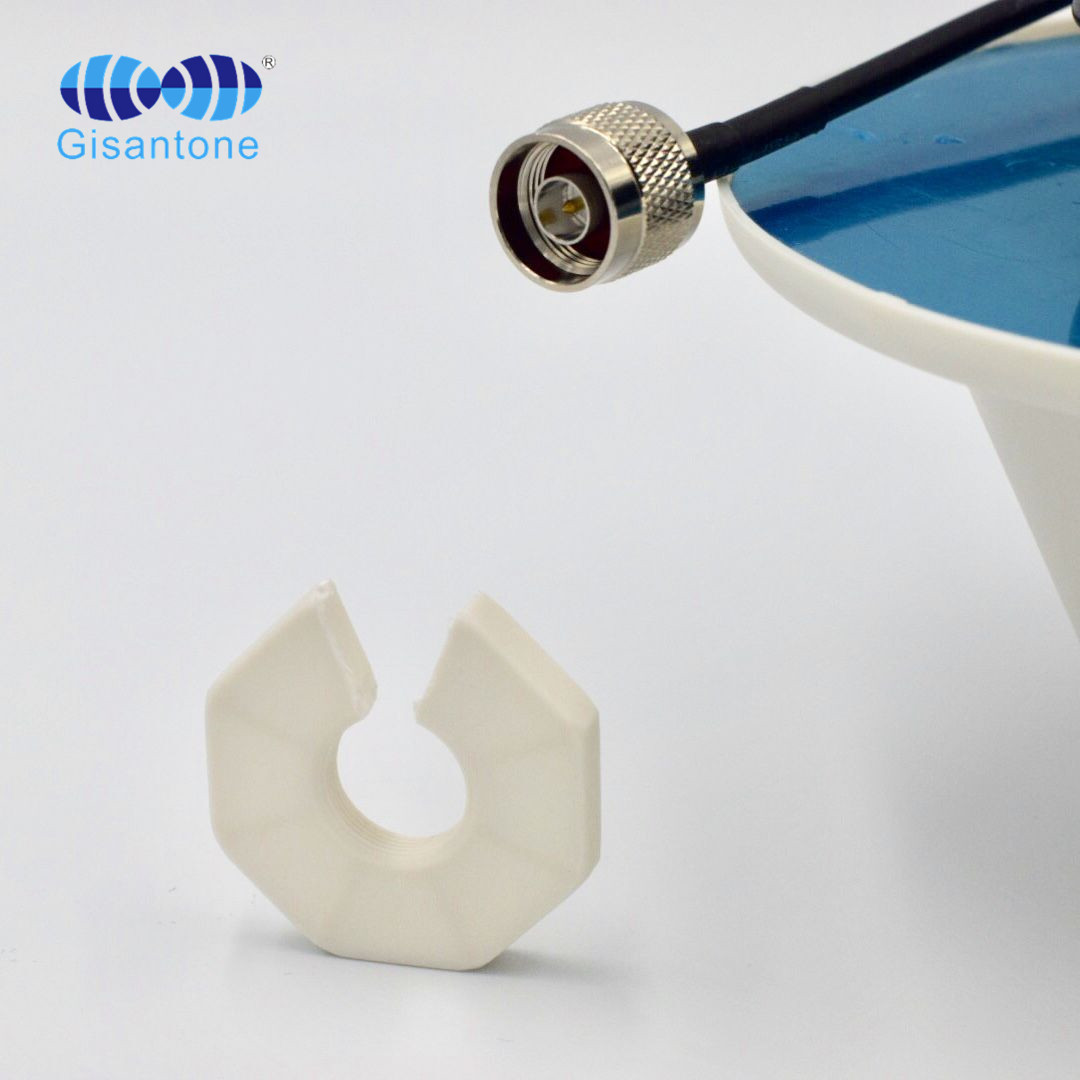

- Connector：
N male
|
Electrical Specifications |
||
|
Model No. |
G15605C |
|
|
Frequency Range |
806-960MHz |
1710-2700MHz |
|
Gain |
5/7Dbi |
|
|
VSWR |
≤1.5 |
|
|
Input Impedance |
50Ω |
|
|
Polarization |
Vertical |
|
|
Horizontal Half Power Angle |
100° |
|
|
Vertical Half Power Angle |
78° |
|
|
Max Input Power |
100W |
|
|
Lightning Protection |
DC Ground |
|
|
Mechanical Specifications |
||
|
Connector Type |
N-male |
|
|
Cable Type |
LMR200 Black |
|
|
Cable Length |
5M |
|
|
Working Temperature |
-40℃~﹢65℃ |
|
|
Antenna Weight |
0.29kg |
|
|
Size |
Φ185*85mm |
|
|
Antenna cover material |
ABS |
|
|
Color |
White |
|
806-2700MHz 5/7DBI ceiling antenna
