- Name：

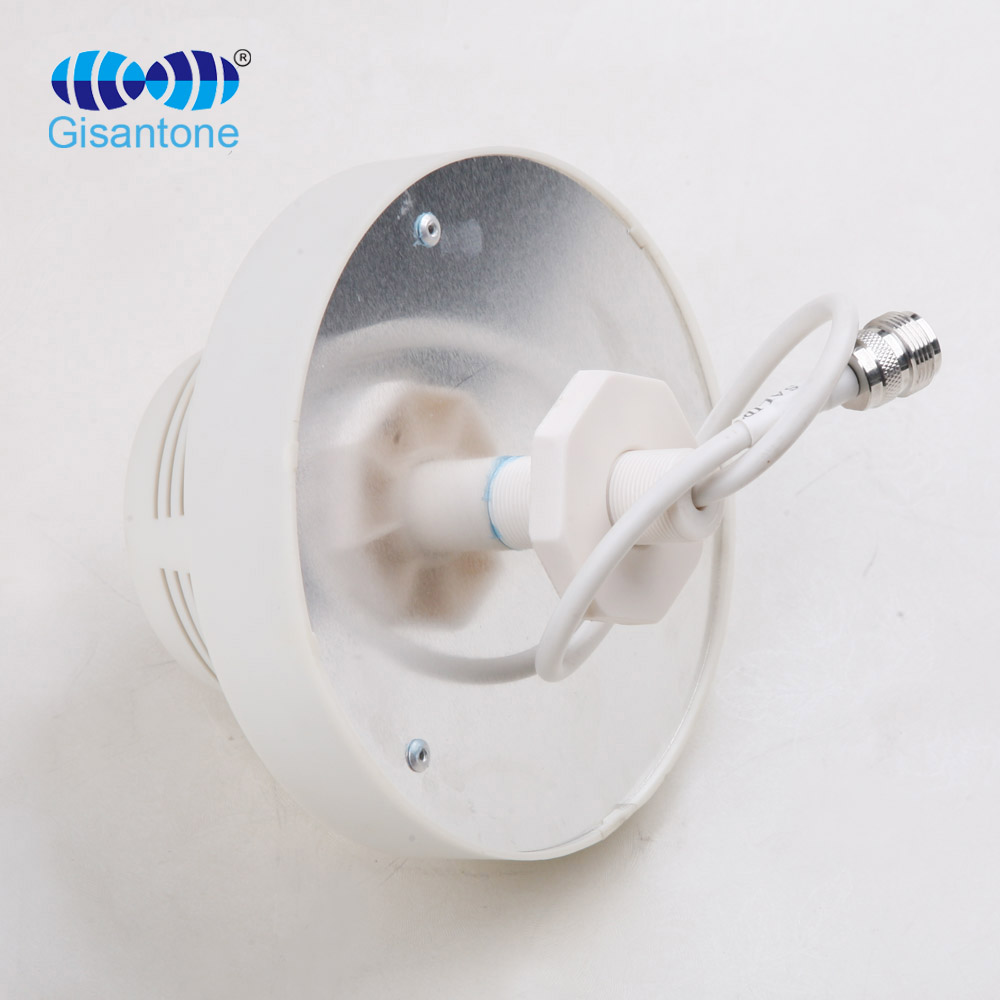

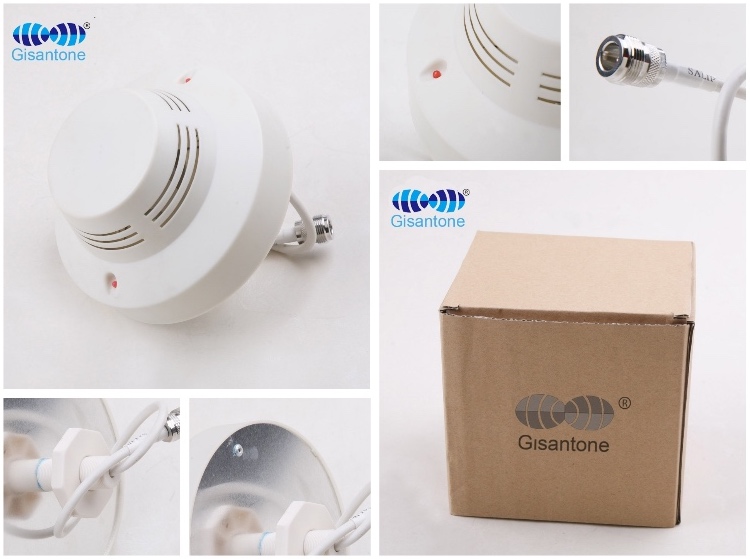

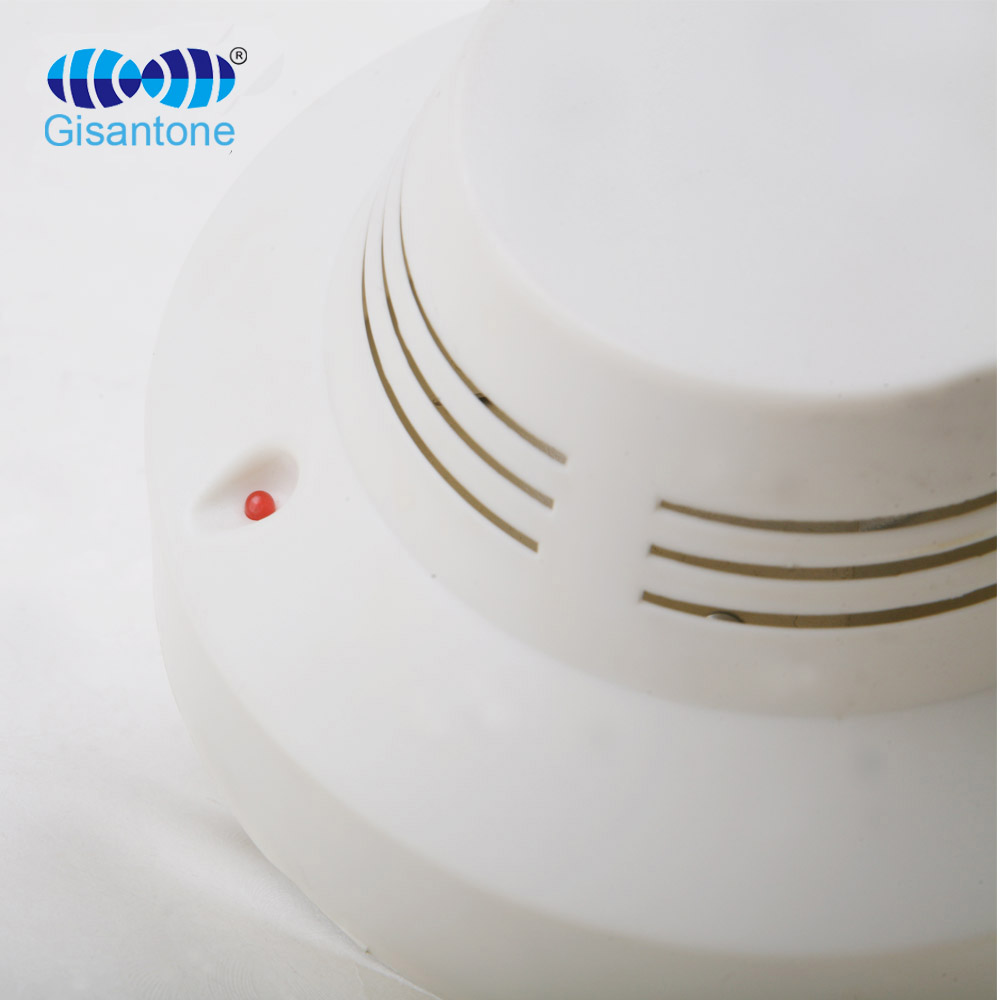

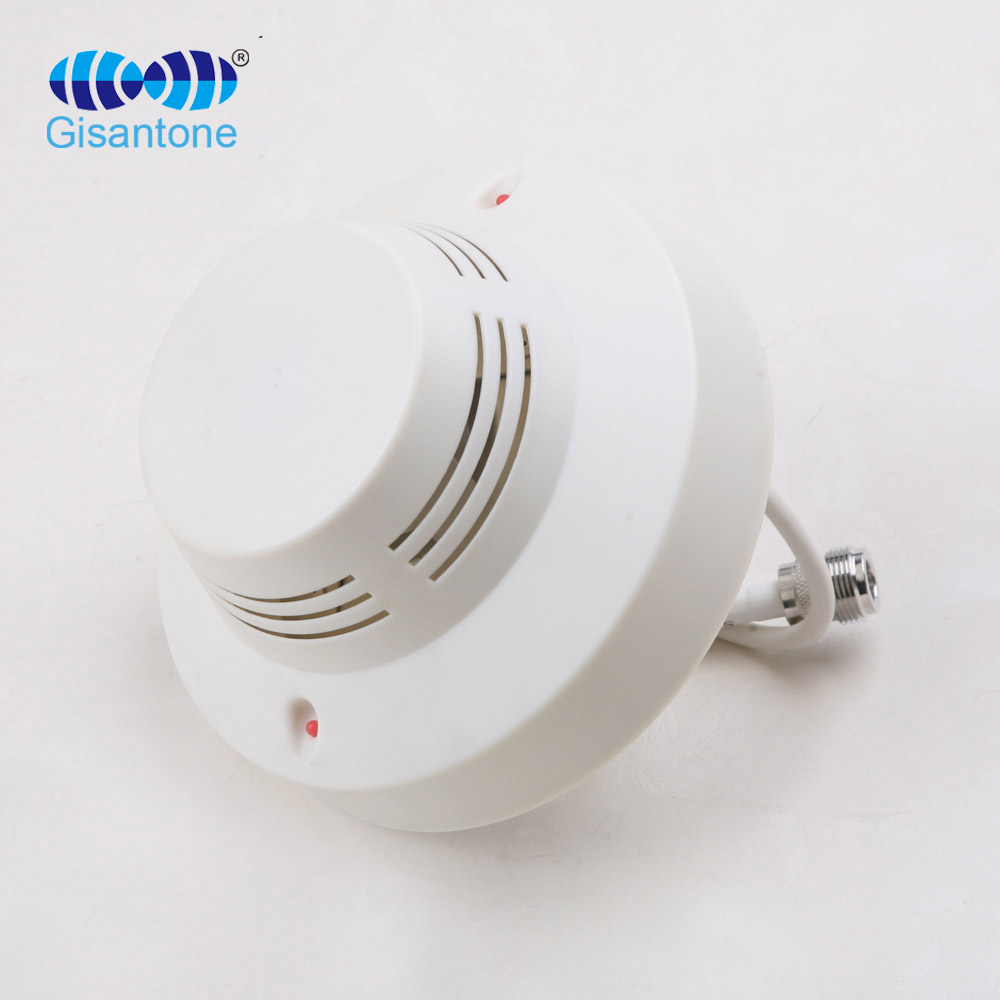

824/2700MHz Indoor ceiling antenna
- Model No.：
G15631A
- Frequency Range ：
824-960/1710-2700MHz
- Gain：
2/5DBI
- Cable Length：
30CM RG58U
- Connector：
N female
|
Electrical Specifications |
||
|
Model NO. |
G15631A |
|
|
Frequency Range |
824-960/1710-2700MHz |
|
|
Gain |
2dBi |
5dBi |
|
VSWR |
≤1.5 |
|
|
Input Impedance |
50Ω |
|
|
Polarization |
Vertical |
|
|
Horizontal Half Power Angle |
360° |
|
|
Vertical Half Power Angle |
100° |
50° |
|
Max Input Power |
50W |
|
|
Lightning Protection |
DC Ground |
|
|
Mechanical Specifications |
||
|
Connector Type |
N-K |
|
|
Cable Type |
RG58U White |
|
|
Cable Length |
30CM |
|
|
Working Temperature |
-40℃~﹢65℃ |
|
|
Antenna Weight |
135g |
|
|
Size |
Φ133x70mm |
|
|
Antenna Cover Material |
ABS |
|
|
Color |
White |
|
|
Package Size |
/ |
|
|
Weight |
/ |
|
824/2700MHz Indoor ceiling antenna
