- Name：

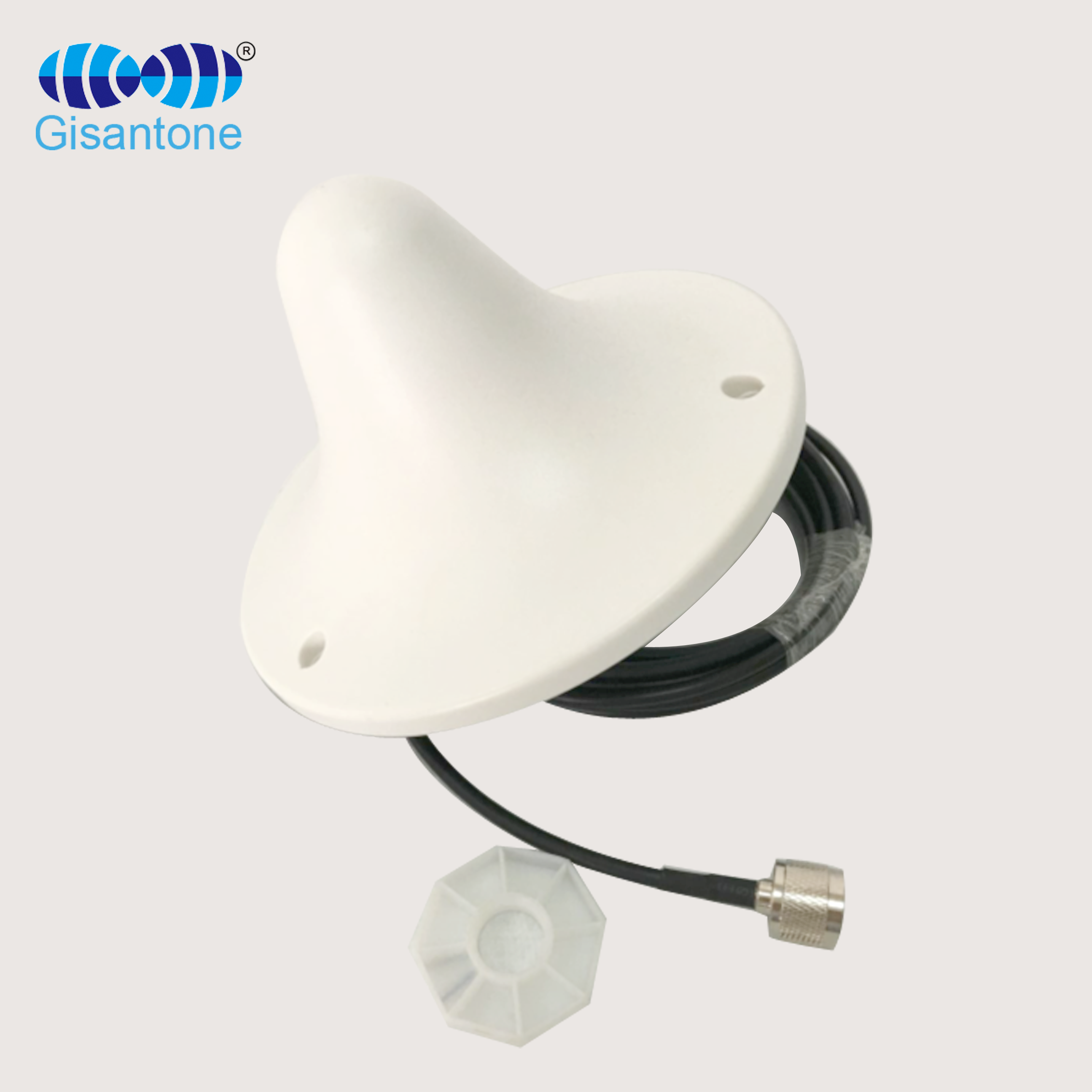

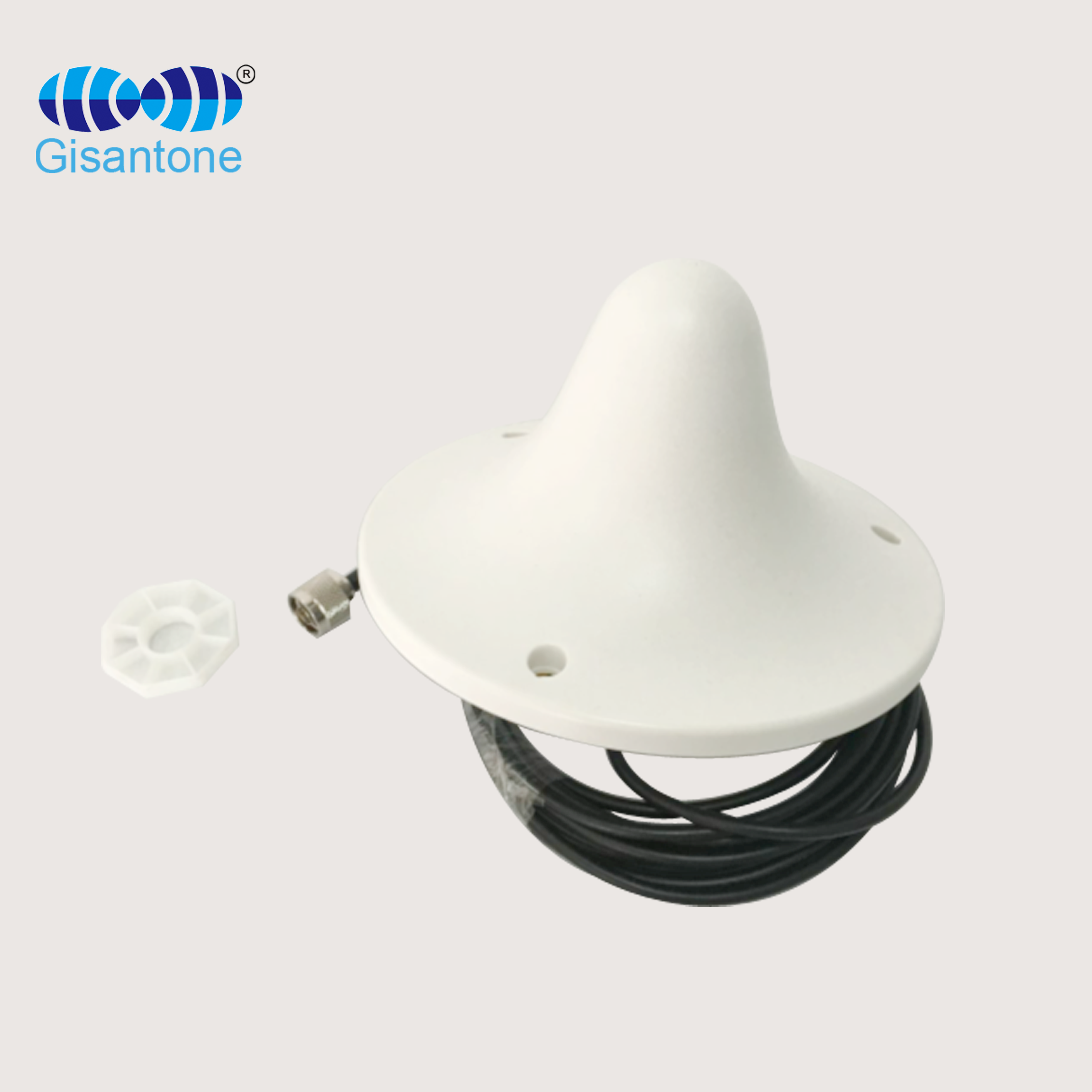

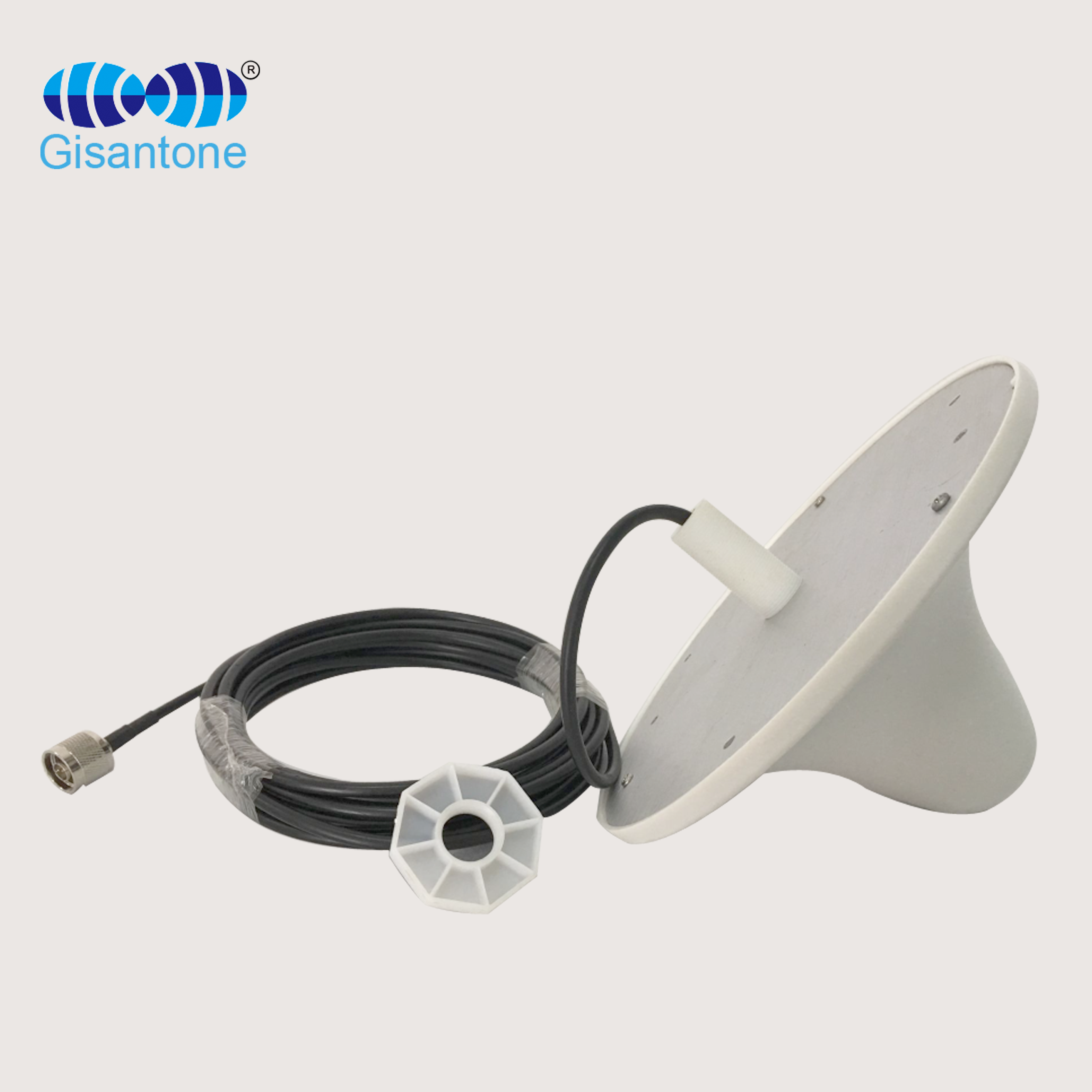

5m LMR200 ceiling antenna N port
- Model No.：
G15622D
- Frequency Range ：
806-960/1710-2700MHz
- Gain：
2/4DBI
- Cable Length：
5M LMR200 Black

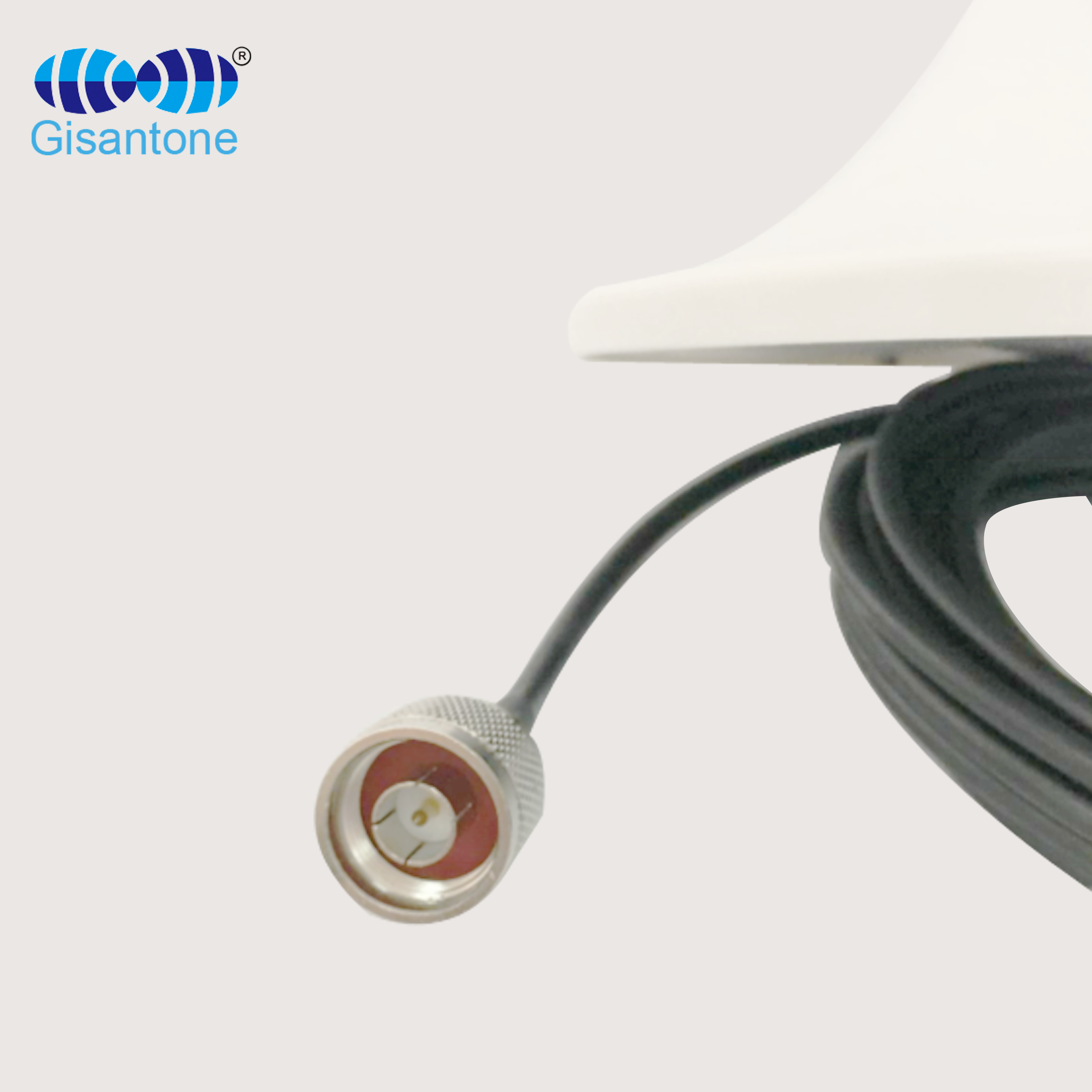

- Connector：
N male
|
Electrical Specifications |
||
|
Model NO. |
G15622D |
|
|
Frequency Range |
806-960/1710-2700MHz |
|
|
Gain |
2dBi |
4dBi |
|
VSWR |
≤1.5 |
|
|
Input Impedance |
50Ω |
|
|
Polarization |
Vertical |
|
|
Horizontal Half Power Angle |
360° |
|
|
Vertical Half Power Angle |
85° |
50° |
|
PIMD 3th |
≤-140dBC（@2W*33dBm） |
|
|
Max Input Power |
50W |
|
|
Lightning Protection |
DC Ground |
|
|
Mechanical Specifications |
||
|
Connector Type |
N-J |
|
|
Cable Type |
LMR200 Black |
|
|
Cable Length |
5M |
|
|
Working Temperature |
-40℃~﹢65℃ |
|
|
Antenna Weight |
0.6kg |
|
|
Size |
Φ190x100mm |
|
|
Antenna Cover Material |
ABS |
|
|
Color |
White |
|
|
Package Size |
90*37*34 / 20pcs |
|
|
Weight |
10KG |
|
