- Name：

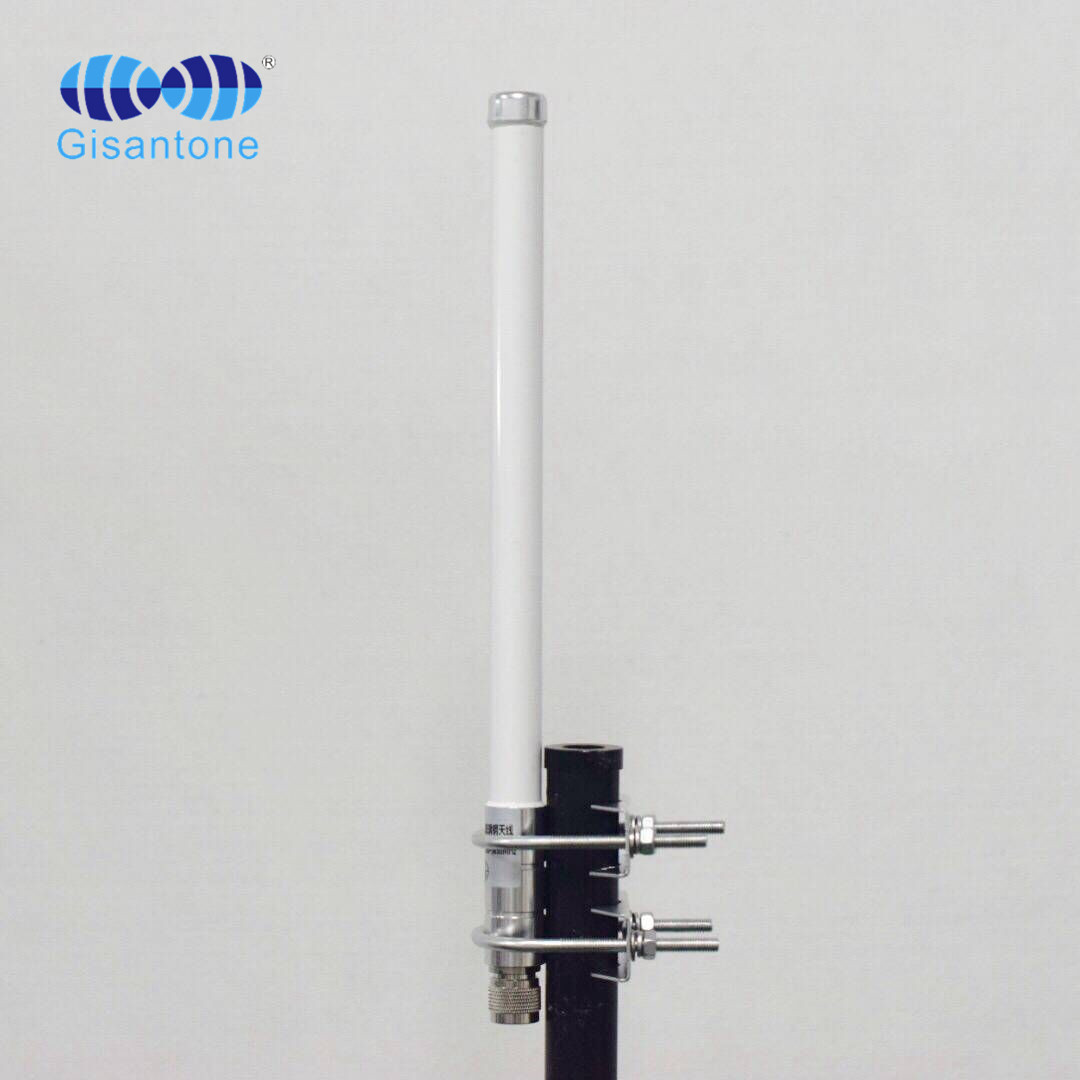

5150-5850MHz 6DBI Fiberglass antenna
- Model No.：
G14325C
- Frequency Range ：
5150-5850MHz
- Cable Length：
6DBI
- Connector：
N male
|
Electrical Specifications |
|
|
Model No. |
G14325C |
|
Frequency Range |
5150-5850MHz |
|
Gain |
6Dbi |
|
VSWR |
≤2.0 |
|
Input Impedance |
50Ω |
|
Polarization |
Vertical |
|
Horizontal Half Power Angle |
360° |
|
Vertical Half Power Angle |
32° |
|
Front to Back Ratio |
≥15dB |
|
Max Input Power |
50W |
|
Lightning Protection |
DC Ground |
|
Mechanical Specifications |
|
|
Connector Type |
N male |
|
Working Temperature |
-40℃~﹢65℃ |
|
Antenna Weight |
260g |
|
Pole Diameter |
Φ35~φ55mm |
|
Size |
Φ20*380mm |
|
Rated Wind Velocity |
210km/h |
|
Cover Material |
Fiberglass |
|
Color |
White |
5150-5850MHz 6DBI Fiberglass antenna
