- Name：

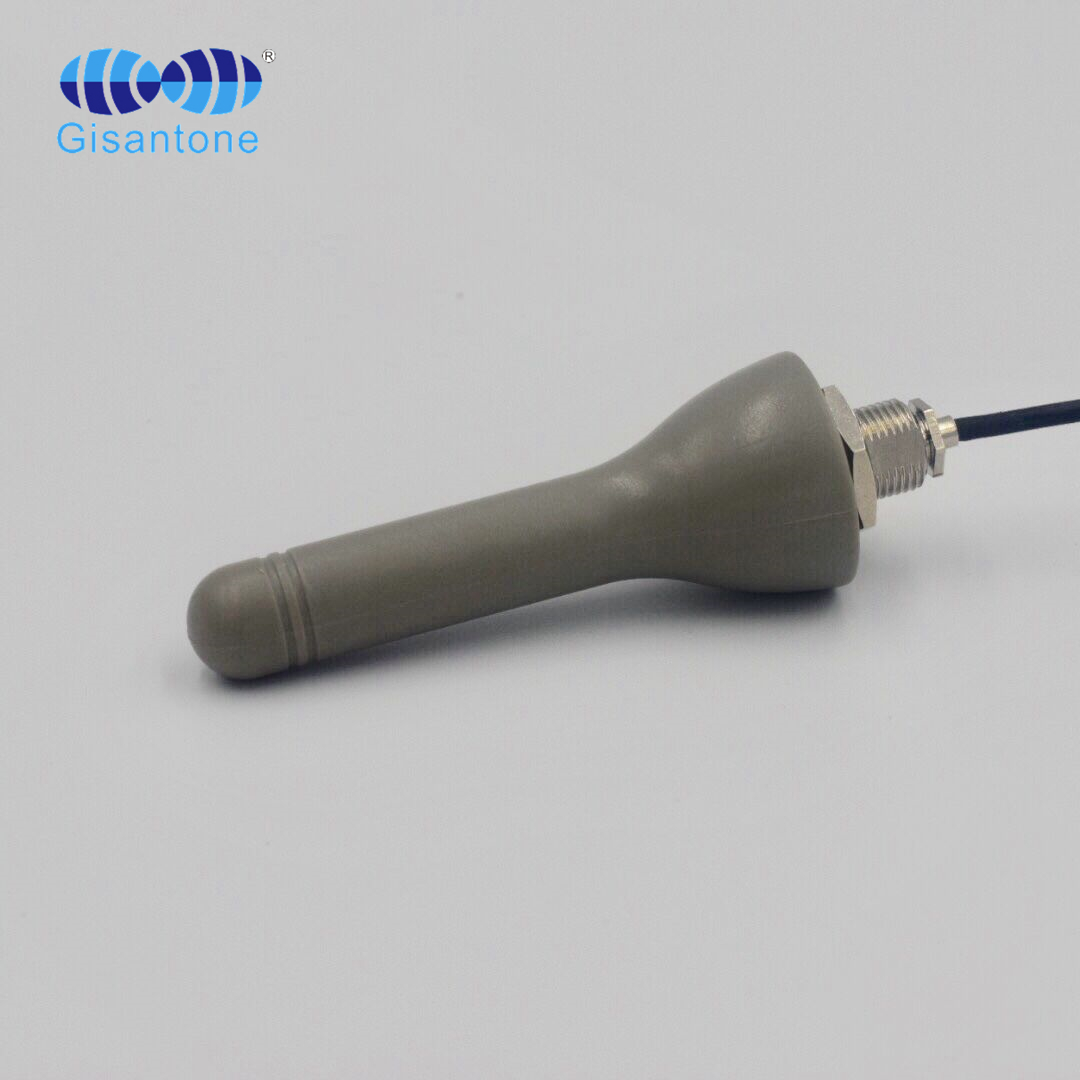

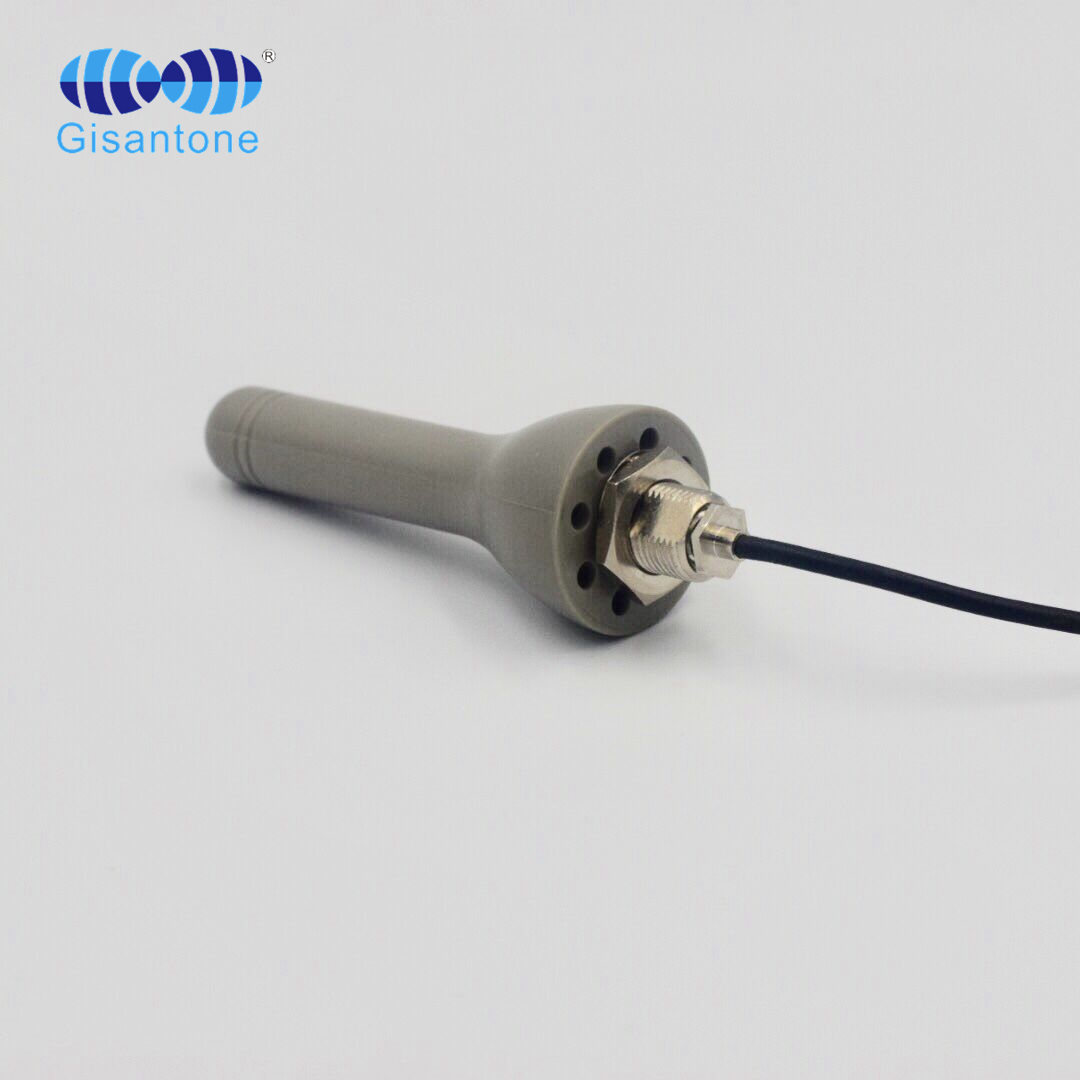

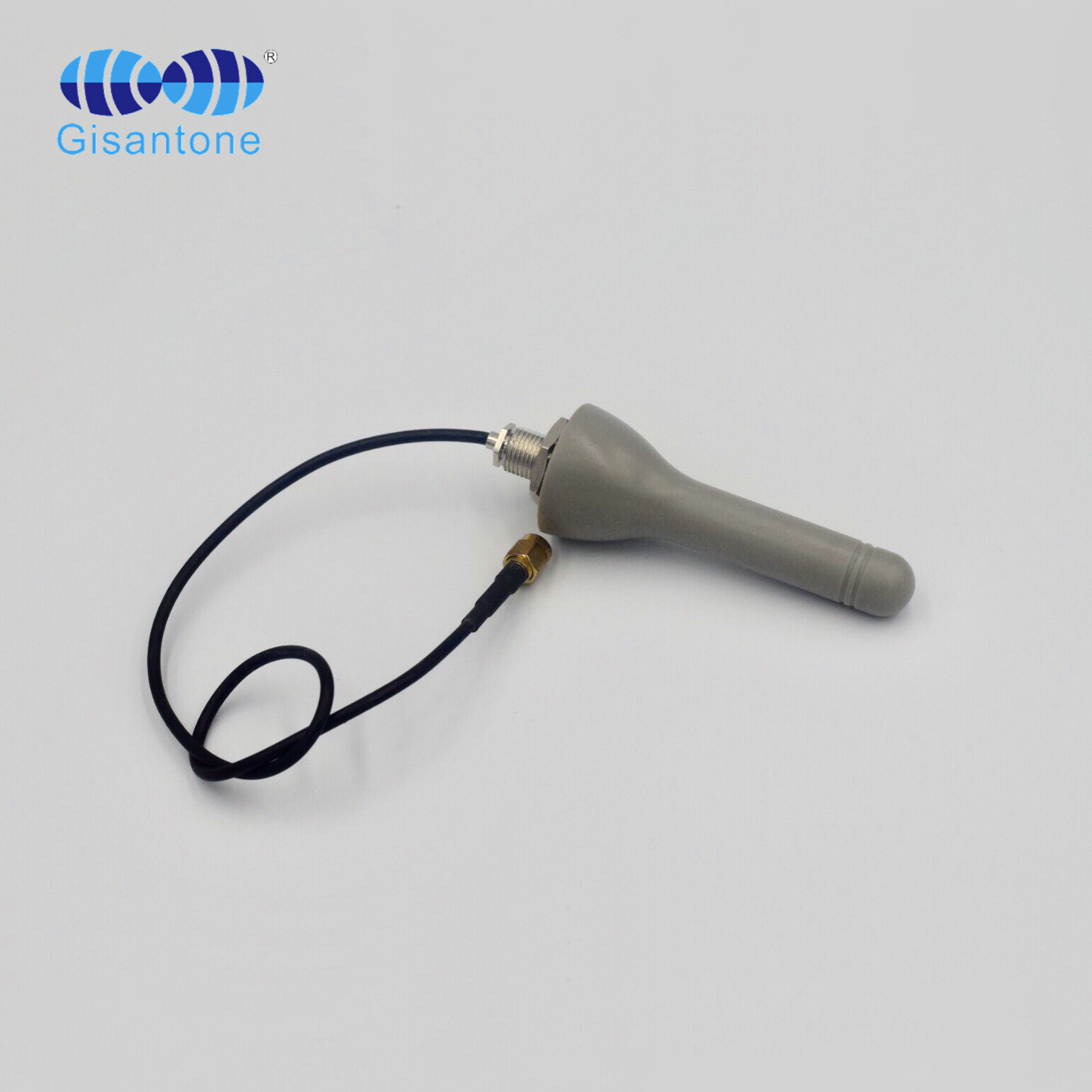

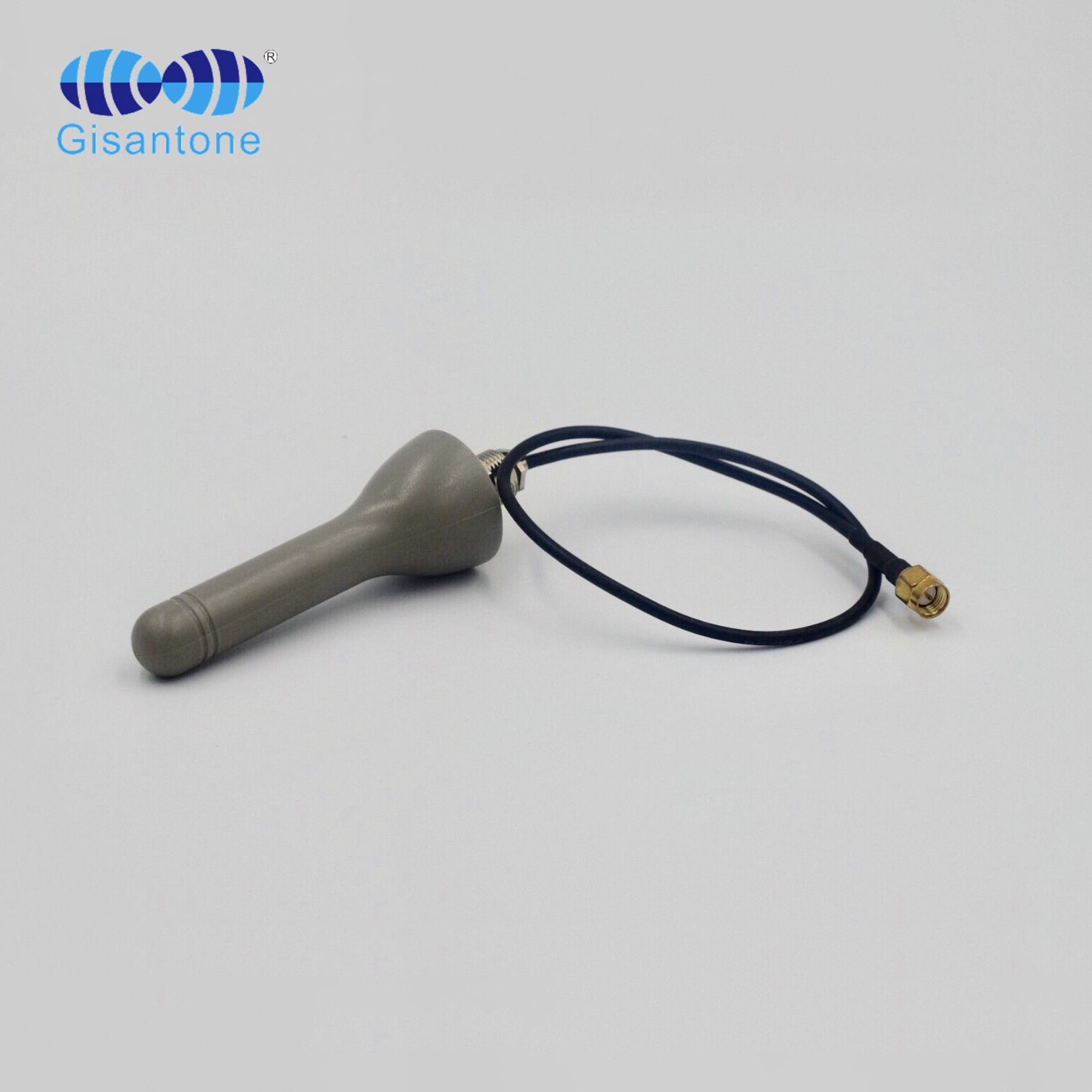

806/2700MHz 5DBI antenna
- Model No.：
G15564B
- Frequency Range ：
806-960/1710-2700MHz
- Gain：
5DBI
- Cable Length：
30CM RG174
- Connector：
SMA male
|
Electrical Specifications |
||
|
Model NO. |
G15564B |
|
|
Frequency Range |
806-960/1710-2700MHz |
|
|
Gain |
5dBi |
|
|
VSWR |
≤1.5 |
|
|
Input Impedance |
50Ω |
|
|
Polarization |
Vertical |
|
|
Horizontal Half Power Angle |
360° |
|
|
Vertical Half Power Angle |
100° |
50° |
|
Max Input Power |
50W |
|
|
Lightning Protection |
DC Ground |
|
|
Mechanical Specifications |
||
|
Connector Type |
SMA male |
|
|
Cable Type |
RG174 Black |
|
|
Cable Length |
30CM |
|
|
Working Temperature |
-40℃~﹢65℃ |
|
|
Antenna Weight |
39g |
|
|
Size |
Φ30x(100±0.5)mm |
|
|
Color |
Black |
|
806/2700MHz 5DBI antenna
