- Name：

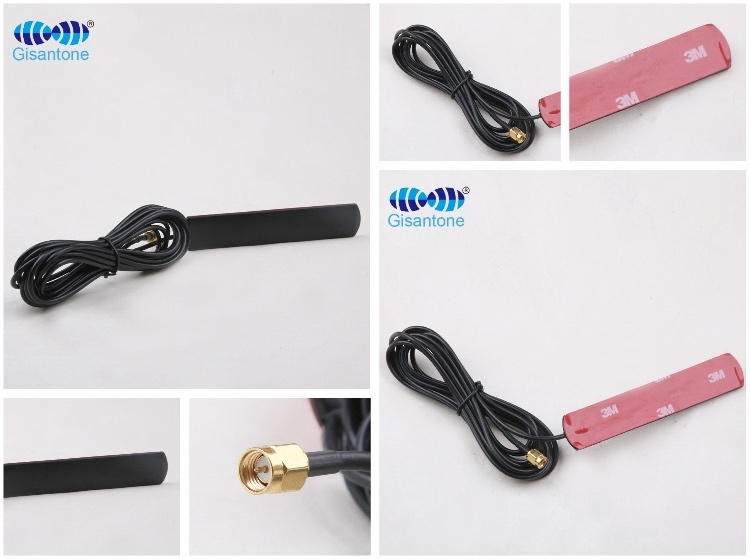

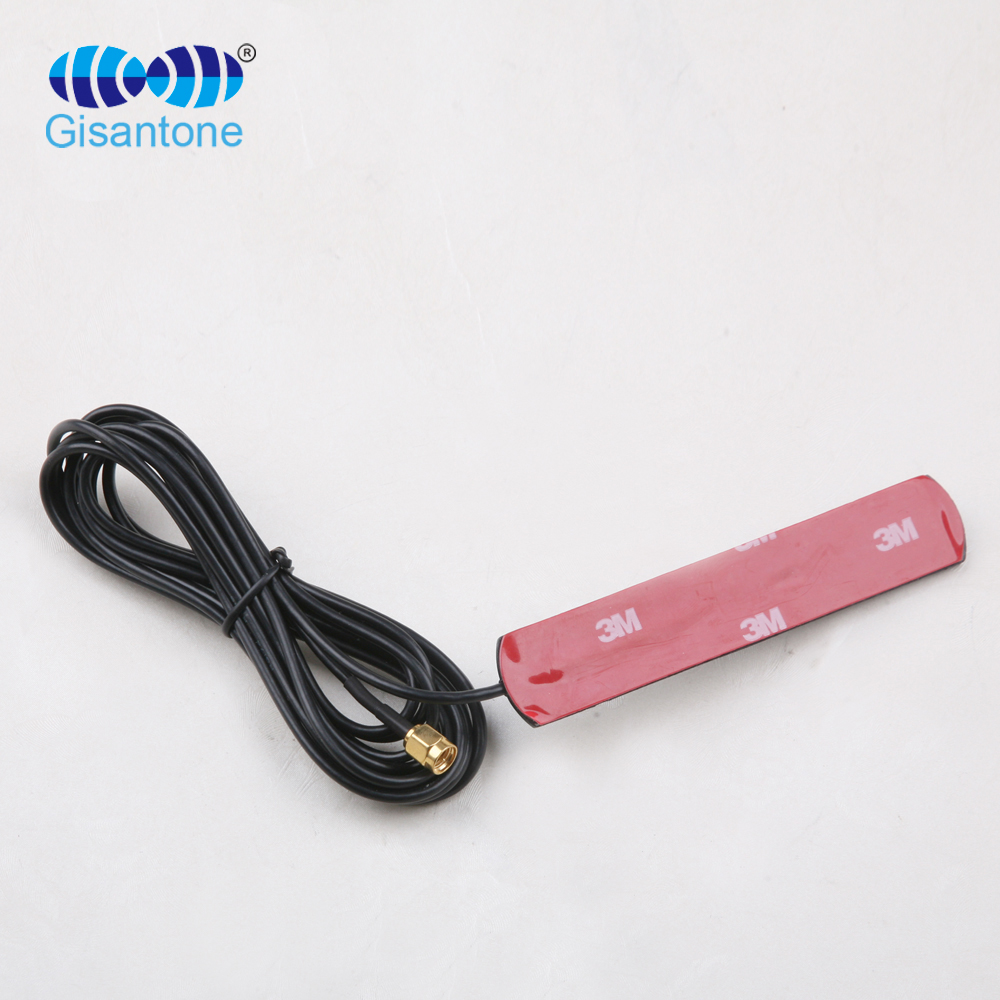

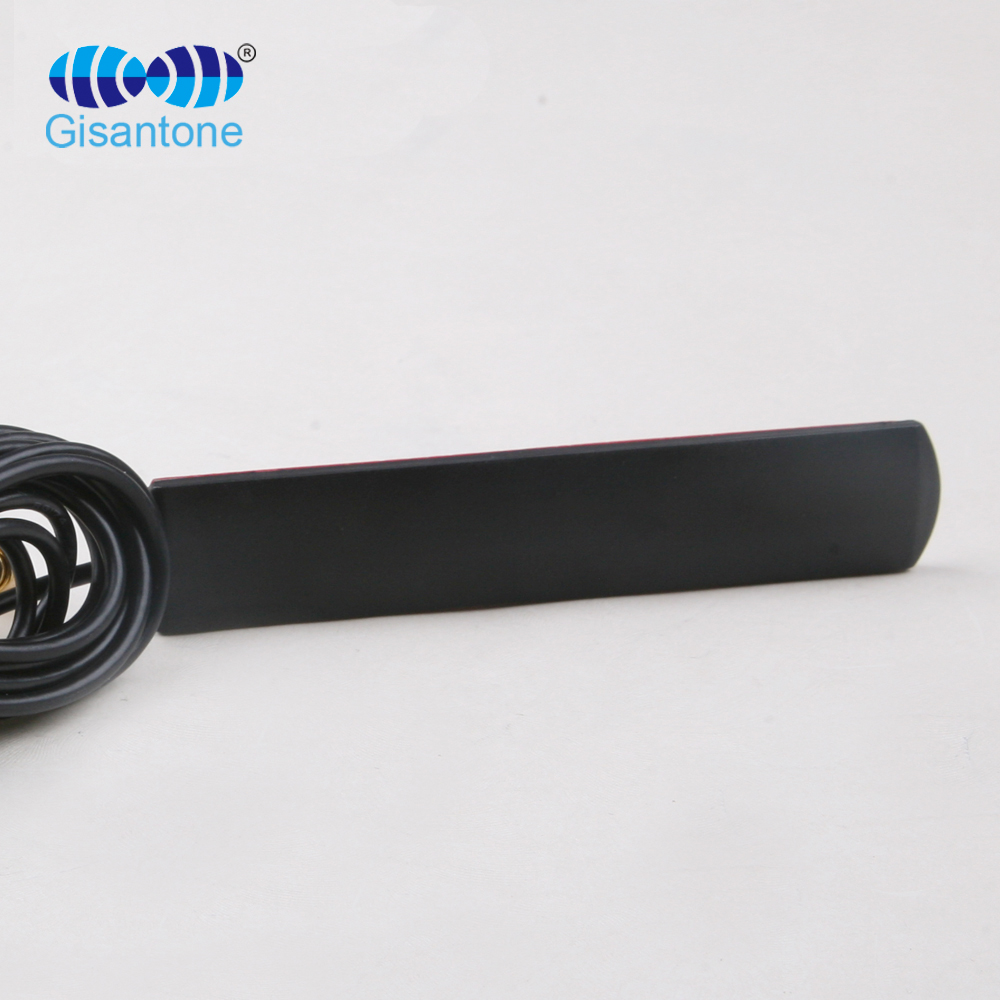

824/2100MHz 3DBI Omni antenna
- Model No.：
G19002A
- Frequency Range ：
824-960/1770-1980/2100MHz
- Gain：
3DBI
- Cable Length：
3M RG174
- Connector：
SMA male
|
Electrical Specifications |
||
|
Model NO. |
G19002A |
|
|
Frequency Range |
824-960/1770-1980/2100MHz |
|
|
Gain |
3dBi |
|
|
VSWR |
≤1.5 |
|
|
Input Impedance |
50Ω |
|
|
Polarization |
Vertical |
|
|
Horizontal Half Power Angle |
360° |
|
|
Vertical Half Power Angle |
100° |
50° |
|
Max Input Power |
50W |
|
|
Lightning Protection |
DC Ground |
|
|
Mechanical Specifications |
||
|

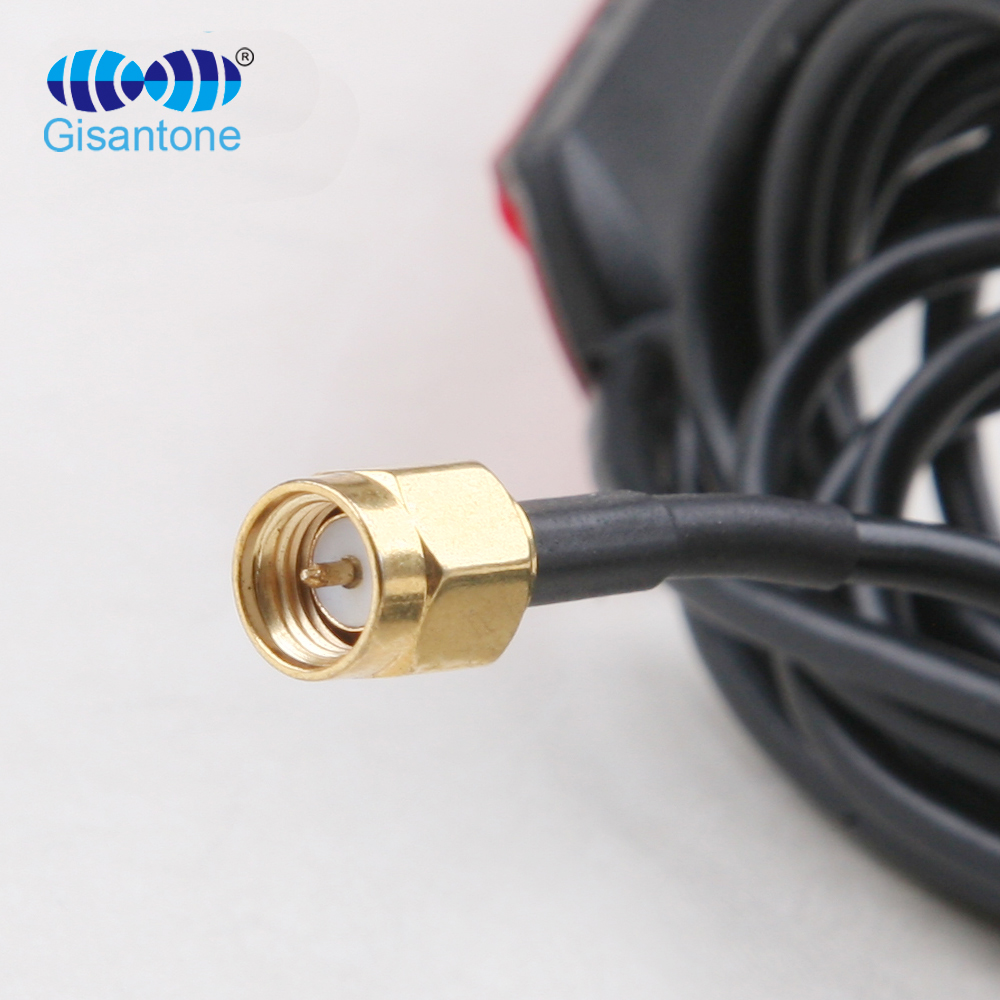

Connector Type |
SMA-male |
|
|
Cable Type |
RG174 Black |
|
|
Cable Length |
3M |
|
|
Working Temperature |
-40℃~﹢65℃ |
|
|
Antenna Weight |
0.45g |
|
|
Size |
115x22x5mm |
|
|
Color |
Black |
|
824/2100MHz 3DBI Omni antenna
