- Name：

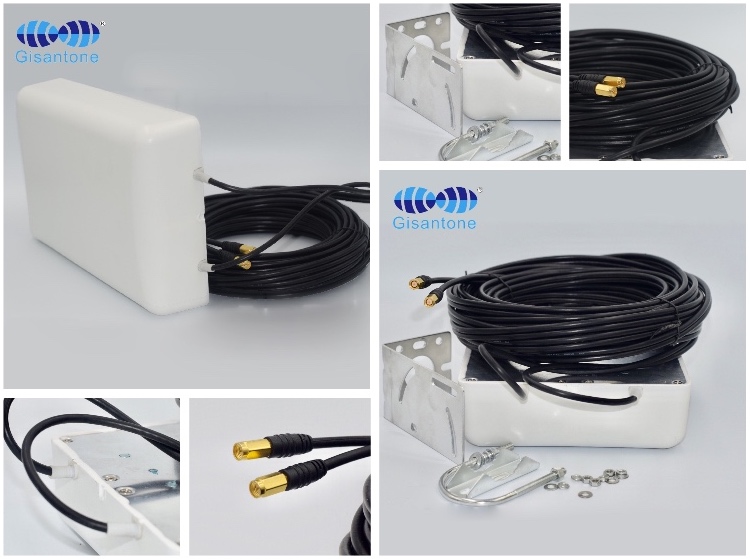

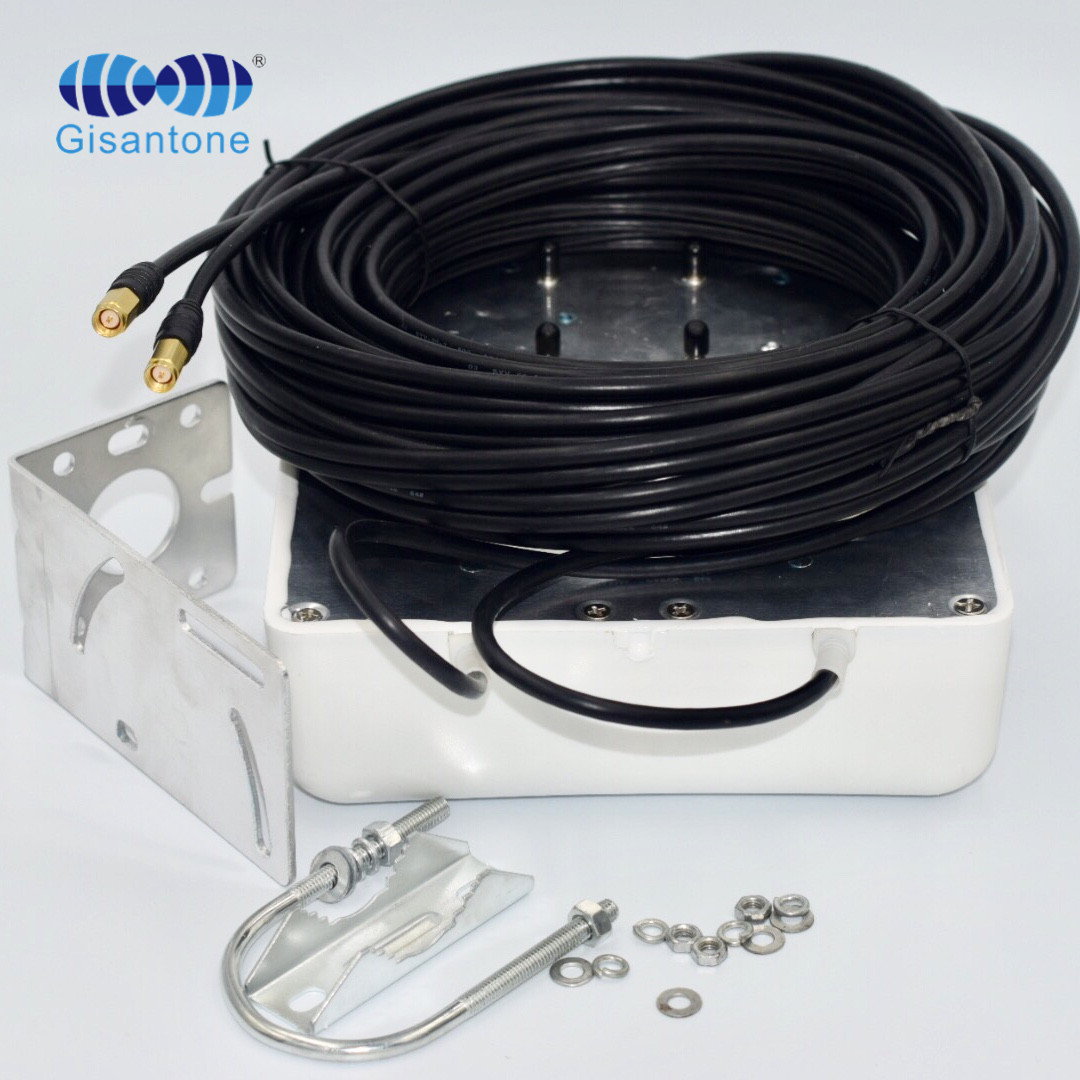

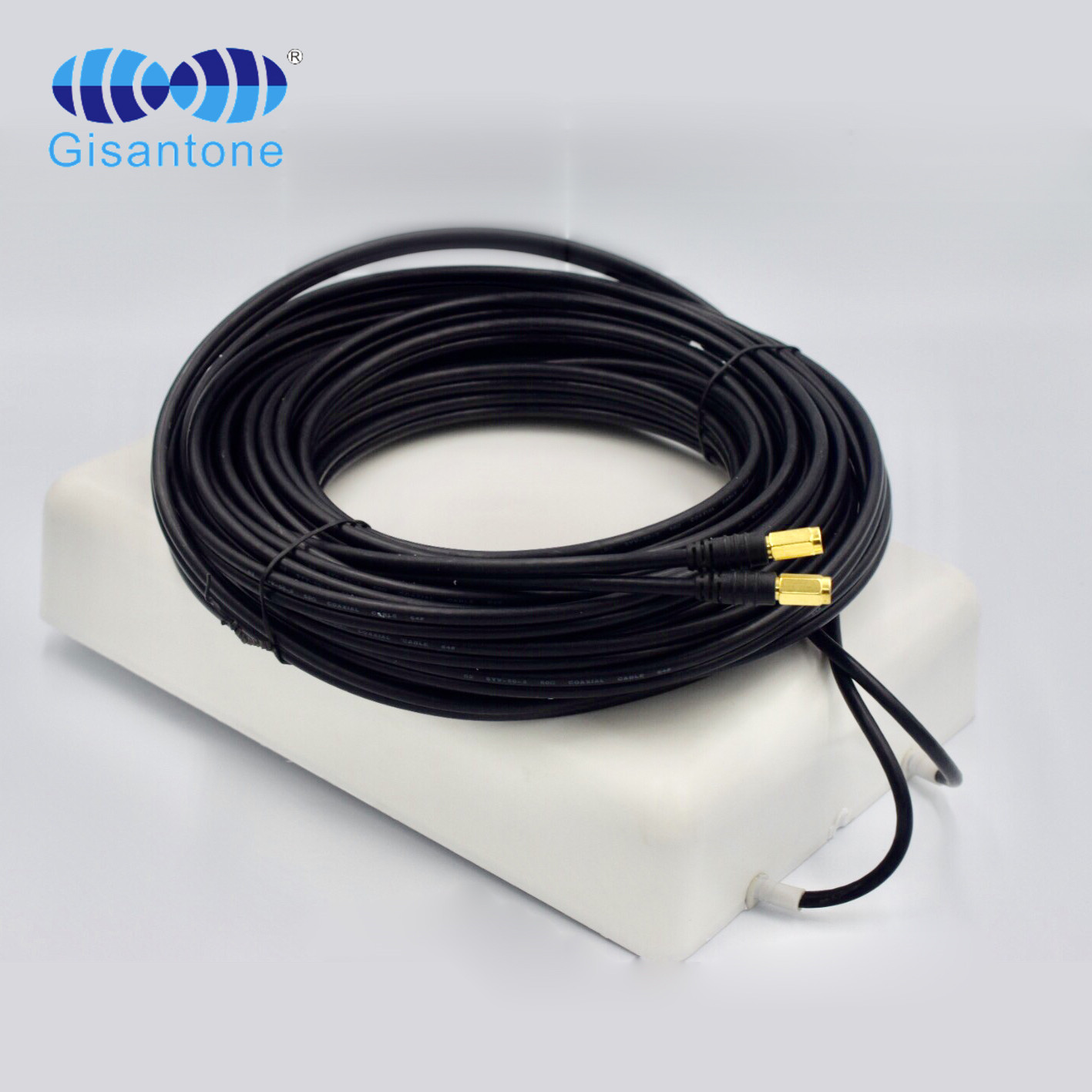

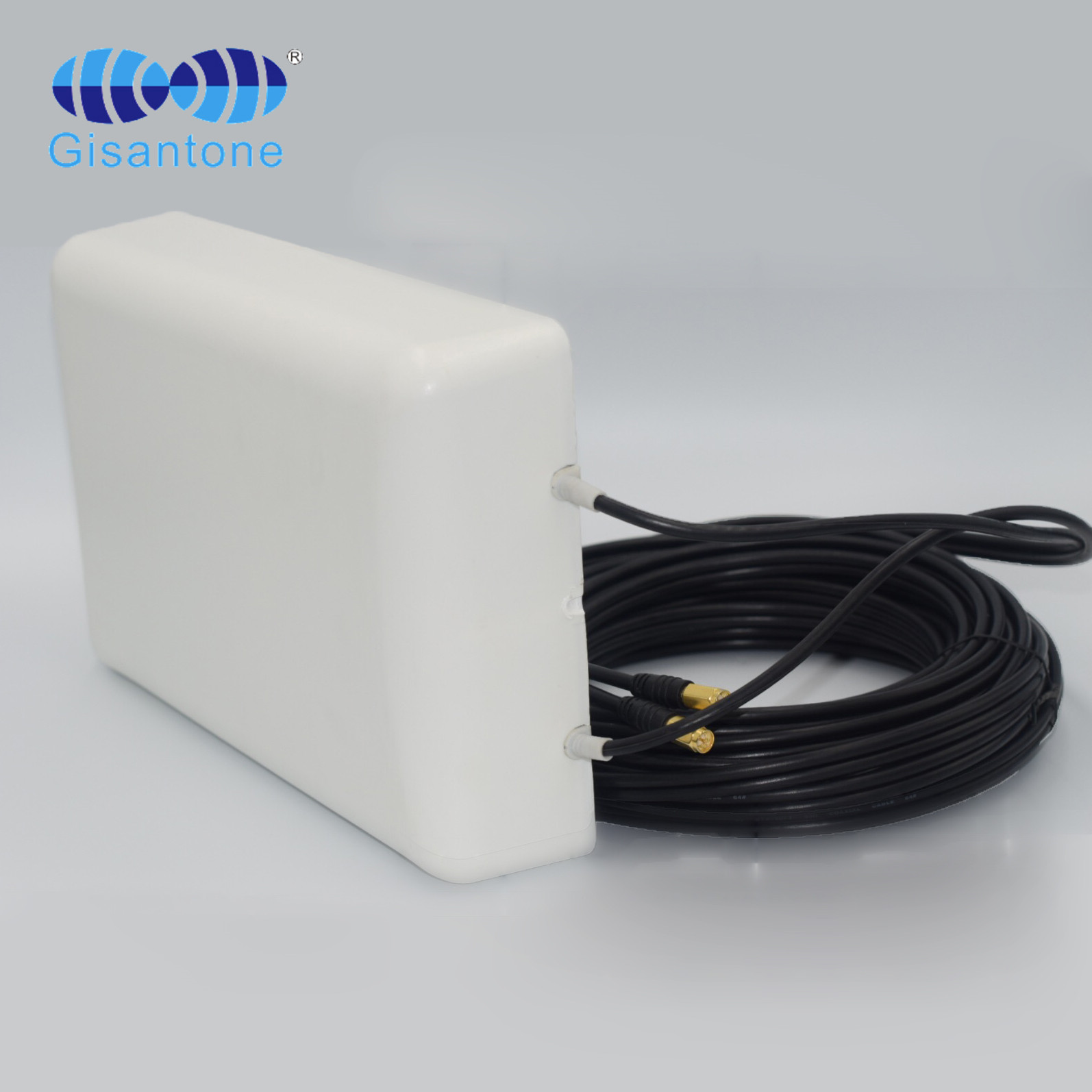

698/2700MHz 8DBi MIMO panel antenna
- Model No.：
G11509J
- Frequency Range ：
698-960/1710-2700MHz
- Gain：
2*7/8DBI
- Cable Length：
2*15M RG58U
- Connector：
2*SMA male
|
Electrical Specifications |
||
|
Model No. |
G11509J |
|
|
Frequency Range |
698-960MHz |
1710-2700MHz |
|
Gain |
7Dbi |
8Dbi |
|
VSWR |
≤1.5 |
|
|
Input Impedance |
50Ω |
|
|
Polarization |
±45° |
|
|
Front to Back Ratio |
≥12dB |
≥20dB |
|
Horizontal Half Power Angle |
75° |
65°±8 |
|
Vertical Half Power Angle |
70° |
60°±5 |
|
Max Input Power |
50W |
|
|
Lightning Protection |
DC Ground |
|
|
Mechanical Specifications |
||
|
Connector Type |
2*SMA male |
|
|
Cable Type |
2*RG58U Black |
|
|
Cable Length |
2*15M |
|
|
Working Temperature |
-40℃~﹢65℃ |
|
|
Antenna Weight |
1.7kg |
|
|

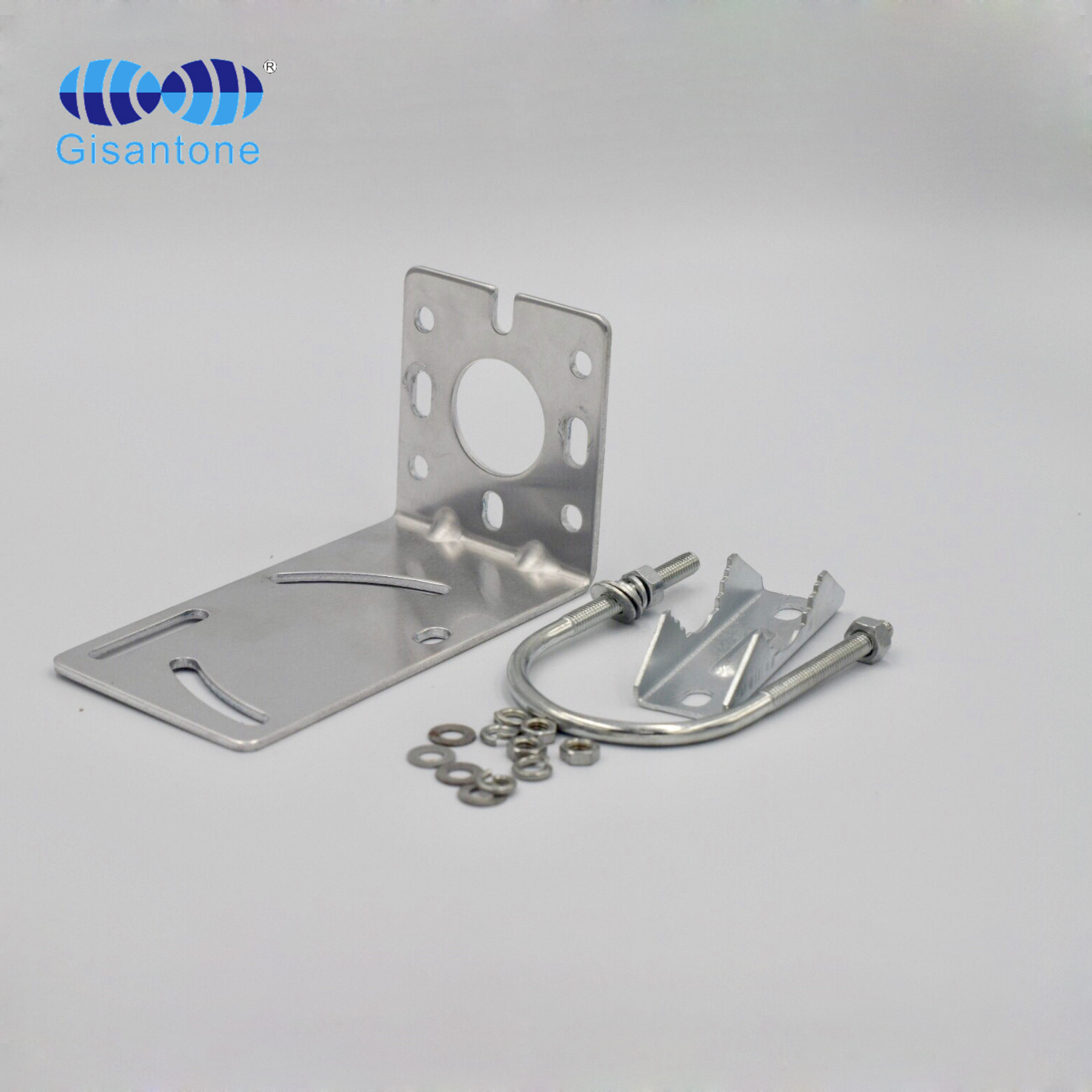

Pole Diameter |
Φ35~φ55mm |
|
|
Size |
280*180*60mm |
|
|
Rated Wind Velocity |
210km/h |
|
|
Antenna cover material |
ABS |
|
698/2700MHz 8DBi MIMO panel antenna
