- Name：

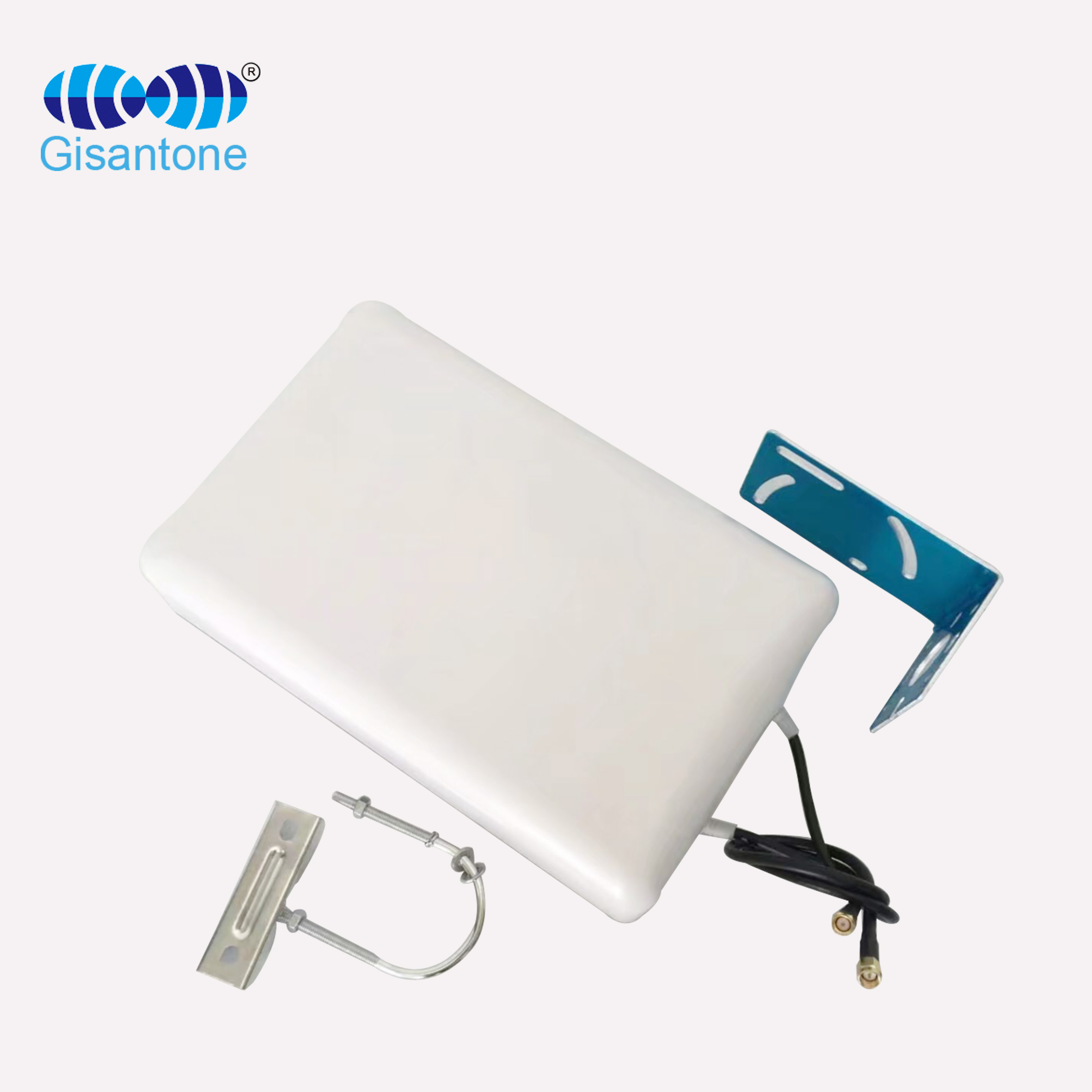

1710-2700MHz 8DBI MIMO panel antenna
- Model No.：
G11216A
- Frequency Range ：
1710-2700MHz
- Gain：
2*8DBi
- Cable Length：
2*30CM RG58U

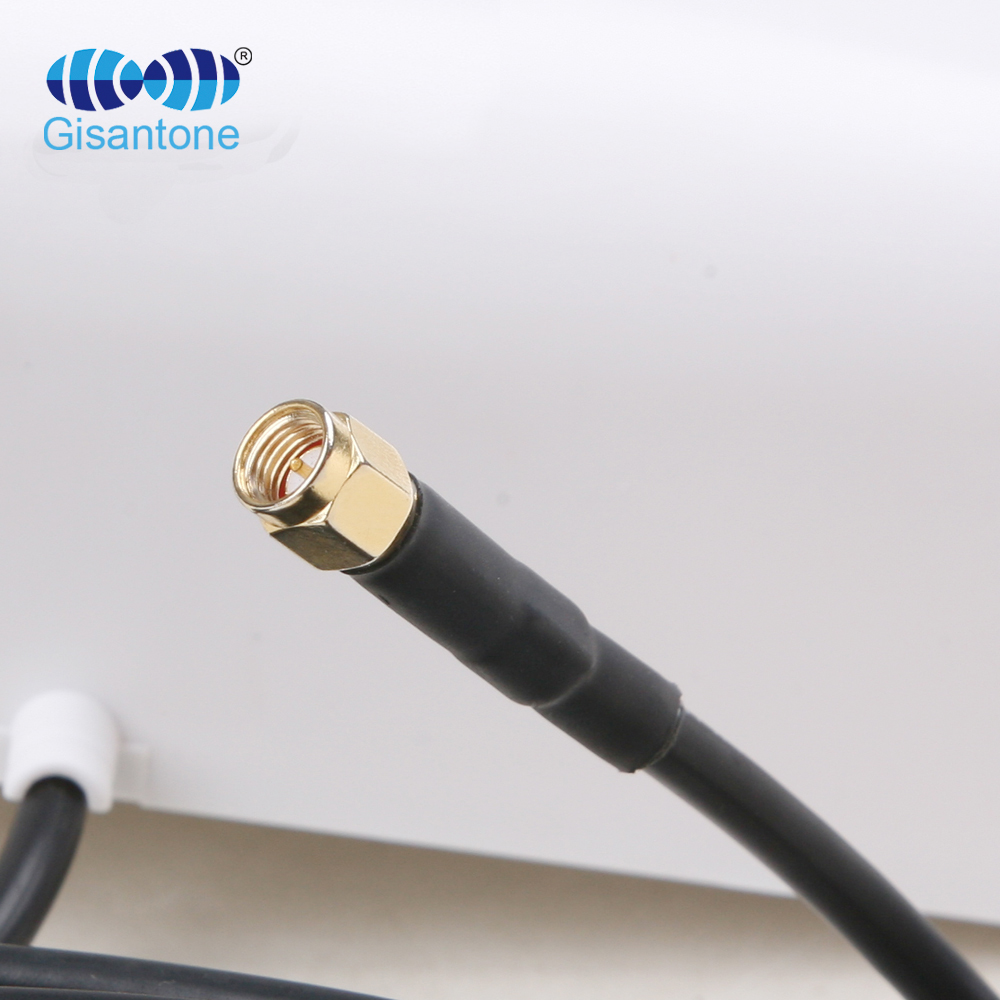

- Connector：
2*SMA male
|
Electrical Specifications |
|
|
Model No. |
G11216A |
|
Frequency Range |
1710-2700MHz |
|
Gain |
2*8Dbi |
|
VSWR |
≤2.0 |
|
Input Impedance |
50Ω |
|
Polarization |
± 450 |
|
Front to Back Ratio |
≥23dB |
|
Isolation |
≥-28dB |
|
Horizontal Half Power Angle |
90°±5 |
|
Vertical Half Power Angle |
75°±2 |
|
Max Input Power |
50W |
|
Lightning Protection |
DC Ground |
|
Mechanical Specifications |
|
|
Connector Type |
2*SMA male |
|
Cable Type |
RG58/U |
|
Cable Length |
0.3M |
|
Working Temperature |
-40℃~﹢65℃ |
|
Antenna Weight |
1kg |
|

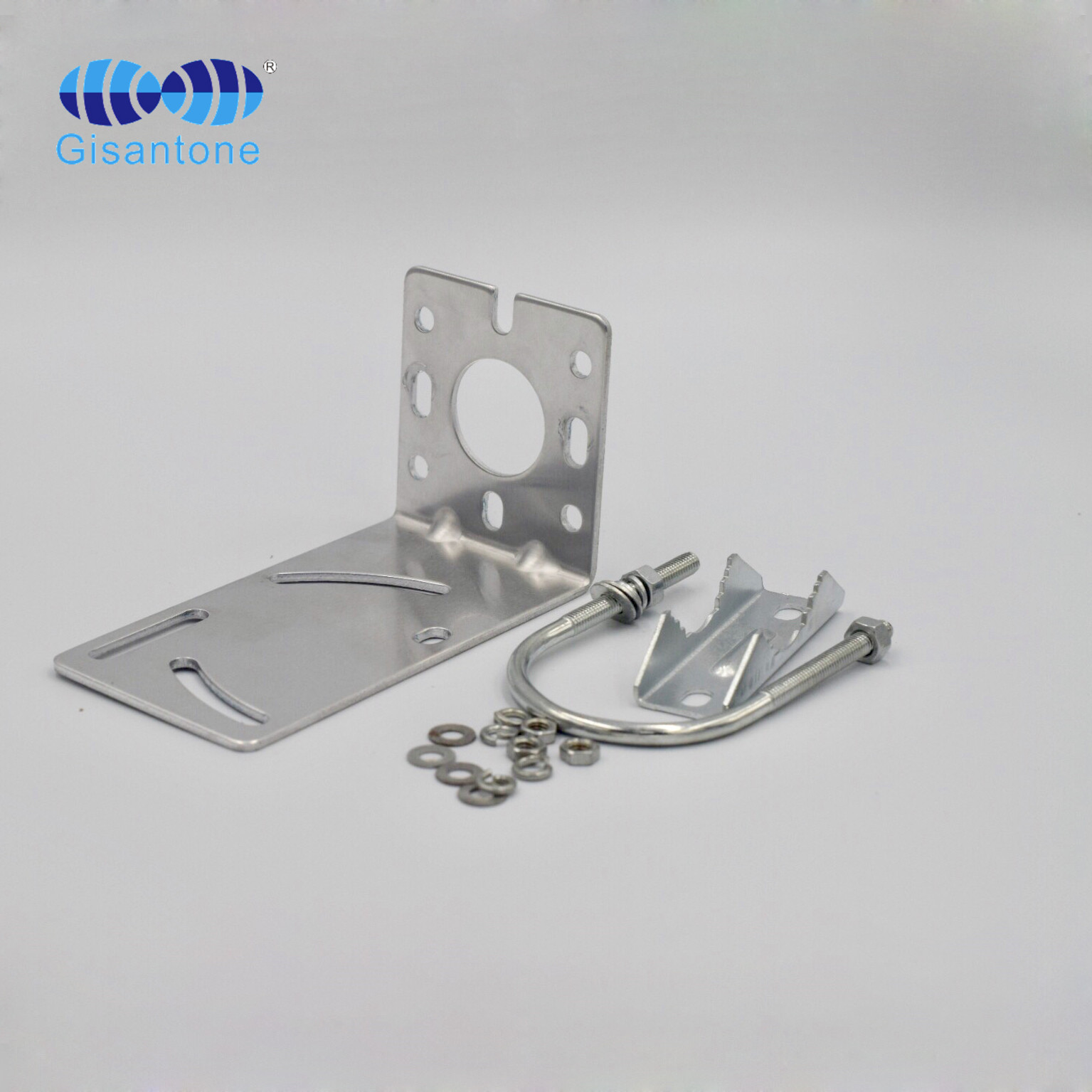

Pole Diameter |
Φ35~φ55mm |
|
Size |
280*180*60mm |
|
Rated Wind Velocity |
210km/h |
|
Antenna cover material |
ABS |
1710-2700MHz 8DBI MIMO panel antenna
